Description

   AT A GLANCE

• Fast comminution with rotational speeds up to 900 rpm
• Loss-free grinding even below 1 μm
• Uniform fine comminution of large sample amounts
• Simple, ergonomic handling and easy cleaning
• Grinding jars and balls in 10 different materials to suit all needs and avoidance of contamination through abrasion

  IDEAL FOR

• Geology and Mineralogy
• Ceramics
• Chemistry
• Biology
• Pharmaceuticals
• Metallurgy
• Material Technology
• Sample Preparation For Analysis

Overview

Ideal for large quantities

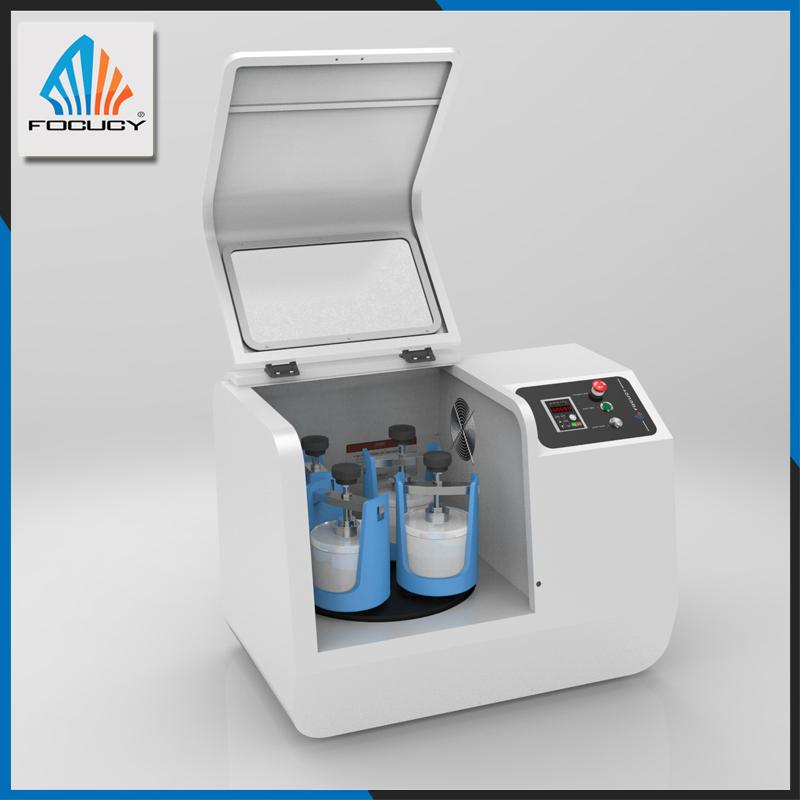

      The Planetary Mill F-P2000 with 4 working stations delivers fast and reliable, due to the particularly high-energy effect of the grinding balls, loss-free grinding results of hard, medium-hard, soft, brittle, tough and moist materials down to colloidal fineness. Depending on the desired final fineness, can the grinding be performed dry, in suspension or in inert gas.

      Besides for comminution, the Planetary Mill can be utilized for mixing and homogenizing of emulsions and pastes or for mechanical activation and alloying in material research. The fixed transmission ratio, rotational speed regulation and precision quartz timing ensure exactly reproducible grinding conditions.

Working Principle

Comminution according to the Planetary Principle

      The comminution of the material to be ground takes place primarily through the high-energy impact of grinding balls. To achieve this, the grinding jar, containing the material to be ground and grinding balls, rotates around its own axis on a main disk whilst rotating rapidly in the opposite direction. At a certain speed, the centrifugal force causes the ground sample material and grinding balls to separate from the inner wall of the grinding jar. The grinding balls then cross the jar at high speed and further grind the sample material by impact against the opposite jar wall. In addition, impact between the balls themselves on the sample material adds to the size reduction process.

      The instrument can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron.

Features of Planetary Ball Mills

• Grinding chamber with LED lighting
• Elegant design, easy to operate
• Ideal for wet or dry grinding application
• Automatic and programmable control with LED display
• Multiple grinding modes to choose
• High Uniformity and excellent repeatability
• Fast rotational speed, high efficiency and fine granularity
• Digital display of the actual rotational speed of the grinding jar
• Four samples with different sizes and materials in one experiment
• Programmable interval and pause times
• Stepless speed regulation, reversing function
• Large range of materials available for grinding tools
• Smaller grinding jars also possible with an adapter
• Gear-drive offers an effective solution to problems caused by belt driving
• Grinding chamber with forced air ventilation

Technical Data

Optimal for material type:

medium-hard, soft, brittle, tough, moist

Item No.:

F-P2000

Max. feed size (depends on material):

10mm

Final fineness (depends on material):

<100nm

Min. sample quantity:

10ml

Max. sample quantity:

900ml

Rotational speed (disk):

50-400r/min

Rotational speed (jars):

100-800r/min

Transmission ratio (disk / jars):

1:-2

Transmission standard:

CE

Grinding modes:

16 modes programmable

Grinding tools:

grinding jars and grinding balls

Bi-direction grinding:

yes

Continuously grinding

00:01:00 - 99:59:59

Paused interval:

00:01:00 - 99:59:59

Emergency stop:

yes

Power off memory:

yes

Overload protection

Yes

Milling chamber lighting:

automatic LED lighting, 220V, 18W

Number of milling samples:

4 simultaneously

Materials of the grinding jars:

SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC

Number of working stations:

4

Ball mill type:

vertical

Compatible grinding jars:

100ml / 250ml / 500ml

Materials of milling balls:

SS, agate, zirconia, alumina, nylon, PTFE

Grinding ball diameter:

3/5/10/15/20mm

Compatibal ball weight

200-1000g

Grinding process:

dry /wet grinding

Vacuum grinding:

yes

Low temperature grinding:

yes

Grinding in inert gas:

yes

Temperature detection:

yes ( special accessories)

Pressure detection:

yes ( special accessories)

Electrical details:

100-120V/200-240V AC ,50-60Hz, 750W

Plug types:

GB/EU/US/UK standard

Net weight:

92kg

Dimensions (W x D x H):

720*480*500mm

Noise level:

50dB

IP rank:

IP60

Product standard:

CE

Patent:

design patent/ noise improve patent

Accessories:

user manual, warranty card

Photo Gallery of Planetary Ball Mills

Material Data of Grinding Tools

Material

Main component

Density (g/cm3)

Abrasion resistance

Use for material to be ground

Agate

SiO2

2.65

Good

Soft to medium-hard samples

Sintered corundum

Al2O3

3.8

Fairly good

Medium-hard, fibrous samples

Silicon nitride

Si3N4

3.25

Excellent

Abrasive samples, iron-free milling

Zirconium oxide

ZrO2

5.7

Very good

Fibrous, abrasive samples

Stainless steel

Fe –Cr –Ni

7.8

Fairly good

Medium-hard, brittle samples

Tempered steel

Fe –Cr

7.65

Good

Hard, brittle samples

Tungsten carbide

WC

14.95

Very good

Hard, abrasive samples

Polypropylene disposable jar

MC/PA/PTFE/PU/HDPE/PP

**

Good

For homogenisation

Please note: For the Planetary Mill, you require at least 4 grinding jar of your choice and the corresponding number of grinding balls. The grinding jar material must also be harder than the material to be ground. In normal cases, grinding jars and balls of the same material are used. To shorten the grinding time, larger or heavier grinding jars and grinding balls with a higher density and correspondingly higher impact energy can be used. Please take note of the useful capacity, this is not identical with the jar volume!
