HSZ Manual Type Chain Block

Model:-
Brand:LieDiao
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Chain
Label:Hsz Chain Hoist , Chain Block , Chain Hoist
Price: US $100 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Quick Information

  • Brand Name:LieDiao
  • Place of Origin:China

Description

Details

HSZ type chain hoist/block is a widely used manual hoisting machinery, which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. Chain hoist can also be used in installing of machinery, lifting, loading and unloading in warehouse, especially suitable to be used in the open air and the place without power source.  We manufacture the products in accordance with national standard and it designs reasonable, dainty material, advanced structure, beautiful appearance, small volume, light weight, big component strength, high toughness, safety and durability. The product has been selling well both at home and abroad.
It can compete with well known brand all over the world.


Features

1.Shell: Cast iron material
2.80 Grade chain: Produced by high strength Manganese steel, strong and not easy to break. Blacken by special treatment, which can prevent the chain rusting and prolong the longevity. Customers can order G 80 or G 100 according to different requirements.
3.Hook:2.0 Manganese Hook: Forged , sprayed and heat treatment ensures the beautiful appearance and durable. Insurance part can protect the cargo firmly and more powerful. Alloy steel hook is forged and heat treatment, safety factor 4:1, if overload, the hook will not break brittlely.
4.Gear:High quality gear after heat treatment.
5.Plastic plating: adopt international advanced plastic plating technology inside and outside, it looks like a new one after years of operation.
6.High efficiency, small hand pulling force. Lift heavy objects with small power.
7.Capacity: normal ranges from 0.5-20T, we also can produce 30T, 50T according to your requirements.

Specification


model HSZ-1/2 HSZ-1 HSZ-2 HSZ-3 HSZ-5 HSZ-10 HSZ-20 HSZ-30 HSZ-50
Capacity(t) 0.5 1 2 3 5 10 20 30 50
Standard Lift Height(m) 2.5 2.5 2.5 3 3 3 3 3 3
Running test load 0.75 1.5 3 4.5 7.5 12.5 25 375 625
The minimum distance
between two hooks(mm)
270 270 444 486 616 700 1000 980 1300
Pull to lift-full load(n) 225 309 314 343 383 392 392 450×2 450×2
NO.Of load chain(mm) 1 1 2 2 2 4 8 12 22
Load chain diameter(mm) 6 6 6 8 10 10 10 10 10
Dimensions(mm) A 120 142 142 178 210 358 580 330 410
B 108 122 122 139 162 162 189 670 965
C 24 28 34 38 48 64 82 1000 1950
D 120 142 142 178 210 210 210 84 130
Net weight(kg) 9.5 10 14 24 36 68 155 220 1085
Gross Weight(kg) 12 13 17 28 45 83 193 250  1100
Packing size
(L*W*H)cm
28×21
×17
30×24
×18
33×25
×19
38×30
×20
45×35
×24
62×50
×28
70×46
×75

Extra weight per meter
of extra (kg)
1.7 1.7 2.5 3.7 5.3 9.7 19.4 28.3 50





Certificates

  • CE :0141

Price

  • Price Condition :FOB
  • Price :USD100 / set
  • Delivery Port :Tianjin

Packaging & Delivery

  • Packing :By carton box or Wooden box according to different
  • Delivery Lead Time :3-7 working days according to different quantities
  • Minimum Order :1 set
  • Supply Ability :2000sets/weeks

Product Image

  • HSZ Manual Type Chain Block image

Payment Terms:TT/ LC

Product Image

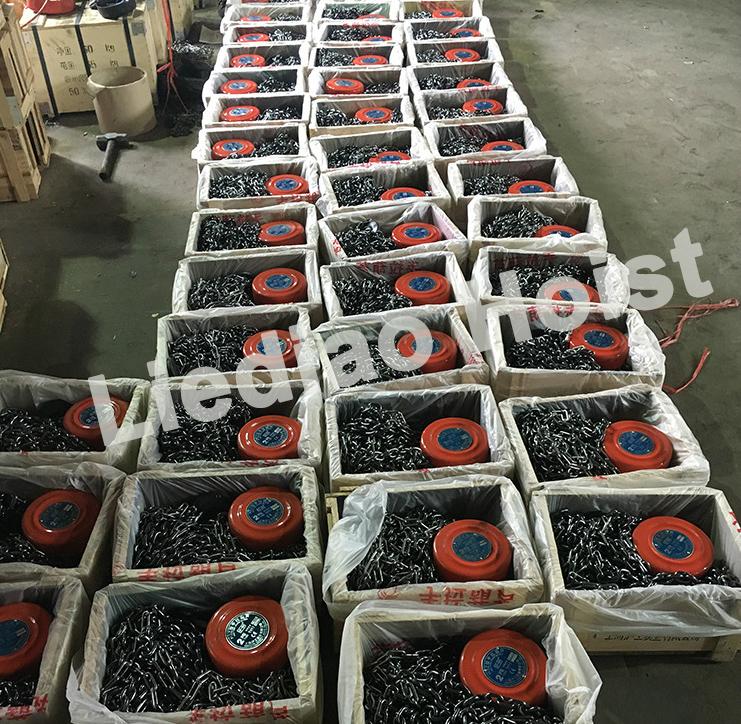

HSZ Manual Type Chain Block 1
Img 1
HSZ Manual Type Chain Block 2
Img 2
HSZ Manual Type Chain Block 3
Img 3
HSZ Manual Type Chain Block 4
Img 4
