Anode Assembly for Electrolytic aluminum workshop

Model:joda
Brand:joda
Origin:Made In China
Category:Industrial Supplies / Metallurgy Machinery
Label:Anode Assembly , Bimetal clad , Anode Yoke
Price: US $163 / set
Min. Order:100 set
Inquire Now

Member Information

Detail

Product Description

Descriptions

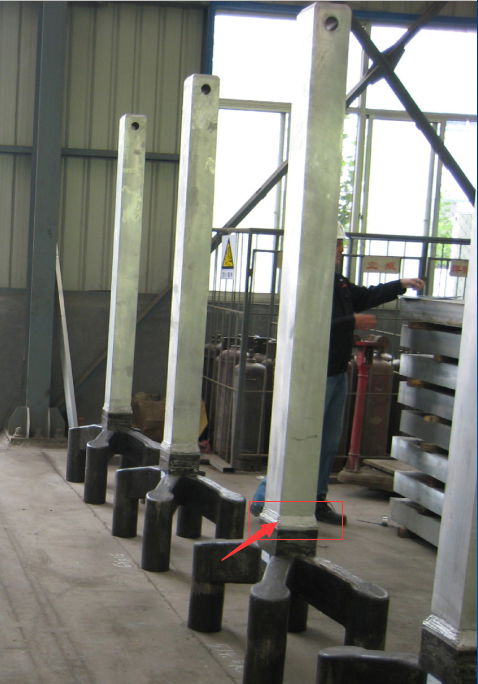

Anode Assembly is also referred to as hanger, it is assembled by welding with 1. aluminium stem (Rod) and 2. Steel Bracket (yoke) with 3. an electrical transition joint (also refered to as a clad) in between. Anode assemblies are subject to high terminal and mechanical loads, it is therefore of utmost importance that all welds, particulartly the aluminium –aluminium welds are carried out with extreme care.

cut bimetal

production bimetal

Quality Control:

All welding will be performed in indoor workshop. Alignment, jigging and welding sequence will be carefully prepared to minimize distortion and residual stress. All butt welds are full penetration welds.
Color changing paint/thermocouple/temperature test pen are used to strictly control the aximum temperature under 350℃ at the interface to avoid the formation of brittle intermetallic compounds that could reduce the clad quality.
The welds complies with Class C in standard EN 10042 for the aluminium part and Class C in standard EN 5817 for the steel parts.



Technical Parameter:

Material

Al Rod

Clad

Steel Yoke

1050,1060 1070,4043,6063

Al 1050/1060

Steel Q235B or per Buyer’s Requirement

Low Carbon Steel

Process

Welding (Al-Al welding between Al Rod and Clad, Fe-Fe Welding between Clad and Steel Yoke)

NDE Test

UT, MT, PT

Temperature Control

Color-Changing Paint and Thermalcouple

Packing

Wooden Case aluminium rod packed with air-bubble film

Shipment

By Container

anode stub & bimetal & anode yoke

welding bimetal

Features:

  • Excellent Conductivity
  • Top Welding Quality
  • 100% NDE Tested
  • Safe and Reliable
  • Products Exported to Europe

Application:

anode assembly anode stub & bimetal & anode yokeanode assembly anode stub & bimetal & anode yoke applicationanode assembly anode stub & bimetal & anode yoke worksite
