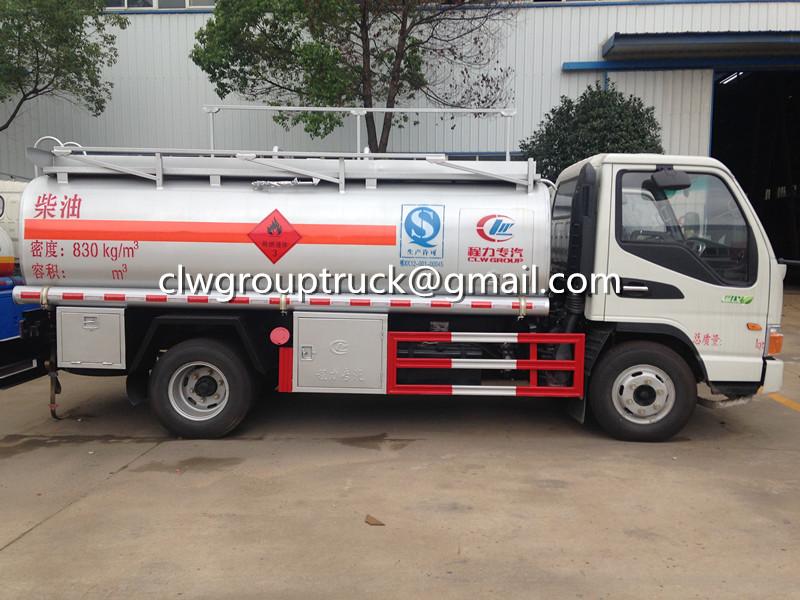

Top Sale JAC 120HP 5000L Fuel Tank Truck


This is a small refueling type fuel tanker truck,the truck fuel storage is 5cbm,with high quality international refueling system.The dimension of the tank is customizable. The color and LOGO of the tank is customizable.
Fuel Tanker is widely used in oil industry for fuel transportation, refueling and storage, etc.
We provide various tanker truck with chassis or tractor like ISUZU,Dongfeng, FAW, Forland, Yuejin, JMC, JAC, Sinotruck, Foton, Beiben, Shacman, Japan Chassis, Germany Chassis, etc.



Main Parameter as bellow:





Chassis Brand JAC. Drive
Type 4X2, LHD/RHD


Load Capacity 5000Litres.  Material Carbon steel 5mm


Tire No. 6+1(spare).   Tire specifications 7.00R16


Transmission 5forward
gear,1 reverse gear, manual mechanical type


Engine Model HFC4DA1-2C.Engine
Manufacturer Jiang Huai Automobile,120HP,Emission Euro 4


Overall dimension
(L*W*H) 5990X1950X2450mm. Wheelbase 3308mm. Axles No. 2 Max speed(km/h) 80


GVW(kg) 4360kg. Curb Weight(kg) 3850kg. Rated Weight(kg) 3380(Kg). Front/Rear Axle Load(kg) 2360/5000


Leaf spring No. 3/9+7,5/9+7,7/9+7. Approaching/Departure
Angle() 27/14


Front/Rear trace(mm) 1620,1395. Front/Rear
suspension(mm) 1105/1577
