ZZWP Self-Actuated Temperature Control Valve

Model:ZZWP
Brand:GOOLE
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Valves
Label:temperature control , regulating valve , control valve
Price: ¥1 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

yongjia goolevalve co ltd.

Free MemberZhe Jiang - China
Last Online:06 Mar, 2018

Product Description

 Product Description:



The Self Operated Temperature regulating valve is mainly applied in urban heating system and temperature regulating system of automatic control systems in other industries, which may be used for automatic control of temperature of all kinds of heating exchange and cooling devices in an environments with maximal temperature of 350ºCand media of non-corrosive liquid, gas and steam. There are two models: that which will close/open when temperature rises.



Technical Specification



Design Reference

GB/T17213/IEC 60534  GB/T4213

Design Standard

GB/T17213/IEC 60534  GB/T4213

Face to Face Length

GB/T17213.3-2005/IEC 60534-1:2000

Flange Dimension

GB 9113.1-2000

Test & Inspection

GB/T17213.4-2005/IEC 60534-4:1999



   Materials of Major Parts



No

Parts Name

Material (ASTM)

1

Body

A216 WCB

2

Seat

A182-F304

3

Stem

A182-F304

4

Spring

A182-F304

5

Nut

A182-F304

6

Packing

PTFE

7

Valve Bonnet

A216 WCB

8

Actuator (Sensor)

Discreteness



Note: Major Parts of the valve Series and materials of sealing surface differs according to different working condition and customer's special requirements.



Parameter table of valve



DN (mm)

20

25

32

40

50

65

80

100

125

150

200

PN(Mpa)

1.6MPa, 2.5Mpa, 4.0Mpa

Kv

7

11

2

30

48

75

120

190

300

480

760

Max Pressure Differential Pa (Mpa)

1.6MPa

1.5Mpa

0.5Mpa

TemperatureRange(ºC)

-20~50, 20~90, 40~100, 50~120, 60~130, 110~180, 180~250

Adjust Precision

±5%

Allowable Overload (c)

+50

Ambient Temperature (ºC)

-40~80

Seat Leakage

GB/T17213.4-2005/IEC 60534-4:1999



Parameter Table of Actuator



Model

T06

T17

TemperatureRange(ºC)

-20~50, 20~90, 40~100, 50~120, 60~130

SpecialTemperature Range(ºC)

110~180, 180~250

Allowable Overload (c)

=50

Time Constant (s)

120

20

Material of Temperature Sensor

Nickel Copper Alloy

Capillary Length (m)

5, 10, 15



Model

Size (mm)

Weight (Kg)

H

H1

R

d

T06

380

280

1"

24

3.0

T17

500

280

1"

30

3.5

  1. Temperature Control Valve is generally applied in the conditions with slow change of temperature other than conditions with intense change of temperature or frequent change of parameters.
  2. The temperature sensor of T06 executive unit will not directly contact the medium and thus it is convenient for maintenance but with slow response speed, appropriate for controlling liquid media. While the temperature sensor of T17 executive unit will directly contact the medium with a large area for temperature sensing and fast response speed, but inconvenient for maintenance. It's appropriate for controlling gas temperature, and sometimes for controlling liquid temperature.

Main External Dimensions.





DN(mm)

L(mm)

D(mm)

L1(mm)

H(mm)

G(mm)

Length of Conductor(m)

D(mm)

D1(mm)

(n-Ф)

32

180

25

430

380

1-1/4”

3

135

100

4-18

40

200

25

430

410

1-1/4”

3

145

110

4-18

50

230

25

430

450

1-1/4”

3

160

125

4-18

65

290

25

430

490

1-1/4”

3

180

145

4-18

80

310

25

430

530

1-1/4”

3

195

160

8-18

100

350

25

430

560

1-1/4”

3

215

180

8-18

125

395

25

550

600

1-1/4”

4

245

210

8-18

150

470

25

550

640

1-1/4”

4

280

240

8-23

200

600

25

550

690

1-1/4”

4

335

295

12-23


Product Image

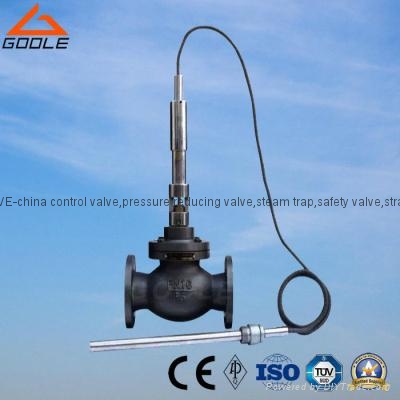

ZZWP Self-Actuated Temperature Control Valve 1
