high precision SAIER SER-GD15NA 15mm linear guide 1
  • high precision SAIER SER-GD15NA 15mm linear guide 1

high precision SAIER SER-GD15NA 15mm linear guide

Model:SER-GD15NA
Brand:SAIER
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:linear guide , 15mm linear guide , SAIER linear guide
Price: US $24.4 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Product Description

SER-GD15WA 15mm Competitive price cnc rail linear guide



construction

Model

SER-GD15WA

Material

bearing steel ,  Hardness58-62HRC

Height of Guide pair

24mm

Width of guide pair

16mm

Width of block

47mm

Length of block

57.8mm

Width of rail

15mm

Large length of rail

4000mm

Pitch of hole

60mm

Block type

flange type

Rated Dynamic Load

851KGS

Rated Static Load

1338KGS

Usage

cnc machinery, automatic lines, etc

Precision

C,    H,   P,   SP,    UP

model of linear rail

                                             SER-GD15NA

                                            SER-GD15WA

                                    SER-GD20NA(L)

                                              SER-GD20WA(L)

                                             SER-GD25NA(L)

SER-GD25WA(L)

                                        SER-GD30NA(L)

                               SER-GD30WA(L)

                                     SER-GD35NA(L)

                          SER-GD35WA(L)

                                         SER-GD45NA(L)

                               SER-GD45WA(L)

production process

block --- production process

cutting-rough grinding-maching-topping-quenching-sand blasting process- fine grinding-assemble-fine milling-marking-packing and transportation

Linear guide rail --- production process

Quenching-drill hole- straighten-fine grinding-assemble-packing and transportation

Packing&Delivery

Packing:  1)  Carton for sample order.

                    2) By film and wooden box for bulk order(large order).
                    3) as customer's requirements.

Delivery time:  1) Within 7 working days for sample order.

                           2) Within 15 -25 working days for one wooden box order.

                           3) According to actual condition.

products we provide

Miniature linear guides

MGN5 / MGW5
MGN7 / MGW7
MGN9 / MGW9
MGN12 / MGW12
MGN15 / MGW15

Cross linear guide

SER-GC25
SER-GC30
SER-GC35

BALL SCREW

Ball screw rod
supporting seat: BK/BF
Ball nut
Ball nut hosuing
Coupling

About SAIER

* SAIER is a professional manufacturer in producing series linear guides and ball screw in China for many years, Good quality, low price and short delivery,we export our goods more than 70 countries.

* The main products we offering in below:
     Common linear guides: SER-GD(15mm,20mm,25mm,30mm,35mm,45mm).
     Miniature linear guides SER-GD(5mm,7mm,9mm,12mm,15mm).
     Cross linear guides SER-GC(25mm,30mm,35mm)
     Ball screw: SFU(1204, 1605,1610,2005,2010,2505,2510,3205,3210), Single ballnut

                          DFU(1204, 1605,1610,2005,2010,2505,2510,3205,3210) Double ballnut

                          SFE(1212,1616,2020,2525,3232), Large picth ball screw

Contact US

CONTACT INFORMATIONS:

Coco Chen
Website: www.saierdaogui.com
Mail box: cocoATsaierdaogui.com
Mobile phone: +8618866612803
Whatsapp: +8618866612803
Skype: +86 155 6263 9719
QQ: 1140037257
Wechat: coco18866612803

We will shape "Sair"with the principle of scientific innovation, development and the good faith. Always with full enthusiasm, sincere cooperation attitude and win-win business philosophy, we warmly welcome customers at home and abroad.

We are sincerely looking forward to cooperating with you.


Payment Terms:T/T, paypal, wESTERN UNION

Product Image

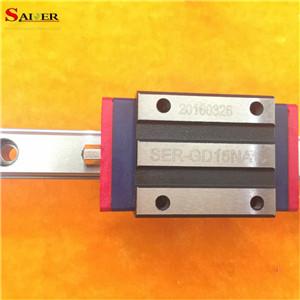

high precision SAIER SER-GD15NA 15mm linear guide 1
