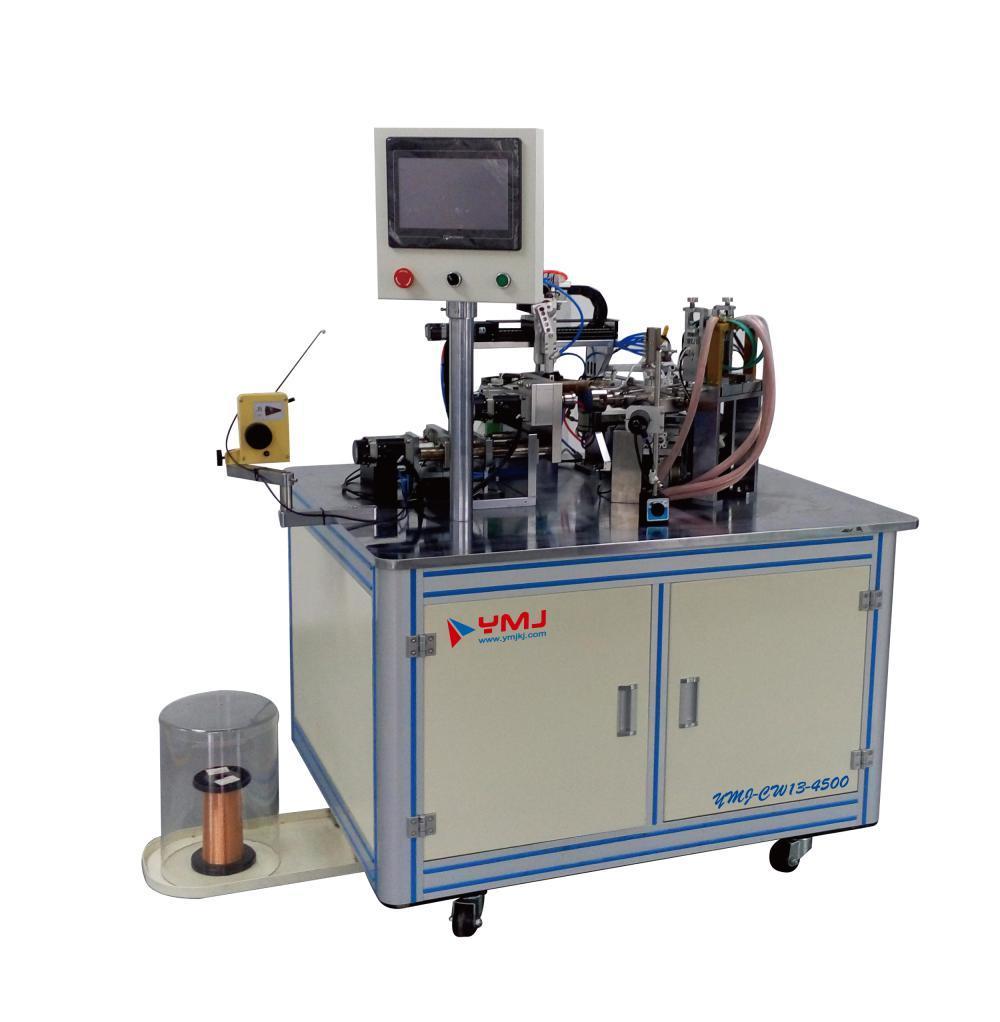

Full auto coil winding machine is the integration of the wire feeding, winding, cutting, chip welding and wire collecting. It can wind different shapes of coils, which heating and fusing wire at the same time. This machine adopts touch screen, the operation is direct and easy. And the intelligent monitoring need no test, it can realize 24 hours automatic manufacturing, which is compatible with automatic production line and form a complete set with full automatic workshop.








Feature:


Parts of mechanical motion adopts import servo motor and high precision ball screw, which guarantee the high efficiency and high precision. Winding method is flying fork winding, six working stations rotary cutting and ejection. This model of coil winding machine is one of the most efficient in whole industry.











Main function:


1. The machine consist of wire winding group, wire storing group, wire clamping group, wire cutting group, coil transferring group, module feeding group, module welding group, collecting group.


2. It can wind different shapes of coils, which heating and fusing wire at the same time.


3. The outer diameter and the number of turns of the coil are optional.


4. The module is feed by high precision vibrator.


5. Use double pulse current inverter welding machine to weld the module and the coil.


6. Collect coils automatically after welding.


7. Main control system: PLC+ high precision servo system +HMI, parameters and program can be saved and called freely.


8. The output rate can be recorded. When the output rate reaches to the Pre-set value, machine can stop automatically. Running cycle and total running time will be displayed on the HMI.








Company Profile:


Shenzhen Yuanmingjie Technology Co., Ltd was founded in 2010 for research and development of intelligent manufacturing equipment. With many years innovations and development, Yuanmingjie has become the High Technology Corporation who has got high reputation in China and overseas. Yuanmingjie is the Shenzhen innovative enterprise and the member of Shenzhen software industry association, we also got Guangdong province credible enterprise identification.





Yuanmingjie integrated R&D, manufacturing and sales, who concentrates on supplying better equipment and supporting facilities solution for smart card factories. Our main products include production line for contact smart card, contactless smart card, dual interface smart card, RFID electrical labeling and personalized equipment.


Elites are valued by Yuanmingjie technology, lots of professionals with more than 10 years experience in equipment development gather here. With so many years of technical innovation and experience, Yuanmingjie breakthrough the traditional dependence of domestic enterprises on foreign techniques, reaches a leading position in China, who firstly adopts advanced Ultrasonic Embedding technique and Precision Vibrator Bowl. Meanwhile dual interface smart card equipment and milling and embedding two in one equipment have got National Invention Patent and CE certificate.





Spirit of Yuanmingjie: To develop ourselves by guide of market, to gain customers by credibility, to gain reputation by better quality.


Mission of Yuanmingjie: To create value for customers and society constantly.


Vision of Yuanmingjie: With continual technical innovation, wisdom and efforts from members of yuanmingjie, we will fulfill customers current need and create high needs, to be the top automatic equipment and technical solutions supplier.
