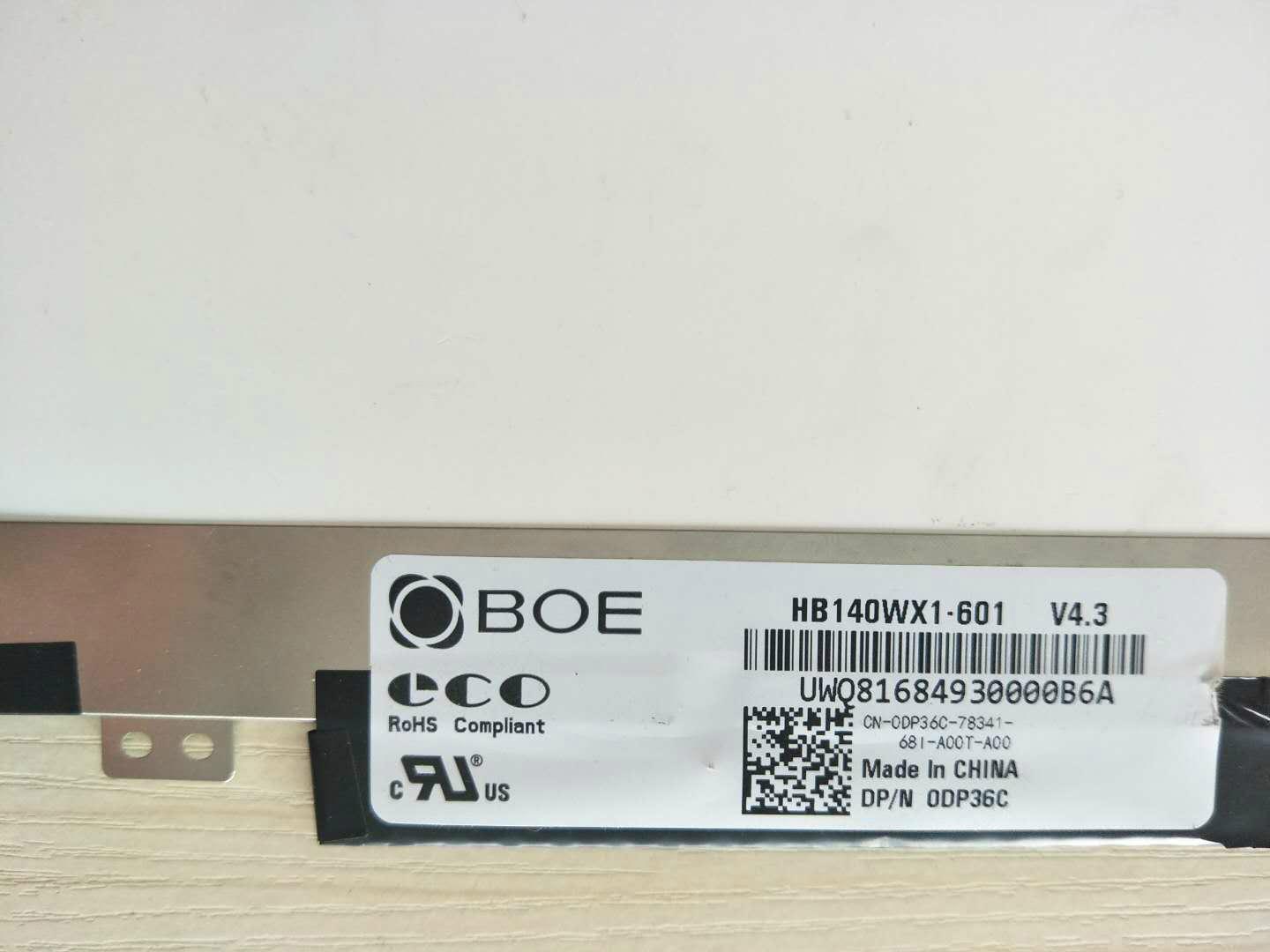

Panel Brand :BOE

Panel Model :HB140WX1-601

Panel Size :14.0 inch

Panel Type :a-Si TFT-LCD, LCM

Resolution :1366(RGB)×768 , WXGA

Pixel Format :RGB Vertical Stripe

Display Area : 309.399(W)×173.952(H) mm

Outline Size :320.9(W)×187.6(H)×3(D) mm

Surface :Antiglare, Hard coating (3H)

Brightness :200 cd/m² (Typ.)

Contrast Ratio :600:1 (Typ.) (TM)

Viewing Angle :45/45/20/45 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode :TN, Normally White, Transmissive

Best View on :6 o'clock

Response Time :12 (Typ.)(Tr+Td)

Display Colors :262K  48% (CIE1931)

Lamp Type :9S4P WLED , 15K hours , With LED Driver

Frequency :60Hz

Touch Screen :Without

Shape Style :Slim (PCBA Flat, Depth ≤3.2mm)

Application :Laptop

Signal Interface :eDP (1 Lane) , 30 pins , Connector

Input Voltage :3.3V (Typ.)

Environment :Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
