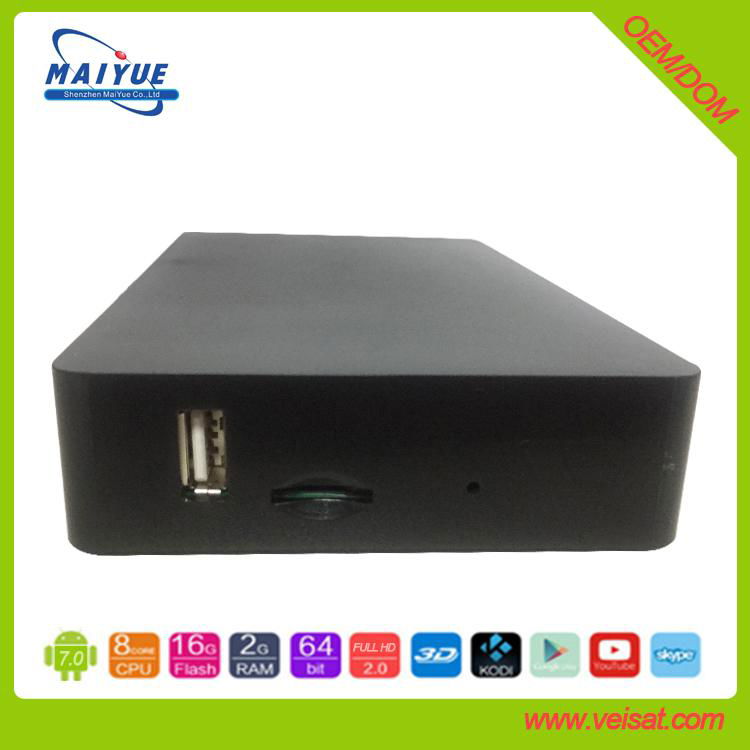

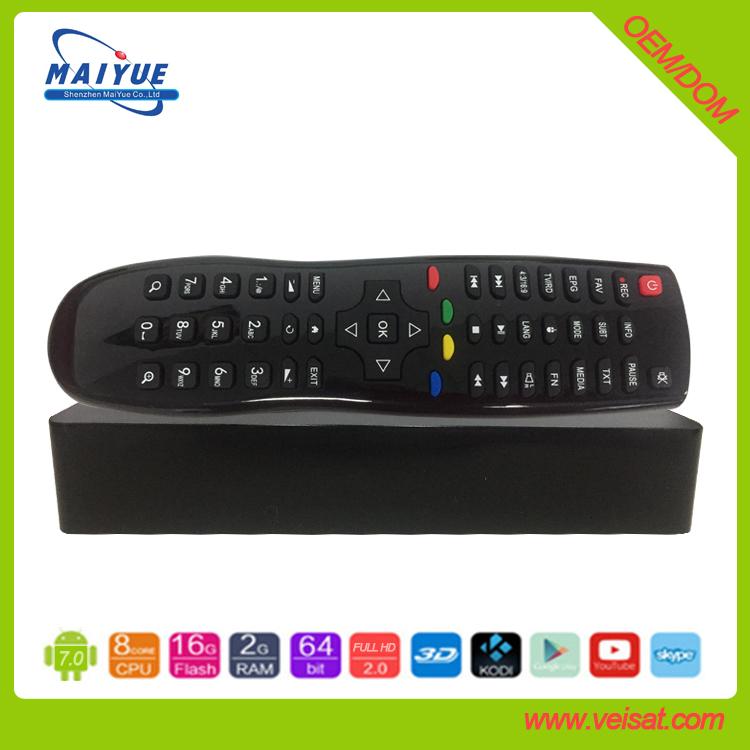

Hicilicon 3798 Android DVB-S2+ISDBT combo set top box

 CPU       Hi3798 MV200
GPU       Penta Core Mali-450  750MHz
FLASH   8GB  EMMC
SDRAM        1GB DDR 3
Power Supply DC 12V/1A
Power Indicator (LED) Plastic material
OS        Android 7.0
KODI       16.0 Beta
WIFI ENTER 802.11 b/g/n
3D Hardward   3D graphics acceleration
Support Decoder format HD MPEG1/2/4,H.264, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10 HEVC H.265@10bit, HDR 10bit
Support Media format: Avi /Rm/ Rmvb/ Ts/ Vob/ Mkv/ Mov/ ISO/ wmv/ asf /flv /dat /mpg/mpeg
Support Music format   MP3/ WMA/ AAC/ WAV/ OGG/ AC3/ DDP/ TrueHD/ DTS/ DTS/ HD/ FLAC/ APE
Support Photo format :HD JPEG/BMP/GIF/PNG/TIFF
USB host 1*USB 2.0 and 1*usb 3.0,support U DISK and USB HDD
Card reader  SD/SDHC/MMC cards
HDD file system FAT16/FAT32/NTFS
Support Subtitle SRT/SMI/SUB/SSA/IDX+USB
High Difinition video output SD/HD max.1920x1080 pixel
OSD type of languages English/ French/ German/ Spanish/ Italian/ etc multilateral languages
LAN Ethernet: 10/100M, standard RJ-45
Wireless Built in WiFi
Mouse/ Keyboard Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle
HD HD 2.0 up to 4k2k Output
4K2k hd decoding 4k2k H.265 Hardware Video Decode and 4k 2k Output
1080P/AV/Dolby/3G Support
SPDIF/IEC958 Coaxial
APP Store
Google Play Store

DVB               DVBS2 + ISDB-T ( DVB-T2/ATSC by OPTION)
ISDB-T               ISDB-T system standard：ETSIEN 302 755
Support            MPLP
Demodulation:     QPSK,16QAM,64QAM or 256QAM
Forward error correction rate 1/2,2/3,3/4,3/5,5/6
Guard interval :  1/4,19/256,1/8,19/128,1/16,1/32,1/128
Bandwith:            6/7/8MHz
Input Frange range:  54--860MHz Input Impedance:75 Ω
Input Signal level:  -84 dBm to  0 dBm (average power)
ANT. Connector:IEC TYPE, female

DVB-S/S2 Tuner    Tuner Type    RT848
Frequency Range    950 ～ 2150MHz for DVB-S/S2
Input Impedance    75Ω
LNBPowerand    Vertical13VDC;Horizontal 18VDC @ 400mA (max)
Polarization     22KHz±0.4KHz(0.6V±0.2V)tone, Overload Protection
Input Level Range    -65dBm ～ -25dBm
Loop-Through    Signal loop through
