| Model: | TMCC-1725/2025 |
|---|---|
| Brand: | TM |
| Origin: | Made In China |
| Category: | Textile & Leather / Fabrics / Cotton Fabrics |
| Label: | Fabric Textile , Fabric Textile , Cloth Cutting Table |
| Price: |
US $58000
/ set
|
| Min. Order: | 1 set |
| Last Online:17 Nov, 2021 |
video of company introduce -Wuhan Tianming Photoelectric Technology Co., Ltd.
https://youtu.be/aTDfuGt2P6A
Product Application:
Cutter markets suitable for widely industly ,for instance : leisure fashional suits,children's garments,suits,
knitting casual/leisure suits,underware,swimsuit,corsage,seat cushion,massage chair,yacht/houseboat seat,shoes,cat,cold protective clothing,golf bag,handbag,home textiles,cow-bag,sleeping bag,tent, apparel,
automotive, and furniture and soft fabric as well as other industries.
Machine Picture:
Machine Parameters:
| Type | TMCC-1725/M | TMCC-2025/M | TMCC-2225/M |
| Cutting area | 1700*2500 | 2000*2500 | 2200*2500 |
| Cutting speed | 0-50000mm/min | ||
| Cutting thickness(after vacuum suction) | max50/70/90mm(according to the cloth) | ||
| Cutting style | straight knife up-down | ||
| Cutting accuracy | ≤±1mm | ||
| Softerware | automatic cutting system copyright | ||
| Power supplier | AC380V/50HZ | ||
| Weight | 2100KG | 2200KG | 2400KG |
| Size(length,width,height) | 5760*2610*1500 | 5760*2910*1500 | 5760*3100*1500 |
| Custermization about length, width,s trength is acceptable | |||
Specifications:
Important Standards Size:
After vac-sorb Cutting thickness: 5cm 7cm 9cm
C Model effective cutting width(mm): 1600 1700 2000 2200 2500
(multil layer) effective cutting length(mm): 2000 2500 3000 3300
After vac-sorb Cutting thickness: 3mm ( according to the material and decided it)
S Model effective cutting width(mm): 900mm
(singlelayer) effective cutting length(mm): 9000mm
Main Features
* Computer design, automatic typesetting, save original materials.
* Computer controlled and automatic cutting, save the human resource, mass production.
* Support many kinds of formats, direct open general dress design format, typesetting software.
* The unique algorithm and motion control technology, realized seamless between straight line and arc.
* High cutting accuracy, self-design of automatic sharpen cutter, high quality of cutter makes life longer.
* No need print out, save the typesetting, with high repeated utilization, plate marking management is convenient.
* Easy to change the spare part, and lower cost;
* Nice automation, easy to operate.
Part Picture:
1,XYZT Axis Motor
2, Machine Main Head Part ( knife plate, punch needle, cutting knife(cuttter/blade) , knife system)
Certifications

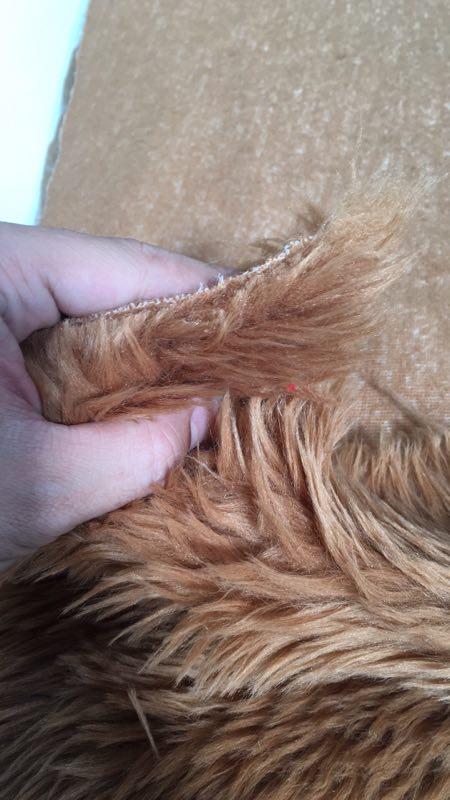

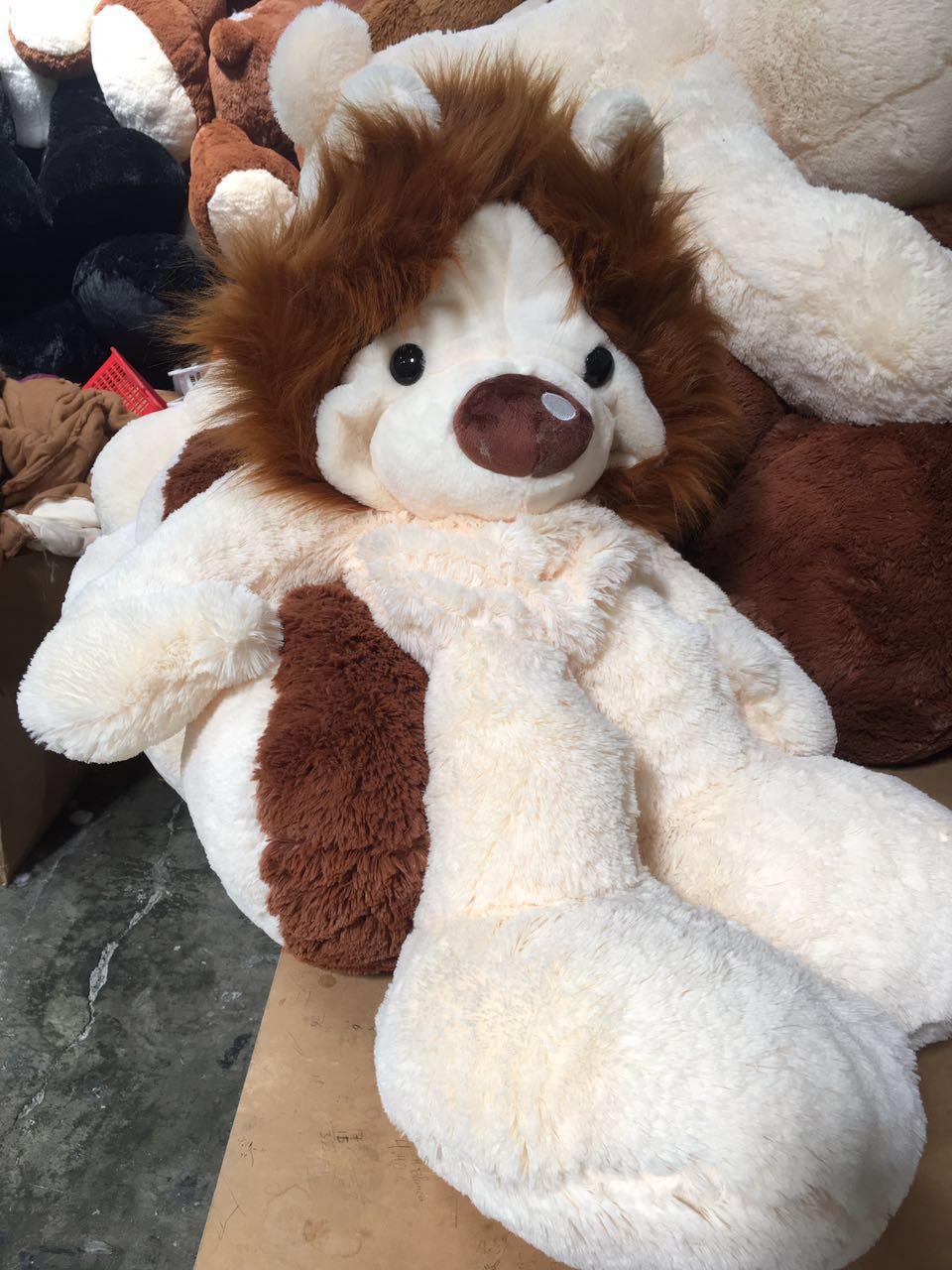

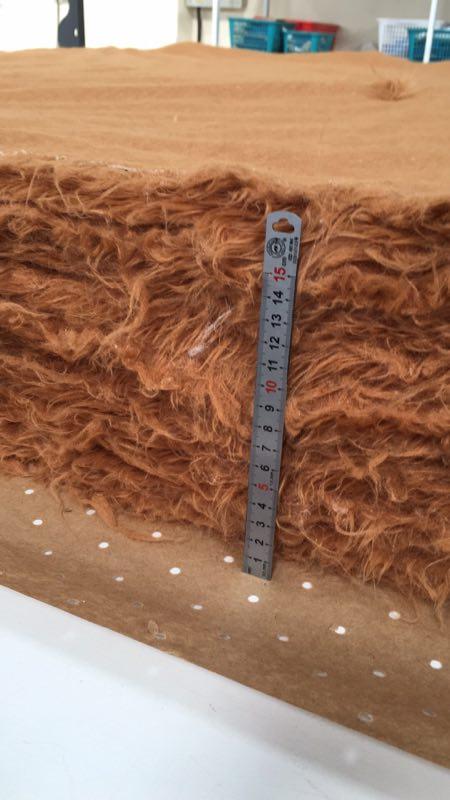

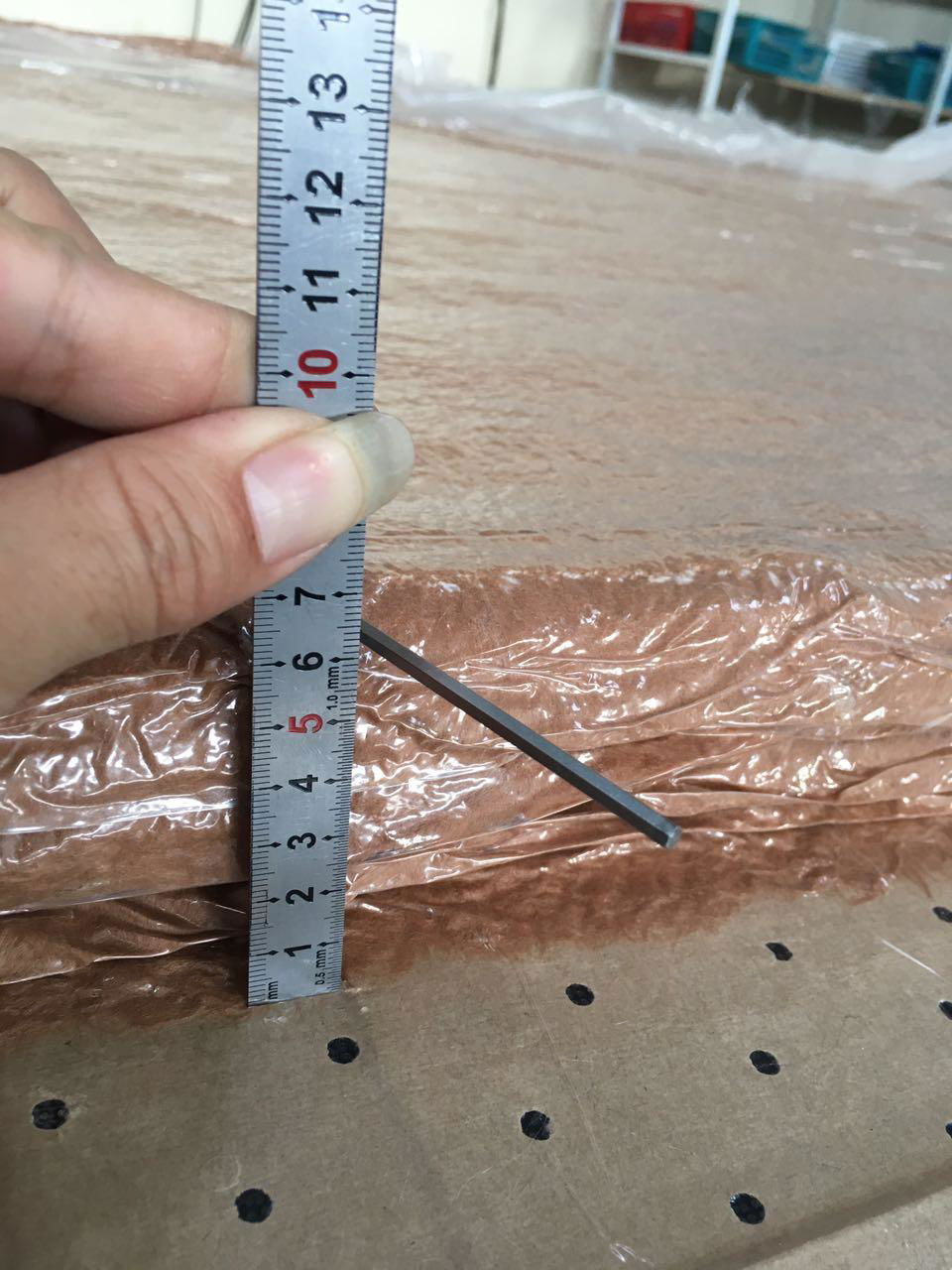

Sample Picture:
| Payment Terms: | TT |
|---|---|
