JL5 series bayonet coupling circular connectors

Model:JL5
Brand:KP
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Terminal
Label:JL5series connectors , 5015 series plug , VG95234 connectors
Price: -
Min. Order:3 pc
Inquire Now

Member Information

Detail

Product Description

JL5 series connectors are made according to Ministry of railway standard TB/T2761.It can be interchanged with VG95234 connectors.meet the standard MIL-C-5015.The socket is covered with guided stainless sleeve and allows the connector to have the advantages of low contact resistance,long endurance,etc.The connection type between the plug and the receptacle is bayonet coupling with quick mating and easy use.They are widely used for the connection of electrical equipment of rail train.The plug or the receptacle may be mounted with both pins and sockets.

Product Ordering

       JL5   —         J    B

        1       2     3     4    5

  1. Name of series:      JL5
  2. Number of contacts: 3, 4,5,7,12,14,19
  3. T—plug,Z—receptacle
  4. J—pin,K—socket
  5. B—flange mouting, L—cable connector

Technical characteristics

Temperature

Relative humidity

Atmosphere

Vibration

Shock

-55°C~+125°C

(90~95)% at40+2°C

101KPa~6.7Pa

5~2000Hz,294m/s²

40~80strokes/min 980m/s²



Current

Voltage

Contact resistance

Endurance

(Φ1.6mm)13A

500V

≤5mΩ

500cycles

(Φ2.4mm)23A

≤2.5mΩ

500cycles



Environment

Voltage proof

Insulation resistance

Normal

2000V

≥5000MΩ

High temperature

1000V

≥500MΩ

Moisture

500V

≥20MΩ

Low pressure

200V

-




Payment Terms:T/T

Product Image

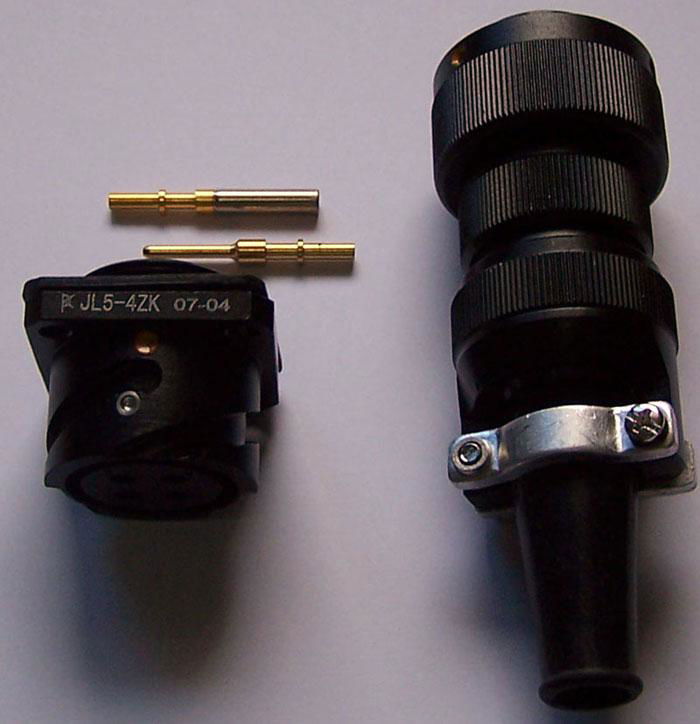

JL5 series bayonet coupling circular connectors 1
