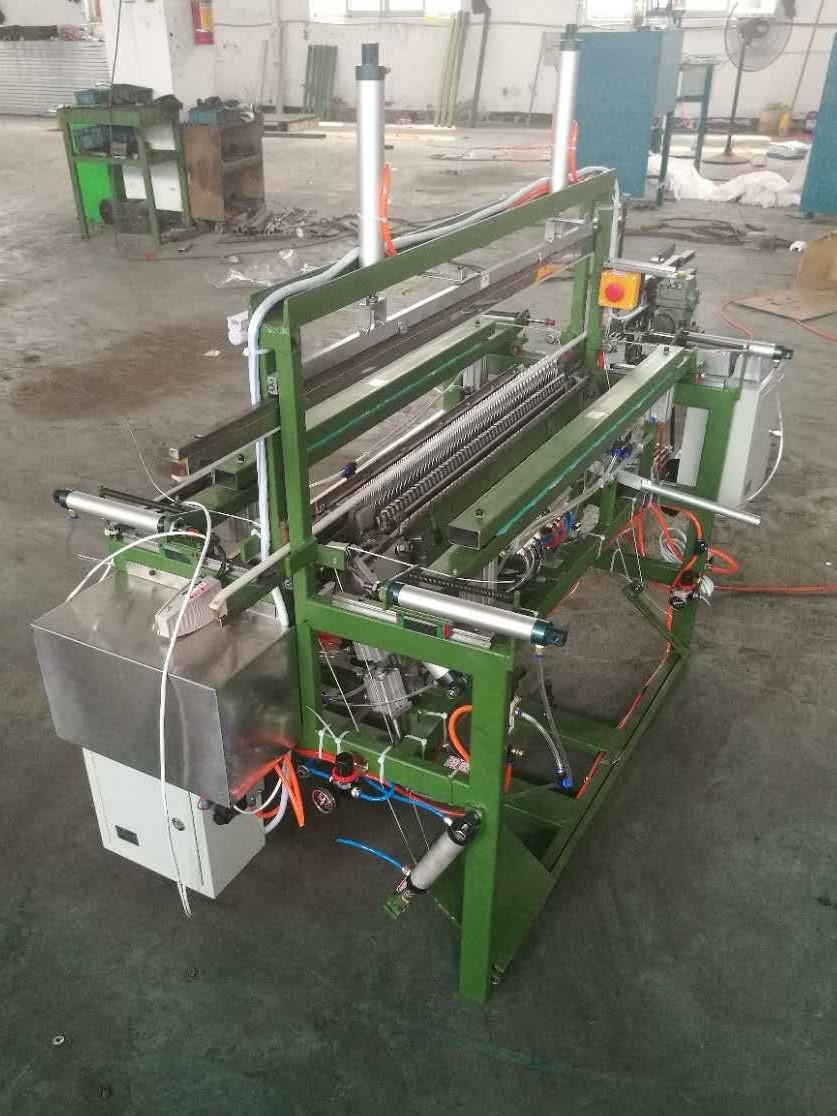

Scarf/ Shawl/ Blanket Fringing Machine with knotting function

 We design and produce the fringing-knotting machine. This new technology has filled in the gaps of domestic textile industry, and we gained national utility model patent certificate. The machine mainly used for twisting the fringe of scarf, shawl or blanket and knot the fringe end,

It has been praised by many users, and be well received by the users in china and abroad.  We delivered many to Egypt, India, Turkey etc.

Technical Data:

1. Working Width: 125cm

2.Total capacity: 0.65kw

3. Electricity: 220v ±10%、50HZ

4.Work efficiency: 2~4 pcs/min.

5.Package Dimension: L*W*H 2800*1000*1600mm

6. Gross Weight: 350kg

7. Fringe length range: 150mm~450mm

Service Assurance

1..Provide training to operators.

2.Provide one year warranty for key components.

3.Lifetime paid maintenance.

4. Detailed reference contract.

The parts along with the machine package:

1. 3sets Rubber strip (3.6m/set),

2. 1pcs 4MM allen wrench, 1pcs 5 MM allen wrench

3. 10pcs steel wire rope

4. inductive switch: 1pcs normally open inductive switch, 1pcs normally closed inductive switch

5. 2pcs solenoid valve

6. special oil for cylinder

7. 5pcs spring

Machine detail button:

Scarf twisted and knotted fringe
