| Model: | QS-02 |
|---|---|
| Brand: | Qinshan |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Power Cable |
| Label: | electric cable , pvc sheathed cable , pvc insulated cable |
| Price: |
US $160
/ KM
|
| Min. Order: | 1 KM |
| Last Online:01 Mar, 2019 |

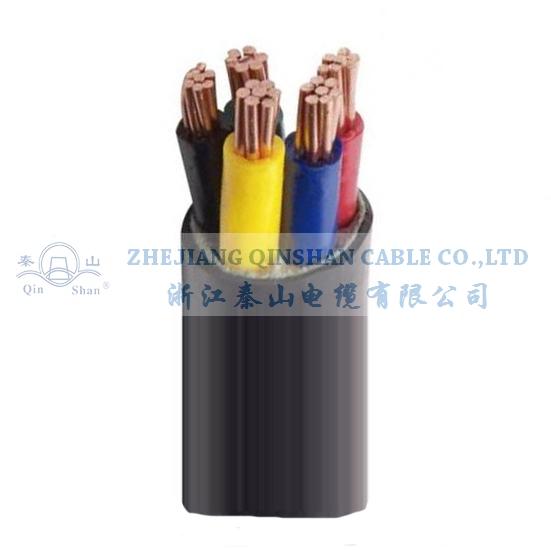

Copper Conductor PVC Insulated and Sheathed Electric Cable is used for power distribution and transmission line at rated voltage of 0.6/1.0kV.
Conductor: Copper wires, as per IEC 60228 Class 5
Insulation: PVC, maximum working temperature: 70 degree Celsius

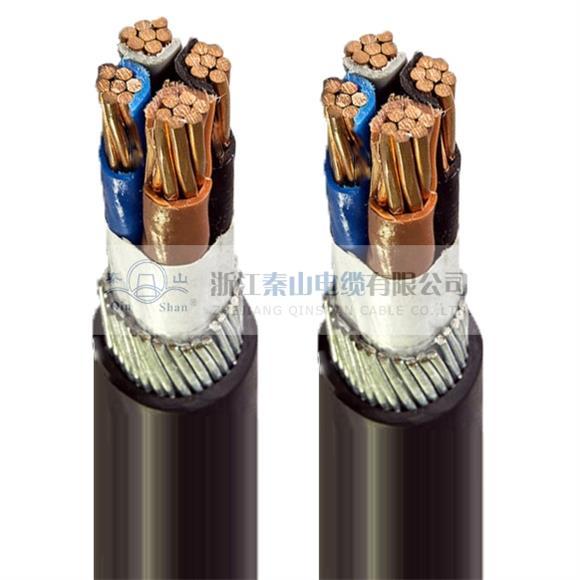

Armour: Aluminum wire or steel wire or steel tape
Sheath: PVC
Standards: IEC 60502, IEC 60228, GB/T12706
Rated voltage: 0.6/1kV Low Voltage
Maximum Conductor Temperature: 75 degree Celsius, 130℃ at emergency situation and 160 degree Celsius for 5 seconds at short circuit situation
Minimum Ambient Temperature: 0 degree Celsius
Minimum Bending Radius:
20 times of cable O.D. for single core without armour
15 times of cable O.D. for multi core without armour
15 times of cable O.D. for single core with armour
12 times of cable O.D. for multi core with armour
