12v Front/Backup Adjustable Car Parking Sensor Kit
Product Description
Universal LED display reversing radar Car Parking Sensor system with IP67 waterproof Industrial cables and connectors
Features:
• Complete FRONT or Rear bumper sensor system with LED Display.(Buzzer optional)
• The display is designed to be mounted on the dashboard or rearview mirror.
• LED display with speaker gives audible and visual feedback.
• Simple push button selection to invert display.
• 4*TM3 double angle sensor, 18.5mm plastic flat, 15cm+3.5m cable; The sensor can match with differenct angle ring.
• Waterproof screw connectors to extension cables for years of use in inclimate weather.
• Intelligent learning function, great for cars with tow-bar, spare tire or other protrusion.
• Advanced self-diagnosis with error indication.
• All weather design, plastic housing.

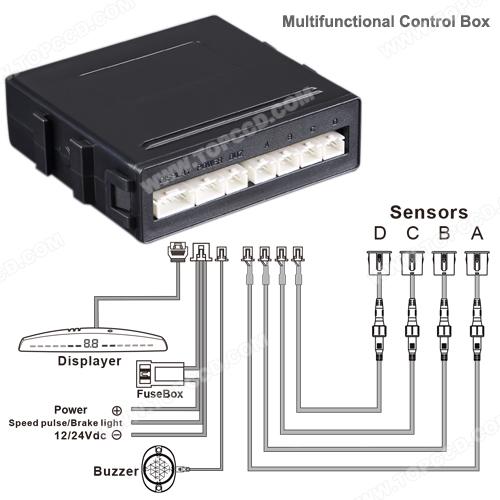

• Multifunctional control box, Config swithes to change the Working Operation Mode of parking system according to customers needs.(You can config:1. rear / front, 2. brake / speed, 3. limit / unlimit, 4. normal / spare tire.)
• Sensor detection range: 0cm~1.20m(for front); 0cm~2.50m(for rear).
• Display range: 30cm~1.2m(for front); 30cm~2.5m(for rear).
• Power Input 9.6~15V DC
• 2years warranty
* This kit can be fitted to most cars or vans that have standard plastic bumpers. We do not recommend this kit for fitting to metal bumpers.
Sensor:
• 4pcs double angle flush fit parking sensors
• Material: Plastic housing (All weather design)
• Colour: Black
• Mounting hole size: 18mm
• Sensor head size: 22mm in diameter (flat)
• Sensor depth: 22mm
• Sensor detection range: 0cm~1.20m(for front); 0cm~2.50m(for rear)
• Sensor detecting angle: Horizontal: 120° Vertical: 60°
• Water Proof Sensor/ECU Cable Connectors for easy bumper removal (15cm+3.5m cable)
• The sensor can match with differenct angle spacers (rings) for slope bumper installation
Display:
• 2 Color LED 2 Channel display
• Precision accuracy: CM or DM
• Built in buzzer
• Display range: 30cm~1.2m(for front); 30cm~2.5m(for rear).
• Loudness: 80-100 dB
• Display Cable: 5m
• Simple push button selection to invert display.
• Can be installed on top of the rear view mirror or dashboard
Technical parameters:
• Rated voltage: 12V
• Operating range: 9.6V ~ 15V DC
• Operating current: 60mA~150mA
• Frequency of sensor: 40KHz
• Detecting angle: Horizontal:120° Vertical: 60°
• Sensor detection range: 0cm~1.20m(for front); 0cm~2.50m(for rear).
• Display range: 30cm~1.2m(for front); 30cm~2.5m(for rear).
• Optimum detection range: 1M(adult)
• Response time: 0.15 sec.
• Operating temperature: -30°C ~ +80°C
Product Image
