New Type Heavy-Duty Vehicle Camera with Weather-Proof Connectors
. Video signal: AHD 1080P/960P/720P, Sony CCD / CMOS
. Image Sensor: 1/3" CMOS Sensor,1920*1080 Resolution (2.0 Megapixel)
                          1/3" CMOS Sensor,1280*960 Resolution (1.3 Megapixel)
                          1/4" CMOS Sensor, 1280*720 Resolution (1.0Megapixel)
                          1/3" SONY CCD chip,976×596 pixels (700TVL)
                          1/3" SONY CCD chip,752×582 pixels (600TVL)
                          1/3" CMOS PC3089 chip,720x480 pixels
. TV System: NTSC or PAL
. Video System: Internal
. Viewing Angle: 120 degree
. Lens: 2.8mm
. Night Vision: 12 infrared LEDs
. Minimum Illumination: 0Lux (LED ON)
. Electronic Shutter: AUTO
. Scanning System: Progressive  Scan
. White Balance: Auto
. Exposure Control: Auto
. Gain Control: Auto
. Video output: 1Vp.p 75ohm
. Input voltage: DC 12V
. Waterproof resistance: IP68
. Vibration Rate: 10G
. Connector: 4-Pin Aviation or RCA+DC plug
. Housing material: Aluminum
. Casing colors: Black
. Image: Mirror / Normal (mirror is default)
. Normal/Reverse Switch: Optional
. Suit for front view/side view/rear view position installation
. Operating Temperature: -30℃~+70℃.RH95% Max
. Storage Temperature: -40℃~+80℃.RH95% Max

Installation:

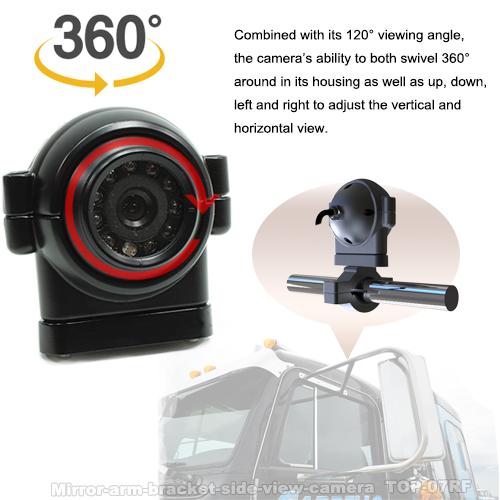

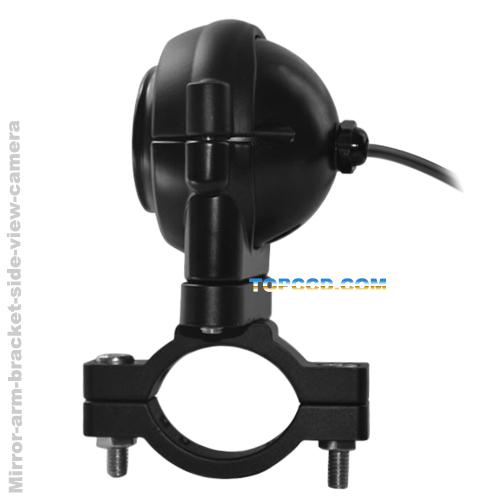

The major feature of this vehicle arm bracket side view camera is its installation mechanism. The brackets are designed to be easily installed on a side-view mirror’s arm. The 2 parts are connected and tightened together, with the arm locked-in between the brackets. The camera is then attached to the brackets, and the cable run into the vehicle, completing the installation.
