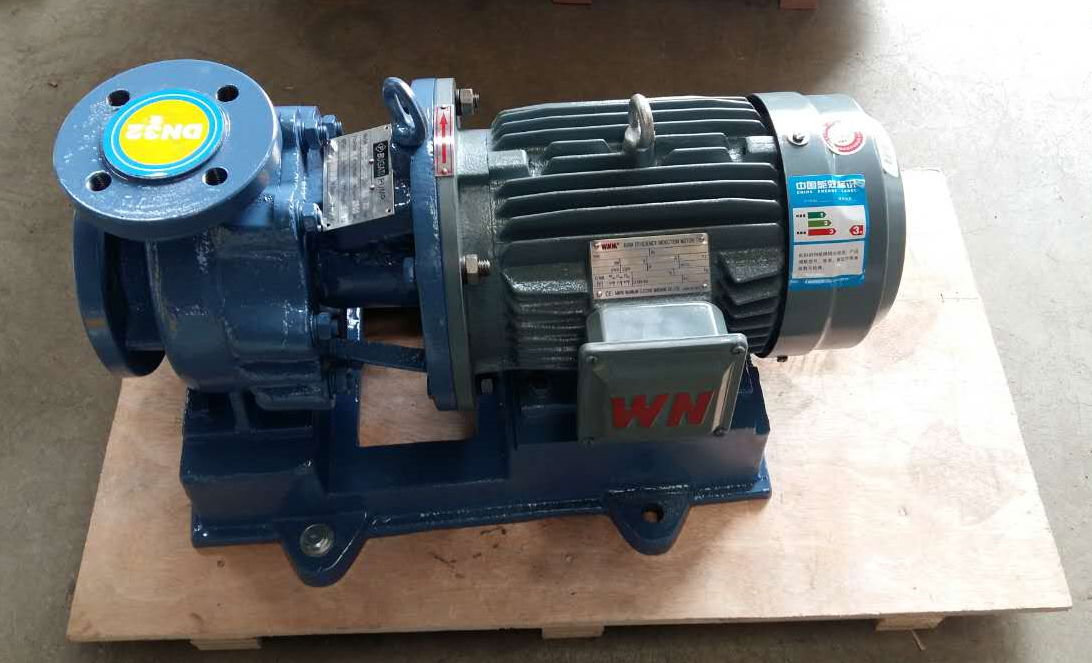

It is single stage end auction horizontal type lining fluorine plastic chemical

process centrifugal pump . It is belong to non-metal pump.

2. Designed and Manufactured Standards

En733 -1995 / DIN24255 European Standards(10bar)>

GB/T5662 China Standards

(16bar )>ISO2858 International Standards

(16bar )>

ANSI/ASMEB73.5M-1995 American Standard

(Specification for Thermoplastic and Thermoset Polymer Material Horizontal

End Suction Centrifugal Pumps for Chemical Process )

HG/T3183-1989

China Technical Conditions

(Fluorine Plastic Lining Single Stage Singe Suction Chemical Process

Centrifugal Pump Technology Conditions )

3. Pump designations and Descriptions

Foot-mounted ,single -stage single suction overhung pumps shall be

designed pump with OH1 Type.

4. Working Performance

Capacity :12.5-100m3/h

Head(Lift) : 20 -50m

Working Temperature : -20- 120℃

Discharge Pressure : Max 1.6 Mpa

Max Allowed Rotating Speed :3600rpm

● Special Designed

Pump casing and cover are made of Cast iron lining with PTFE or FEP ,

impeller made of embedded sintering and wrapped by PTFE or FEP

which guarantee this type centrifugal pump could widely used in corrosive

application and wear well.

● Reliable Mechanical Seal

it is choose advance bellows Single end face mechanical seal .

it is outside seal type , stationary seal is 99.9% alumina ceramic (AIC ) or

Silicon Carbide (SIC) , rotating seal is made PTFE filling material or according

to customer request.it have good sealing performance.

● Advantage:

High corrosive, well leak proof, easy assembly and maintenance

● Pump Specificaiton :

Model          Flow (m3/h) Head (m)  power(kw)Motor Parameter Standard Motor or Exp-Motor

IHF50-32-125(D) 12.5    20             3                  B35/3phase/50Hz/380V/2900rpm Yes

IHF50-32-160(D) 12.5   32             4                  B35/3phase/50Hz/380V/2900rpm Yes

IHF50-32-200(D) 12.5   50             7.5          B35/3phase/50Hz/380V/2900rpm Yes

IHF65-50-125(D) 25   20              3                  B35/3phase/50Hz/380V/2900rpm Yes

IHF65-50-160(D) 25   32             5.5          B35/3phase/50Hz/380V/2900rpm Yes

IHF80-65-125(D) 50       20             5.5          B35/3phase/50Hz/380V/2900rpm Yes

IHF100-80-160(D) 100   20             15                 B35/3phase/50Hz/380V/2900rpm Yes

OEM is also welcome .In normally ,we are painted blue or green , if you need any other Color,please let us to know color card . so we can painting pump body according customers requirements.
