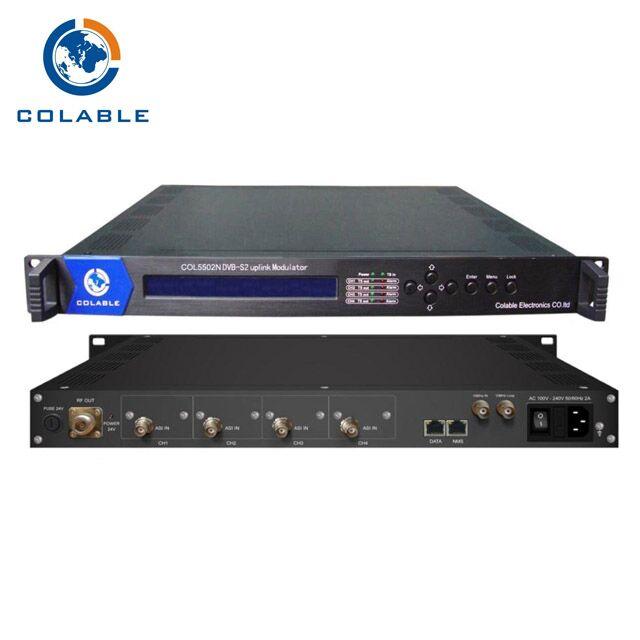

COL5502N DVB-S2 uplink Modulator with 32APSK
My email/Skype: susan.sun(at)colable.com
My Telephone/whatsapp/wechat: +86-18227630026
Website: www.colable.com
Outline
COL5502N is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2 RF output.
BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel.
With its high cost-effective design, COL5502N DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.
Features
ü Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard
ü 4 ASI inputs (3 for backup)
ü Support RF CID setting (optional as per order)
ü Support IP (100M) signal input
ü QPSK, 8PSK, 16APSK, 32APSK Constellations
ü Constant temperature crystal oscillator, as high as 0.1ppm stability
ü Support coupling 10Mhz clock output through RF output port
ü Support 24V power output through RF output port
ü Support BISS scrambling（UP to 80 Mbps）
ü Support local and remote control with SNMP or Web-server NMS
ü Support SFN TS transmission
ü Output frequency range: 950~2150MHz, 10KHz stepping
Specifications
|
ASI Input |
Supporting both188/204 Byte Packet TS Input |
||
|
4 ASI Inputs, Supporting Backup |
|||
|
Connector: BNC, Impedance 75Ω |
|||
|
IP Input |
1*IP Input (Rj45, 100M TS Over UDP) |
||
|
SFN output |
MIP or IIP |
||
|
10MHz Input |
1*10Mhz Input (BNC Interface) |
||
|
RF Output |
RF Range: 950 ~ 2150 MHz, 10KHz stepping |
||
|
Output Level Attenuation：-10.0 dBm~-41.5 dBm，0.5dB Stepping |
|||
|
MER≥36dB |
|||
|
Connector: N type, impedance 50Ω |
|||
|
Channel Coding and Modulation |
Standard |
DVB-S |
DVB-S2 |
|
Outer coding |
RS Coding |
BCH Coding |
|
|
Inner coding |
Convolution |
LDPC Coding |
|
|
Constellation |
QPSK |
QPSK,8PSK, 16APSK,32APSK |
|
|
FEC/ Convolution Rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
|
|
Roll-off Factor |
0.2, 0.25, 0.35 |
0.2, 0.25, 0.35 |
|
|
Symbol Rate |
0.5~45Msps |
0.5~40Msps (32APSK); 0.5~45 Msps (16APSK/8PSK/QPSK) |
|
|
BISS Scramble |
Mode 0, mode 1, mode E |
||
|
System |
SNMP/Web-server NMS |
||
|
Language: English |
|||
|
Ethernet software upgrade |
|||
|
24V power output through RF output port |
|||
|
Miscellaneous |
Dimension |
482mm×410mm×44mm |
|
|
Weight |
4.3 KG |
||
|
Temperature |
0~45℃(operation), -20~80℃ (storage) |
||
|
Power |
100-240VAC±10%,50Hz-60Hz |
||
|
Consumption |
25W |
||
| Price Terms: | EXW |
|---|---|
| Payment Terms: | TT/LC |
| Packing: | Standard export carton with foam, 1pcs/carton |
| Lead Time: | 2-5 working days after payment |
| Standards Certificate: | ISO9001,ISO14001,CE,ROHS |
