With features of high power capacity, wide bandwidth, high withstand voltage and horizontal omni directional directivity, 1-3 composite high-frequency broadband cylindrical transducer is used in high-frequency standard sound source, multibeam echosounder high-frequency underwater acoustic communication system.
|
1-3 composite high-frequency broadband cylindrical transducer |
||||
|
Characteristics |
CCT-150 |
CCT-200 |
CCT-300 |
CCT-600 |
|
Resonance frequency (kHz) |
150.0 |
200.0 |
300.0 |
600.0 |
|
Working frequency range (kHz) |
100～200 |
150～300 |
200～400 |
400～800 |
|
Vertical beam angle @Fr(°) |
20 |
20 |
20 |
20 |
|

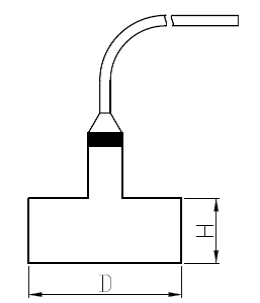

Height (mm) |
50 |
40 |
30 |
25 |
|
Diameter (mm) |
150 |
120 |
100 |
55.0 |
|
Transmitting source level (dB) |
≥195 |
≥195 |
≥195 |
≥195 |
