Model: | 2pin40degree |
---|---|
Brand: | szmedplus |
Origin: | Made In China |
Category: | Electronics & Electricity / Electronic Components / Terminal |
Label: | Pull-push connector , plastic connector , medical connector |
Price: |
US $2
/ pc
|
Min. Order: | 10 pc |
Last Online:26 Nov, 2024 |

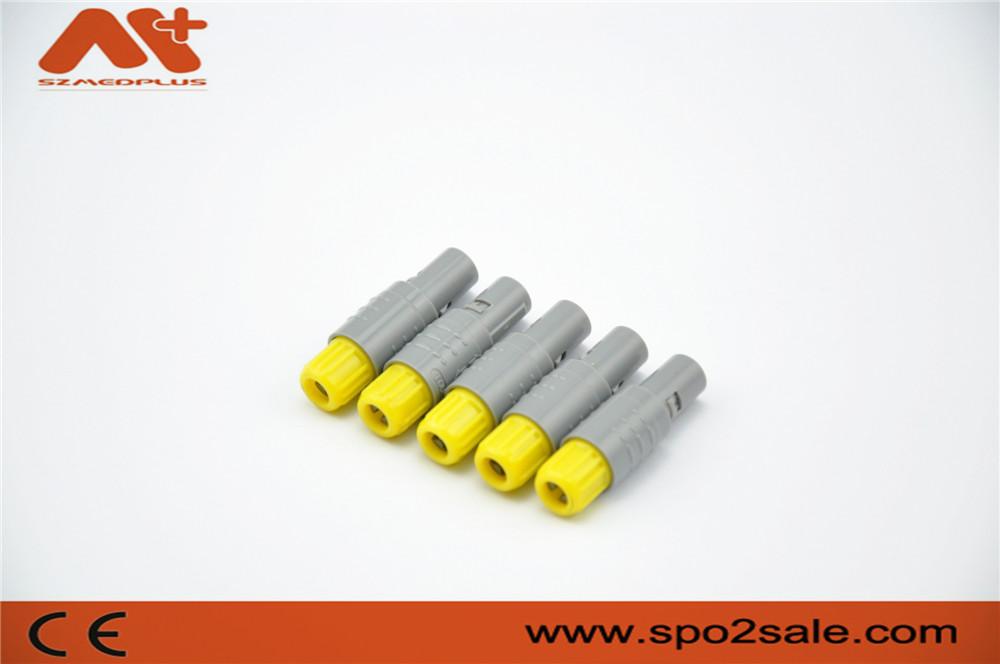

Adaptor: ABS Pins: Golden plated brass pins, 2pins,
Connector house: ABS
Products are widely used in communications, medical, laser, automotive, surveying, mapping, military and other equipment.
Advantage:
Plastic housing made of PSU, light weight
Tail nut and socket round nut are color coded to prevent mis-insertion
Multiple colors to choose from (gray, blue, yellow, black, red, green and white) Positioning device: double reed lock, keyway to prevent rotation
Mechanical life: 3000-5000 cycles
Waterproof IP rating: IP50
Salt spray corrosion test:> 48h
R edness: Suitable for use under high vibration and shock conditions.
Assembly method:
1.Pass the cable through the tail nut① and the cable clamp②. Solder to the corresponding position of the insulator assembly③.
2.Install the cable clamp② to the welded insulator assembly③. Note that the protrusion of the cable clamp② corresponds to the groove of the insulator③.
3.Insert the insulator assembly③ into the plug assembly④, noting that the protrusions on the cable② are to fit in the recesses in the plug assembly④.
4.Install the tail nut 1 into the plug assembly④ and tighten the tail nut.
Price Terms: | EX-factory price |
---|---|
Payment Terms: | 100%TT |
Packing: | Blister package |
Lead Time: | one week |
