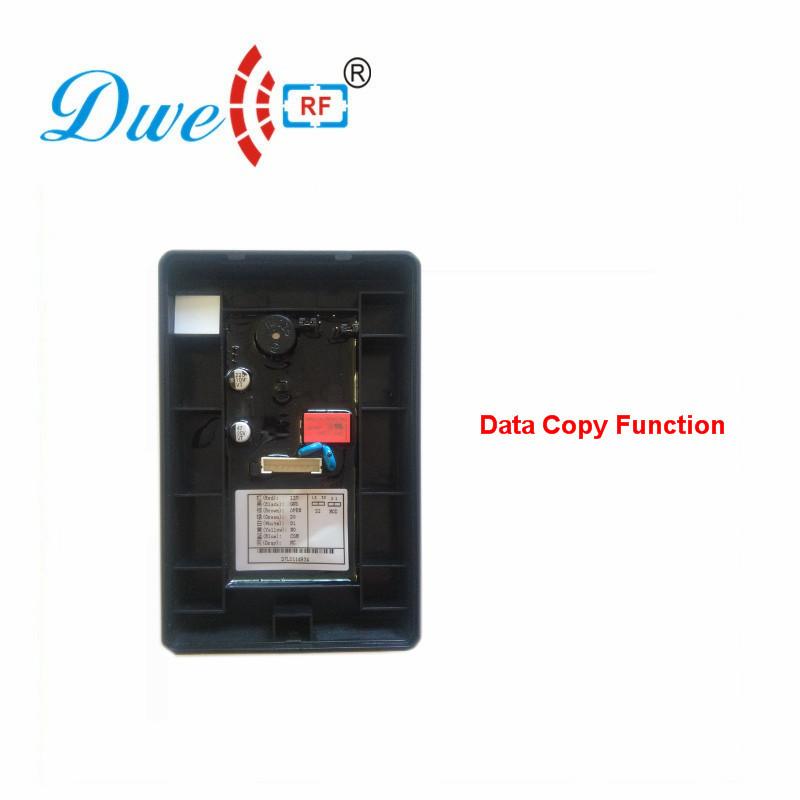

Standalone access controller 15000 users DW-H2

· Features:

· Card management

· 15000 user

· Aesthetic appearance and long service life

· High quality and high security.

· Wiegand 26 output

· Built in Buzzer

Specification:

· Input Voltage: 12V +/- 10% DC (Recommended 12V DC)

· Input current: <100 mA

· User Capacity: 15000 User

· Card Type: RFID/EM compatible card or 13.56mhz MF cards .

· Frequency: 125Khz/13.56MHZ

· Read range: 10-80mm

· Wiring connections: Electric Lock, Exit Button, Bell,

· Ambient temp: -20 degree  ~ 70 degree

· Operating Humidity: 10%- 90% RH

· Dimension: 114mm x 74 mm x 18mm
