| Model: | LC-PM1-200XT L |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | SD card pad printer , tanpon printer , pad printing machine |
| Price: |
US $4500
/ SET
|
| Min. Order: | 1 SET |
| Last Online:25 Dec, 2024 |

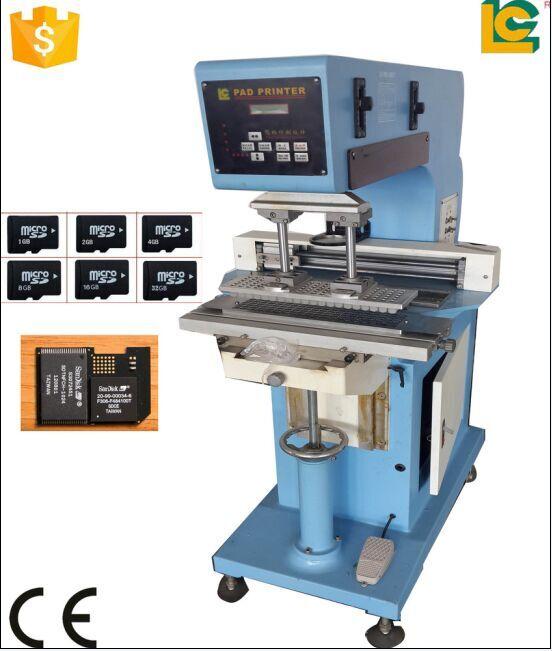

LC-PM1-200XT is use for some pad printing special parts, too length, too width, ink cup could transverse flow moving, so that, a most big size pars it is can pad printing also.
The transverse closed cup with a print area of 85 mm diameter. Is an ideal for synchronizing with our rotary indexing systems. It is ideal for printing onto rulers, catheters, syringes, pen clips, pen barrels, reflector tubes, electrical, electronic housings, badminton rackets, pvc/rubber pipes and pvc casing etc. The system is capable to print images as long as o 380-400 mm x 15-20 mm Application specific synchronization and mounting packages can be tailor made to meet your specific requirements.
The model comes with a standard working table for product up-down setting and a fabricated base as a standard feature
Advantage:
1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.
Specification:
1．Model NO ：LC-PM1-200XT
2．operation ：pneumatic
3．Printing Colors：1
4. Max. printing area :100x450 mm
5．Plate area 150*550 mm2
6．Sealed ink cup diameter：￠150mm
7. Max printing speed：1600PCS/H
8．Wattage：220V/ 50HZ 110V/60HZ
9．Air pressure: 6 Bar
10. Machine size:860*460*1400mm(LxWxH)
11. Machine weight ：250kg
Free Fitting :
1.one pcs pad steel plate
2.one pcs silicone rubber pad
3.one pcs jig
4.tooling box
5.English specifications
