| Model: | GR-1340 |
|---|---|
| Brand: | Gaorun CNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Woodworking |
| Label: | Surface engraving , 3D engraving machine , Multi function |
| Price: |
US $8500
/ set
|
| Min. Order: | 1 set |
| Last Online:23 Aug, 2018 |

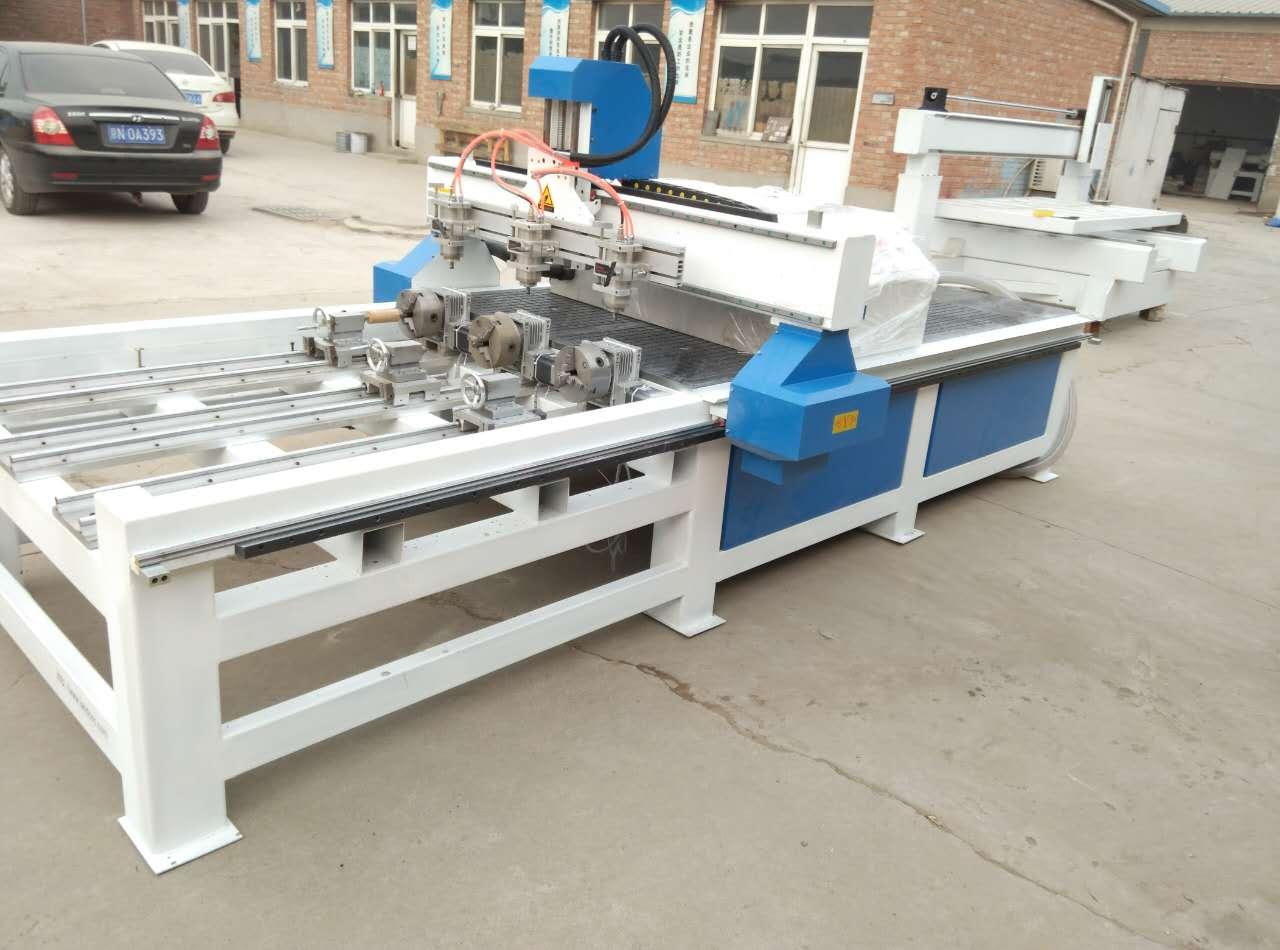

Multi-Function CNC router GR-1340
Parameters
|
Machine type |
Wood working machine for surface and 3D engraving |
|
Machine character |
Non-independent three spindle CNC router |
|
Working area |
1300mmx4000mm |
|
Driving system |
Servo Motor |
|
Spindle power |
1.5kw/2.2kw |
|
Max moving speed |
20000mm/min |
|
Working dictate |
G code, PLT, ENG, UG |
|
Control system |
DSP panel /Nc studio |
|
Working voltage |
AC220V/50HZ( optional 380v) |
|
Spindle speed |
3000-24000rpm |
Features
1. Multi-spindle and multi-functions CNC router is a professional machine
for art crafts, stair armrests, furniture legs, roman column, flat panel
furniture, hollow texture and embossments.
2. This machine especially is applied to big size or mass
production. Because it not only can work on the same design
with multi-spindle at the same time, but also can do surface
and 3D engraving on one working stable.
3.This machine can greatly improve working speed and
have the work done faster with high accuracy, which is economical and substantial, can make mass production with good quality to save your time and cost.
