Product Description:

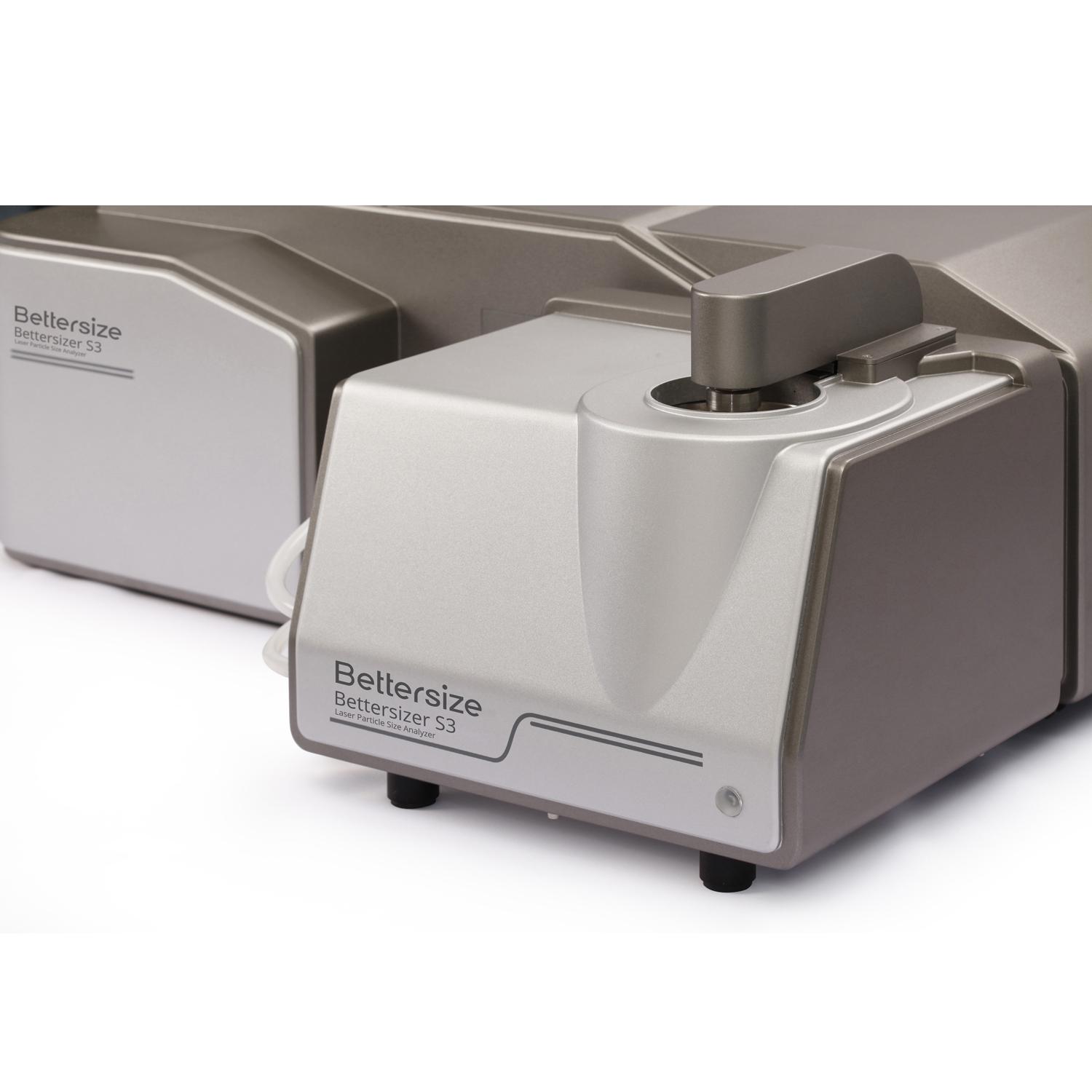

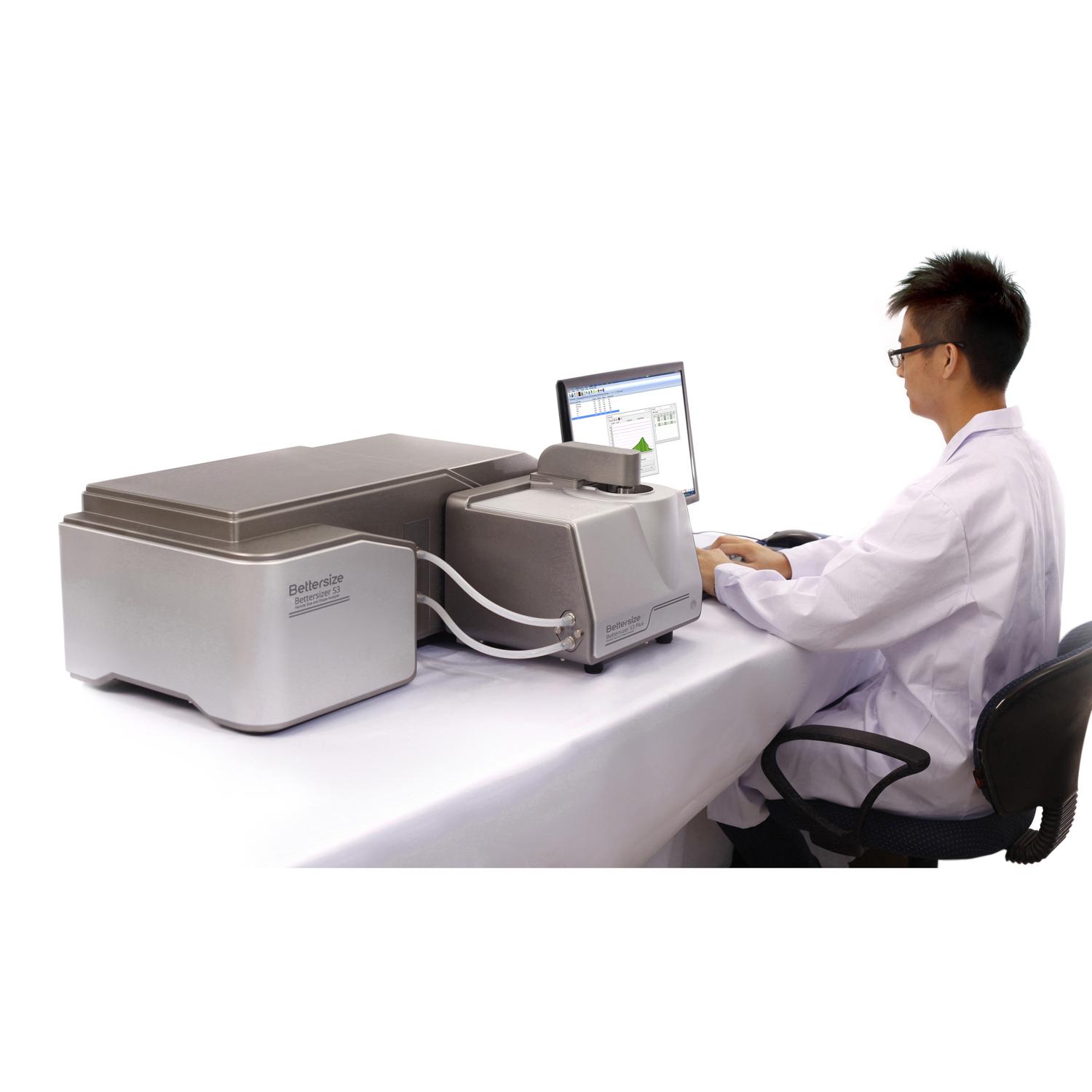

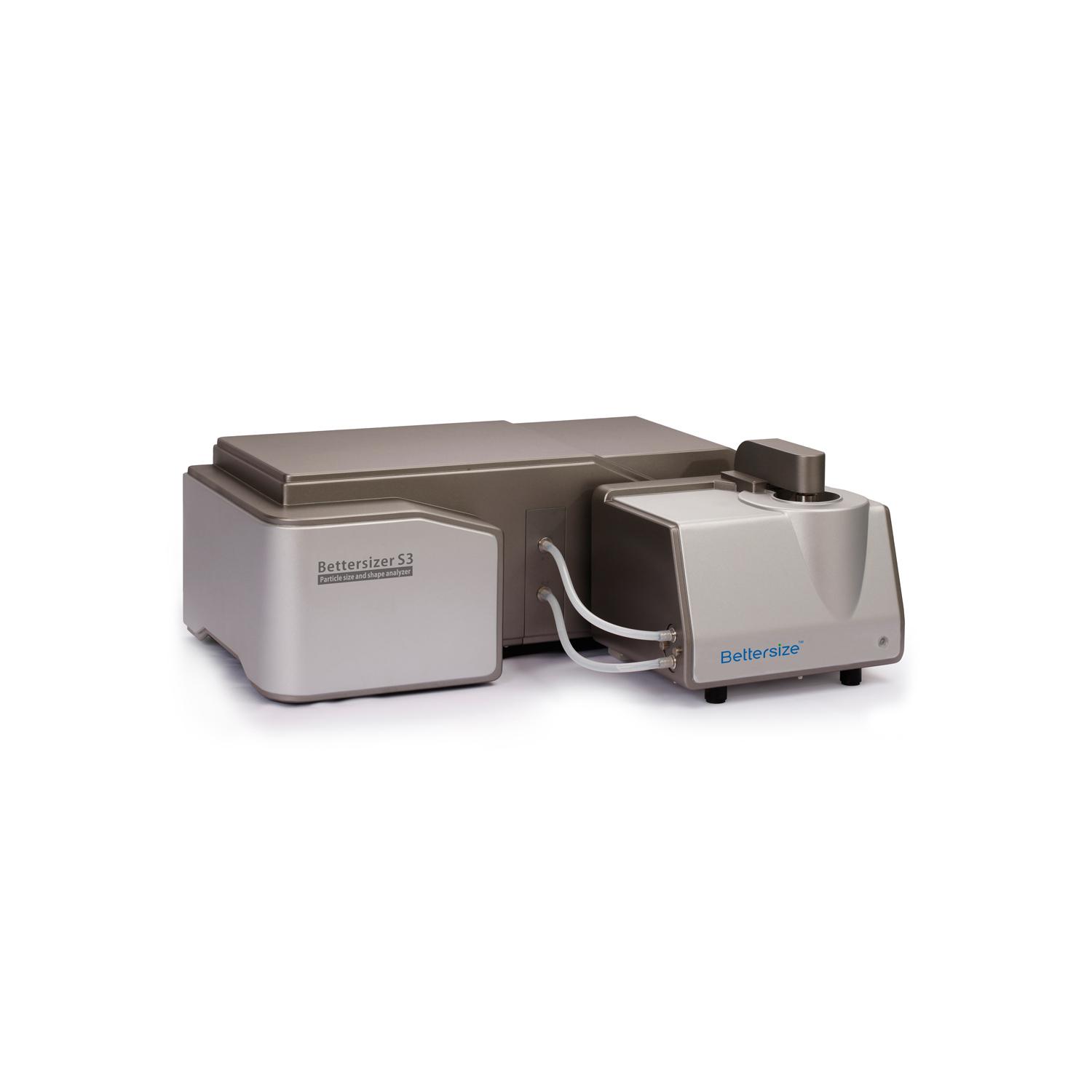

Bettersizer S3 represents the latest Bettersize particle size analysis technology for wet dispersion solution. Measuring range from 0.01μm to 3500μm can meet the most stringent requirements of industries and research centers. DLOIS and automatic refractive index measurement ensure the accuracy and repeatability of results. SOP and fully automatic circulation & dispersion system ease the task of analysis and improve users experience.

Features:

- Smart Analysis of Particle Size and Particle Shape !
- Mie Scattering Theory !
- 96 Photodetectors !
- Ultrasonic Wet Dispersion !
- SOP Full-automatic Testing !
- Dual Lenses Optical System !
- Automatic Centering Function !
- Automatic Circulation and Dispersion !
- Test Report Conversion !

- Refractive Index Measurement for Unknown Powder Material !
- Accuracy Calibration Function !
- Automatic Water Supply !
- Real-time Test Result Monitor !
- Automatic Water Level Monitor !
- Dew Point Temperature Monitor !
- Anti-corrosive Pump Design !
- Multi-language Software System !

Parameter:

Model: Bettersizer S3
Size Range: 0.01-3500 um
Sampling Method: Ultrasonic Wet Dispersion Built-in Automatic Circulation and Automatic Dispersion Sampling System
Repeatability Error: ≤0.5%
Accuracy Error: ≤0.5%
Dual Peak Resolution: ≥1.65
Measuring Principle: Mie Scattering Theory
Measuring Way: SOP (Standard Operation Program)
Fastest Measuring Speed: ≤10 s
Laser Light Source: Solid State Laser
Optical Systems: Dual lenses & Oblique Incidence Opticlal System, Automatic Centering , Automatic Testing
Dew Point Temperature Testing: yes, the instrument has this function.
Detection Angle Range: 0.02-165°
Refravtive Index Measuring Range: 1.4-3.6
Operating System: Win XP / Win 7/ Win 8/ Win 10
Connection Port: USB 2.0 or USB 3.0
Photodetector Quantity: 96 pcs
Ultrasonic Disperser Power: 50 W
Circulation Pool Capacity: 600 ml
Circulating Flowrate: 3000 - 8000 ml/min
Voltage: AC220V , 50/60Hz
Volume , Weight: 820x610x290mm , 47 kg

Packing:

1. Using the thickened cartons;
2. Thick foam board and buffer air bags are used inside of the carton to protect the instrument.
3. Using the wooden cases made by the plywood outside the carton to further protect the instruments;
4. After the product is packaged, we will carry out the package drop test to further ensure the safety of the instrument for long distance transportation.

Our Services:

Within One Year Warranty:
1.Free provide spare parts.
2.Send engineer to maintain (User pay the round-trip tickets).
3.Send back to maintain (Both sides share the half freight).
Beyond One Year:
1.Should breakdown result from misuse or out of warranty, two sides negotiate the site & method of    maintenance. Buyer pays the expense.
2.Consumable spare parts and articles etc. are not guaranteed.

Company Information:

  Dandong Bettersize Instruments Ltd was founded in 1995 and is the largest manufacturer of particle size instruments in China. Currently, there are nearly 150 employees. Having achieved 43 patents (including 15 invention patents); 16 software Copyrights and one trademark. Overseas agents: the USA, Germany, South Korea, Russia, India, Brazil, Argentina, Vietnam, the Czech republic, Mexico, Poland, Pakistan, Malaysia, Indonesia, Turkey, Italy, Taiwan, Hong Kong... Domestic users are distributed in 32 provinces and cities across China and International users are located in 50 countries on four continents, with a total of more than 10000 users, and the quantity is still increasing greatly.
  Sincerely hope to have the chance to have a good cooperation with all the end users and distributors ! Dandong Bettersize Instruments Ltd welcomes your visiting !

FAQ:

Q1: Do you provide the sample testing free ?
       Yes. According to the sample you send us, we recommend an appropriate instrument for you. Test your sample freely by the appropriate instrument and send you our test report.

Q2: What is a minimum order ?
      One set instrument.

Q3: How should I pay ?
     We accept T/T in advance payment before shipment. If you want to pay by other terms, we can negotiate with each other.

Q4: Can I become an exclusive distributor of Bettersize Instruments in my area ?
     Yes. We welcome you to join our Bettersize.

Q5: What about product pricing and specifications ?
      Because we have many different models of particle size analyzers , please tell us the powder name you want to test. Then we will recommend the most suitable instrument for you, and then we will send you our quotation and technical parameter.

Q6: As a zero-basis starter, I am afraid that I can not master the operation method, and some misoperation will cause some problems of the instruments.
       Take it easy, please. Our instrument instroduction is very detailed and easy to understand. Along with the instrument, we also send you DVD guidance. Please believe in our professional service team and professional guidance.

Q7: What are your working hours ?
      Monday to Friday: 08:00 AM - 10:00 PM. During my off-work time, if you have any inquiry, you can leave message to me or you can also call me by 0086-15141557696.

Q8: Can we visit your factory?
   Yes. You are warmly welcomed to visit our factory at any time. After you visit our factory, you will have more confidence with us and will be happy to cooperate with us !
