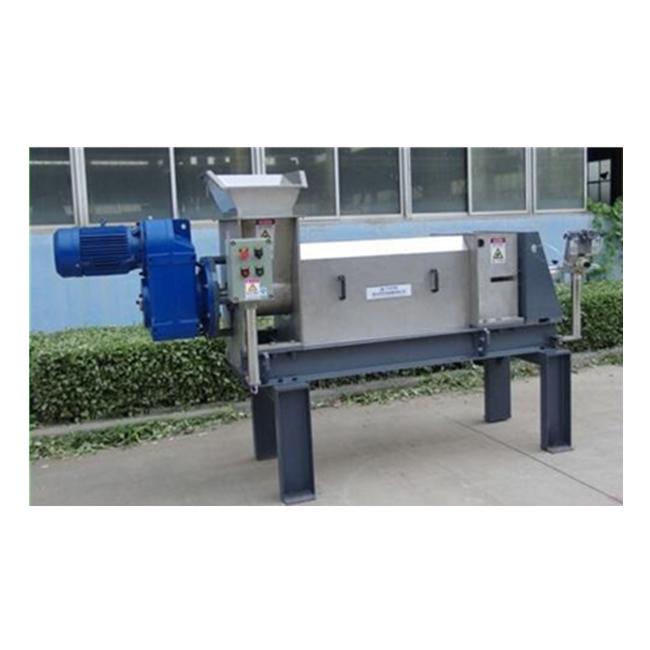

~Screw Press Dewatering/Juicing Machine

I. Product introduction

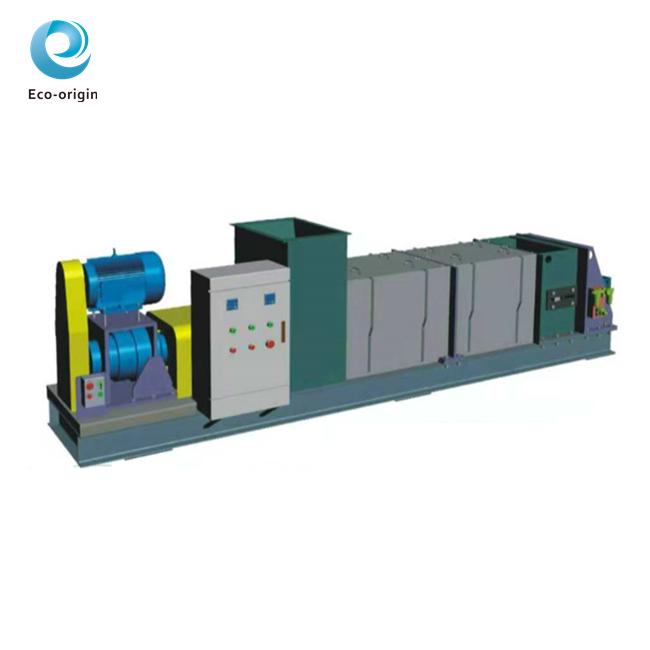

The screw press is a device that uses physical extrusion to dewater the device. The device includes driven System, feed box, spiral auger, screen, pneumatic material blocking device, sump, rack, etc.
the material enters into the equipment from the feeding box and is subjected to progressive pressure extrusion under the conveying of the spiral auger.

Excess water is discharged from the liquid outlet through the screen, and the moisture-removing material is continuously transported by the spiral auger.

The top opening and blocking device is discharged from the discharge port by the discharge port.
It is truly low energy consumption, high output, low moisture, and secondary circulation for material to save a lot of processing costs.
II. Working principle
The dewatering process of the screw press dewatering machine is divided into two stages. The first stage uses the screw auger to dehydrate. The spiral auger has three sections: the transmission section, the compression section and the discharge section, and the transmission space become smaller gradually to press the materials stronger and make the material extruded water.

The second stage uses a material-blocking device to dewater. When the material enters into the discharge section of spiral auger, the spiral auger applies axial thrust to the material to push it out of the discharge port, while the pressure device is pressurized by the pneumatic device which applies a reverse force to the material to be pushed out, thereby forming a pressing force to the material to realize the dehydration.

III. Main Advantage
1. Aiming at the complex material of biogas residue, it is not afraid of wear and tear, the effluent is smooth, and the purpose of press separation is realized by the effective cooperation of screw and screen mesh.

2. The extruding separator has successfully solved the problem of screen mesh clogging. The core technology is the cooperation of spiral and screen mesh to realize the self-cleaning function of screen net, that is, the special device and screw can interact to agitate the material. One is to avoid holding the shaft of the material, the other is to realize the material particles rubbing off the clogging material of the screen in the process of spiraling forward.

3. The control of tail cone is different from that of spring, hydraulic pressure, handwheel and so on, but the pneumatic device with very low maintenance cost can effectively realize the "back pressure" control of material press by special design. That is to say, after a certain press pressure is set, the device will automatically realize the control of the press force of the material, and avoid the slag from suddenly drying and humidifying. At the same time, the extruding separator is especially suitable for assembly line operation because of adopting the principle of superposition compression. It avoids the malpractice that the ordinary press needs to be centralized.

4. The special angle design of the feed box can effectively prevent the "bridge building" phenomenon of some sticky materials. Although it is a small detail, once the "scaffolding" is produced at the production site, it will cause the material to stop without feeding and have to stop, which is very troublesome. So the details decide the success or failure;

5. the press sieve screen all two half screen, for food processing and fruit and vegetable processing industry, can be easily opened and thoroughly cleaned;

6. sandblasting treatment, beautiful shape, simple structure, low speed transmission, high torque output, low noise, no vibration, at the same time drive less parts, need to be replaced less easily damaged parts, low maintenance cost. It’s your solid-liquid separation and processing of fruits and vegetables choice.

IV. Application range

1.Juicing for Fruit and vegetable as well as root, stem, leaf, flower, fruit, etc. Such as apples, pears, ginger, grapes, alfalfa, pineapple, kiwifruit, mulberry, blueberry, pure seabuckthorn fruit, orange, wolfberry, and so on; chrysanthemum, peony flowers, roses and other flowers; beet, red fruit, Jerusalem taro, aloe, palm, olive, pomegranate, etc.

2. Solid-liquid separation of solid or liquid materials and press and dehydration of waste residue in various industries.

Food processing: carrot, coconut, mushroom, glutinous rice lees, seafood waste, onion residue, winter melon residue, bean sprouts residue, citrus comprehensive utilization, tobacco, beet dregs, Jerusalem artichoke, oil residue, coconut bran, traditional Chinese medicine dregs, tea dregs, vinegar grains, Beer meal, coffee residue, corn peel, furfural residue, surimi, shrimp dregs, chicken hair chicken dregs, etc. Soybean protein, pectin, xanthan gum, etc.;

Energy: biogas residue, sweet sorghum, water gourd, cassava dregs, sweet potato dregs, bagasse, seaweed, oil dregs, etc.

Other: filter residue, diaper waste, cellulose, medical waste, rubber waste;
3. fruit and vegetable waste, kitchen waste, domestic waste squeeze dehydration; food waste, organic matter and inorganic matter separation;

4. dehydration of various feces, such as pig manure, cow dung, duck dung, and crushing separation of slaughterhouse sewage;

5.Dewatering of sludge, pulp, and recovery of plastics.

V. Product model

Model         Capacity (T/H)   Screw Diameter  (mm)   Rotary Speed(rpm)   Power (KW)    Overall Size L*W*H (mm)   Weight(T)
ECOY-120      0.1-0.3/0.26       120       30        2.2 OR 3         1900*420*700        0.5
ECOY-180      0.3-1/0.5             180      20        5.5                   2500*550*800        0.8
ECOY-250      0.8-3/0.93           250     16        7.5                   3100*650*900         1
ECOY-315      2-5/1.6                315     16        11                    4100*790*1320       2
ECOY-400      5-13/2                400      10        22                    4700*990*1420       4
ECOY-500      8-18/3.3             500       9         37                    6100*1200*1500     6
ECOY-630      15-35/4.2           620       9        45                     6800*1350*1650     7.5
ECOY-800      25-50/7              800       7        75                     7500*2300*2200       9
ECOY-1000    30-70/8.5         1000       6        90                     8100*2700*2600      12
