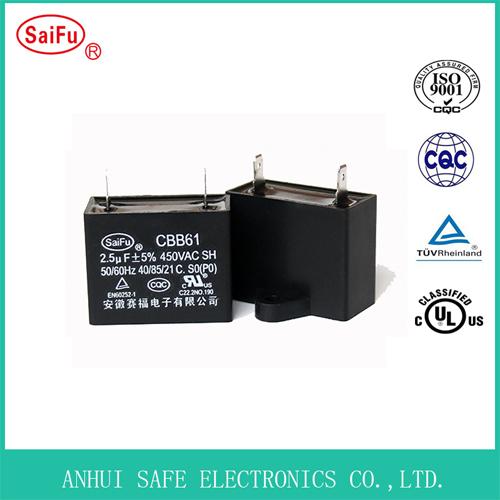

| Model: | CBB61 Capacitor |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Capacitor |
| Label: | CBB61 Fan Capacitor , Insert Capacitor , Capacitor for Start |
| Price: |
US $3.95
/ pc
|
| Min. Order: | 1 pc |
| Last Online:19 Aug, 2020 |
| Technical Specifications |
| Model NO. | CBB65 Capacitor |
| Type | Fan Capacitor |
| Structure | Single Capacitor |
| Manufacturing Material | Polypropylene |
| Electrolyte | Polypropylene Film |
| Reference Standards | GB/T 3667.1(IEC60252-1) |
| Climatic category | 40/70/21,40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety production | S2 |
| Voltage range | 220VAC 370VAC 440VAC 450VAC |
| Capacitance range | 2~100UF |
| Capacitance tolerance | ±5% ±10% ±15% |
| Dissipation factor | 20*10-4(100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000MΩ.uF(100Hz,20ºC,1min) |
| Altitude | ≤2000m |
| Remain voltage when put into operation | No more than 10% of rated voltage |
| Maximum allowed voltage | No more than 1.1 times rated voltage |
| Maximum allowed current | No more than 1.3 times rated current |
| Package Type | Export Standard Carton for CBB65 Capacitor |
| Production Capacity | 500,000PCS/Month |
| MOQ | 1PCS |
| Size | Available |
* Note: The Composite Capacitor can be also customized producing according to our customer's request.
***Product Description***
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.The elements of CBB65 Capacitor are tightly wind by high-velocity winders and canned in aluminum cases.The second generation of machine anti-explosion design is selected ad blast -proof secure measure for our capacitors.And the reliability is more affirmatively enhanced.
***Dimensions(mm)***
* Note:1.Other capacitance and dimension serials can be specified in compliance with customer's request. 2.Terminal forms can be made in conformity to the requirements of agreements with customers. |
Specifications | Terminal | Size | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ***Appearance & Application***
Installation Type: Through Hole Shape: Cylinder or Ellipse Capacitor Case: Aluminum Case Application: CBB65 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Automobile,Fan,etc. CBB65 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency for family air conditioners and high power illuminators for the sake of power factor compensation. |
***Packing&Delivery***
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo
***Why you choose us?***
1.Leading tachnology: Have a number of invention patents
2.Stable quality: The company has the world's most advanced production equipment,and implement ISO9001 standard management.
3.Reasonable price: Executive"Industrial products 10% Profit in the first."
4.Large inventory: This is the guarantee of the timely delivery.
5.Fexible production: User-specific products,starting from the next single.
6.Internet Plus manufacturing: Through Ali,MIC,Baidu,GOOGLE,official website and community forum Sales.
7.Cordial service: 7*24 hours online,prompt reply and timely delivery.
*Welcome to Contact Us*
Company Name: Tongling Tongfei Technology Co.,Ltd.
Add: No.695 North Taishan Road,Tongling,Anhui,China
Tel: 0086 0562 2821018
Fax: 0086 0562 2821558
Mobile Phone: 0086-13305620368 (Helen Hu)
*PLEASE NOTE:
ALL THE PRICES ARE NEGOTIABLE UPON SPECIFICATIONS, IF YOU HAVE ANY INQUIRY, WELCOME TO CONTACT US.
*For More Product Information, Please View Our Website:
www.film-capacitor.com
| Payment Terms: | T/T、L/C、Western Union、Paypal、RMB |
|---|---|
