| Model: | HDMX0012M1 |
|---|---|
| Brand: | ASK |
| Origin: | Made In China |
| Category: | Computers & AV Digital / AV Equipment / AV Peripheral |
| Label: | HDMI Matrix , HDMI4in2out , HDMI4x2 |
| Price: |
US $77
/ pc
|
| Min. Order: | 10 pc |
| Last Online:29 Dec, 2018 |

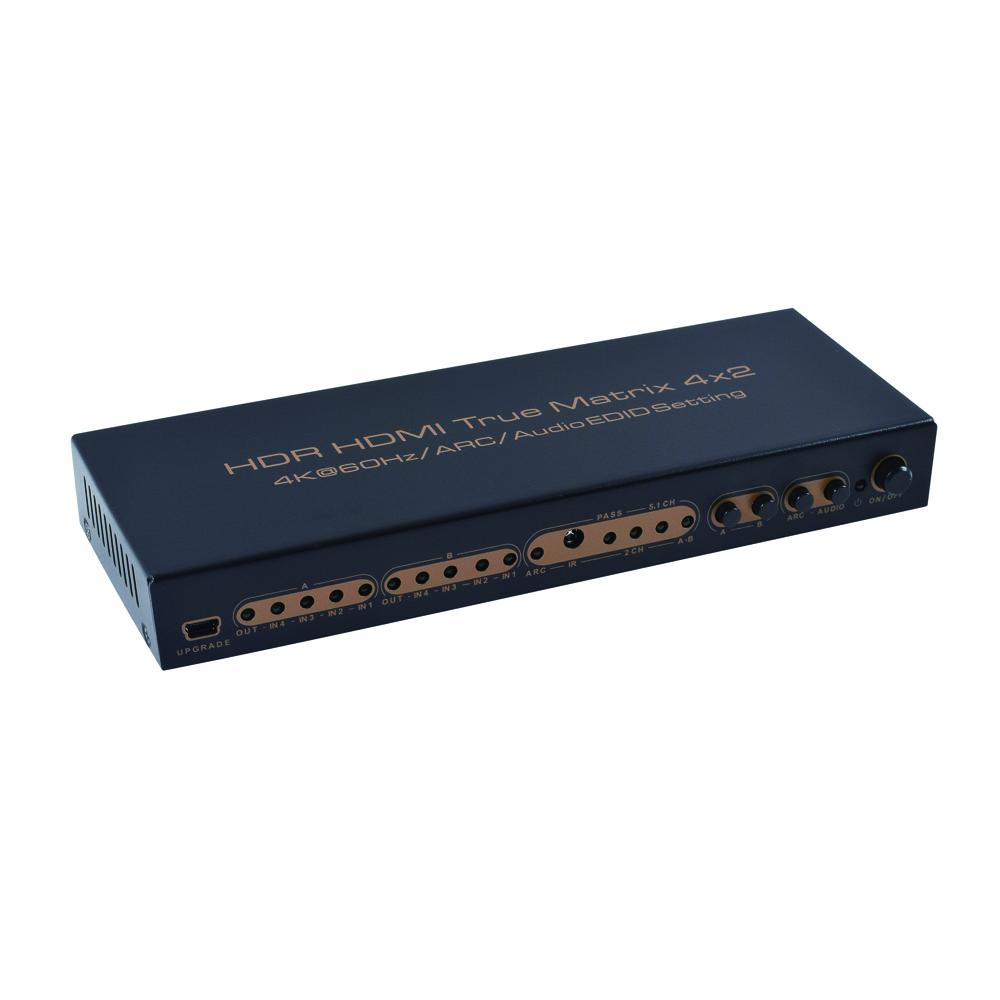

hdmi 4x2 true matrix switcher
hdmi 4x2 true matrix switcher Accessories Content:
1. Main Unit
2. Power Adaptor
3. Remote
4. User Manual
| SPECIFICATIONS: | |
| Model No. | HDMX0012M1 |
| Model name | HDR HDMI True Matrix 4x2 |
| Input ports | HDMIX4 |
| Output ports | HDMIX2,RCAX2,Optical X1 |
| Video format | 480P/720P/1080P/2160P(Supports HDR/Dolby Vision) |
| Deep color | 8/10/12Bit@480P/720P/1080P 8Bit@2160P |
| Audio format | Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc. |
| Transmission bandwidth | 25~600MHz |
| Transmission rate | 0.75~18Gbps |
| IR distance | ≥5m |
| Input cable length | 2160P/AWG 26 ≤5m;1080P/AWG 26 ≤10m |
| Output cable length | 2160P/AWG 26 ≤5m;1080P/AWG 26 ≤12m |
| Power adapter specification | Input: AC 100~240V |
| Output: DC 5V/1A | |
| Max working current | 500mA |
| Working temperature range | -5 ~ +40℃ |
| Working humidity range | 5 to 85%RH(No Condensation) |
| Storage temperature | -15 to 55℃ |
| Storage humidity | 5 ~95%RH(No Condensation) |
| Size | 250x75x30 (mm) |
| Weight | 440g |
| Accessories | Manual, Remote, Power Adaptor |
Standard Package
Blister Box+ Instruction book + white box .Mostly,we could provide our Ai. diecut for customer to add their own design.Or We could also do customized package as customer's requirements.
Company Profile
We are the earliest developers and manufacturers committed to HDMI audio and video application system in China since 2004 with holding 20 patents.
By service our customers all over the world, we have consisted a super strong R&D team make up by 30 engineers which most with 6-10 years experience in HDMI and HDMI accessories products. Backed with vast experiences in design, engineering, manufacturing, we have build long term business with Samsung, Song, LG, Skyworth, TCL and Hair. We are not just manufactory for HDMI products, we are also provide HDMI application resolution for customer.
Our Service
1. About sample: Sample can be ready with 5 days, for customized sample lead time is 20 days.
2. Payment service: T/T,30% deposit,70% before the dilivery.
3. After-sale service: We offered with 1 years quality guarantee.
4. Response service: We will reply you within about 24 hours.
5. Customize service: OEM and ODM.
Provided Service
1) Damage Requiring service: The unit should be serviced by qualified service personnel if:
2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety checks to confirm that the unit is in proper working condition.
FAQ
A.How long about the samples ?
A1:About 3-5 days.
B.How long can be ready about the goods ?
B1:It usually takes about 30 working days,it is based on the detailed QTY.
C.Can you offer the OEM and ODM service ?
C1:Yes,of course,as we have our own design team.
D.What is the type of your company ?
D1:We are the earliest developers and manufacturers committed to HDMI audio and video application system in China since 2004 with holding 20 patents. We are also offered with product solution.
E.What is your main market?
E1: Asia Australasia Central/South America Eastern Europe Mid East/Africa North America Western Europe
