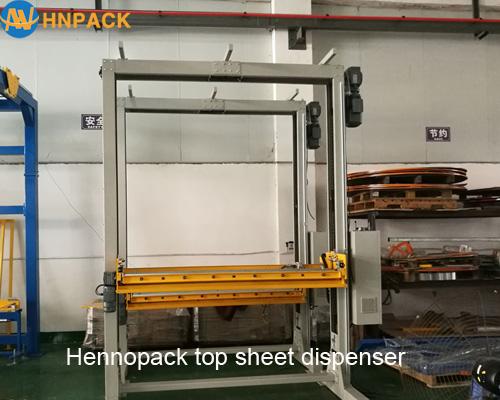

Hennopack Fully Automatic in line paller top sheet dispenser Wrapping Machine

In-line Top Sheet Dispenser cover wrapping machine can be integrated with ms 303 Fully-auto Pallet Wrapper or mr402 Rotary Arm Wrapping Machine, to achieve top cover and wrapping of loads. So the loads can be fully prevent from rain drop.

Features:

• This is conveyorized wrapper for automated unmanned packing lines.
• Machine automatically detects loads and load height, and starts dispensing process.
•  Automatically cut top sheet by motor driven knife.
• Top Sheet changing location for easy sheet roll change.
• Top sheet dispensing speed and conveyor speed variable.
• Top sheet off alarm.
• This machine could be integrated with AP303 Fully Automatic Pallet Wrapper or AP402 Fully Automatic Rotary Stretch Wrapper.

Specifications:
Load size: 1200mm L x 1200mm W max
Load height: 2100mm max
Wrap speed: max 40 pallets/hour
Conveyor speed: 3 - 12 mts/min
Top sheet pulling speed: 3 - 12 meters/min
Top sheet cut method: motor driven knife
Top sheet lifter motor: 0.37kw
Power supply: 3PH 380VAC, 50/60Hz
Top Sheet type: PE film, thickness 50-75microns, width1600-1800mm, net weight 120kgs max
Options:
1. Load size and height could be custom made to specific applications.
2. Safety fencing for better protection of operators
3. Under conveyor.
4. Top sheet lifting crane for loading of sheet roll.
