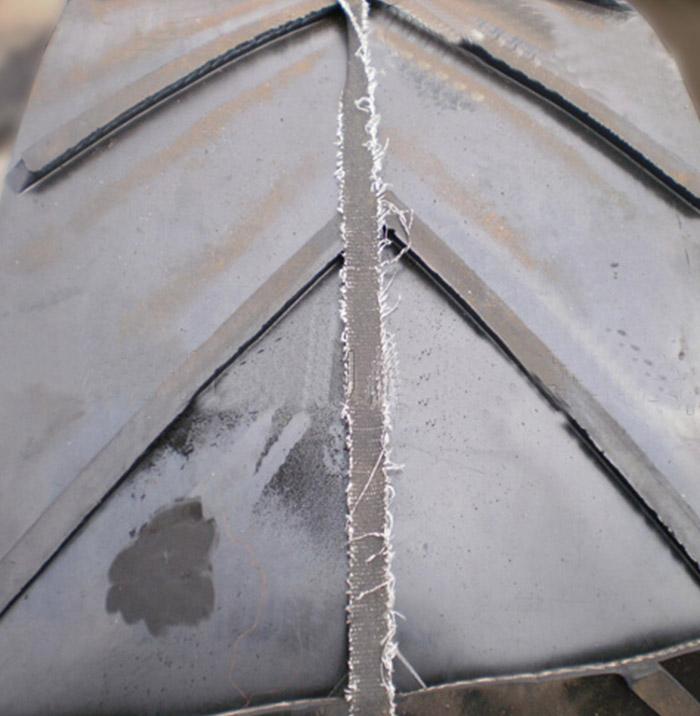

Pattern Conveyor Belt, Chevron Conveyor Belt, Ep 400 3 Conveyor Belt Wholesaler
1. Applications
Pattern conveyor belt (chevron conveyor belt) is suitable for transporting powdery, granular and little lump materials at angle 0~40 degree. Pattern shape can be made as per clients’ requirement with different pattern height.
2. Physical properties of rubber cover (before aging)
|
Grade |
Tensile Strength/Mpa ≥ |
Breaking Elongation/% ≥ |
Abrasion Loss/mm3 ≤ |
|
H |
24 |
450 |
120 |
|
D |
18 |
400 |
100 |
|
L |
15 |
350 |
200 |
3. Ply adhesion
|
Item |
Ply to ply |
Rubber cover to ply |
|
|
Rubber cover thickness ≤1.5mm |
Rubber cover thickness >1.5mm |
||
|
All samples average value/ (N/mm) ≥ |
4.5 |
3.2 |
3.5 |
|
All samples min peak value/ (N/mm) ≥ |
3.9 |
2.4 |
2.9 |
Huayue started business by producing rubber belts since 1982. It has been one of Solid Woven Convey or Belts manufacturers and is the major factory of fabric conveyor belt and Steel Cord Conveyor Belt in China.More information please view here.
