| Model: | RHP-150 |
|---|---|
| Brand: | REALE |
| Origin: | Made In China |
| Category: | Industrial Supplies / Environment Protection Facilities / Other Environment Protection Facilities |
| Label: | environmental test , test chamber |
| Price: |
US $7500
/ SET
|
| Min. Order: | 1 SET |
| Last Online:05 Mar, 2019 |

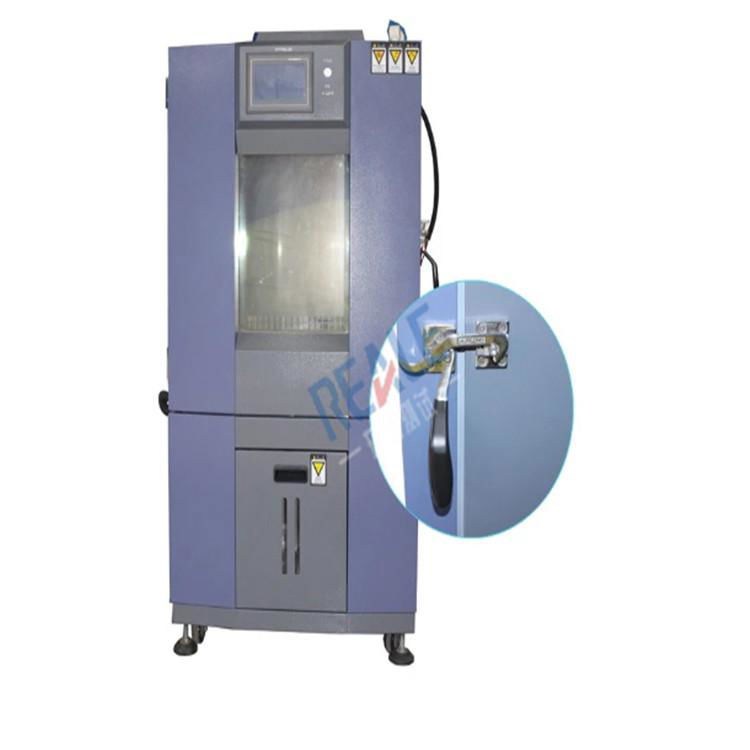

Product Application
Temperature test machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and easy program to edit. It can show the setting values and operative time.
|
SPECIFICATIONS |
||||||
|
Model |
RHP-23 |
RHP-80 |
RHP-100 |
RHP-150 |
RHP-225 |
RHP-408 |
|
System |
Balanced temperature & humidity control system |
|||||
|
Temp. range |
-70°C~150C° |
|||||
|
Humidity range |
20%~98%R.H |
|||||
|
Temp. fluctuation |
±0.5℃ |
|||||
|
Humidity fluctuation |
±2.5%R.H |
|||||
|
Temperature deviation |
±2.0℃ |
|||||
|
Humidity deviation |
±3%RH(≥75%)/±5%RH(<75%) |
|||||
|
Heat up time |
-20°C~150°C 45 minutes, -40°C~150°C 60 minutes, -70°C~150°C 75minutes |
|||||
|
Pull down time |
20°C~-20°C 40minutes, 20°C~-40°C 60minutes, 20°C~-70°C 85minutes |
|||||
|
Internal dimension (CM) |
W30 |
W40 |
W50 |
W50 |
W60 |
W68 |
|
H30 |
H50 |
H50 |
H60 |
H75 |
H80 |
|
|
D25 |
D40 |
D40 |
D50 |
D50 |
D75 |
|
|
Interior material |
Stainless steel 304 |
|||||
|
Exterior material |
Backed paiting steel or stainless steel(SUS304) |
|||||
|
Insulation material |
Rigid polyruethane foam +glass fibre |
|||||
|
Cooling system |
1. Air cooled (Water cooled type is option)
2. Singl section/cascade type, hermetic/semitight compressor,CFC free refrigerant |
|||||
|

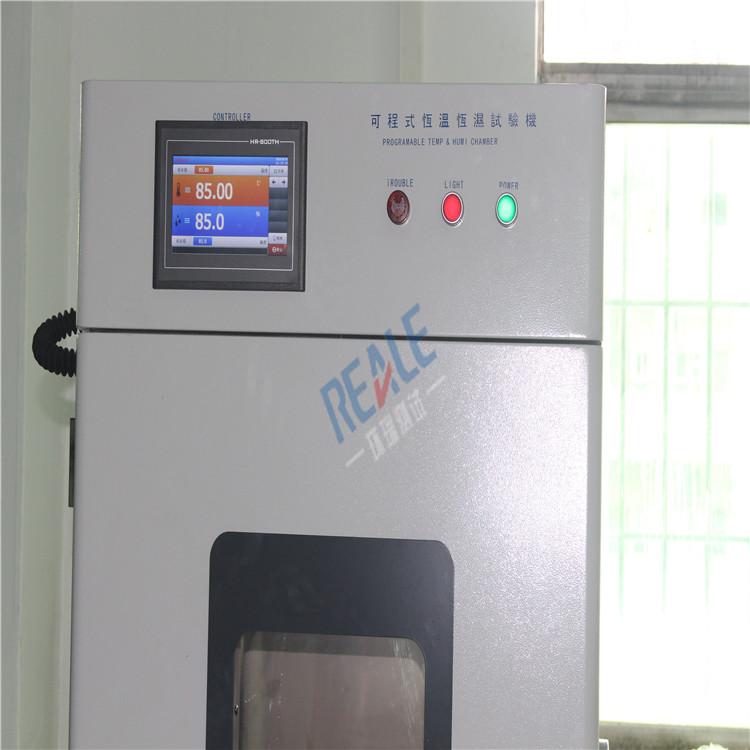

Controller |
Color LCD screen in English/Chinese, programing,communicating function |
|||||
|
Safety devices |
No welding wire switch, compressor overheating and over current protection, over temperature protection, blower overload protection, dry heating machine protector,low water protection, fault warning system. |
|||||
|
Standard accessories |
one observation window, one test hole, two sets of test rack, one floodlight, one indicator light, four moving wheels, one humidifying tank, 2meters of power cord, communication interface |
|||||
|
Power |
AC380V±10% 50HZ 3 phase 4 wires+ground wires |
|||||
