10M/100M Auto-adaptive Serial Device Server RS485 interface to Ethernet

Model:CK-204
Brand:ODOT
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment
Label:serial device server , serial server , serial server RS485
Price: ¥92 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Product Name: 4 serial ports to TCP/IP Converter

Model Name: CK-204

Function:

*Support conversion between RS232/485/422 and TCP/IP.

*Support serial server mode,Data transmission mode(Client function,Server function).

*CK204 series support two Ethernet port,with switch function.

*CK204 series port with photoelectric isolation.

*CK204 series support DNS.

*working temperature:-40~85℃.


Feature:

4 ports conversion between RS232 / 485 / 422 and TCP / IP Converter

*Industrial lightning protection, normal working during thunderstorms.

*Wide temperature range, adapt to harsher environments.

*Firm and compact construction, save space.

*IP 40, suitable for all kinds of harsh environments.

*DIN-Rail Mounting, easy to install and devices is free to move.

*Wide voltage range, adapt to any country voltage.


Specification
CK-204:
Ethernet port:
Ethernet port - 2
Rate - 10/100Mbps,self-adaption MDI/MDIX
Port - RS485(2),RS232(1)
Isolation protection - Electromagnetic isolation
Series Port:
Serial number and standard:RS485(4)
Isolation protection: Photoelectric isolation
Connect type:3.5mm Plug-in spring terminal
ESD protection:±16KV
RS-485 Terminal resistance:Built-in 120Ω
Data bit:7,8
Stop position:1,2
Checkout bit:No check, odd check and parity check
Baud rate:1200~115200bps
Software:
Providing configuration software: Odot VCOM Software
Providing testing software:Modbus Poll/Modbus Slave    TCP test assistant,Serial Port Utility
Mechanical:
Shell: metal shell
Installation method: 35mm Din-rail
Size:104*102*25mm
Work environment:
Temperature:-40~85℃
Storage temperature:-55~125℃
Relative humidity:5~95%(non-condensing)

Power demand:
input voltage:9~36 VDC
Power interface:3.5mm Plug-in spring terminal
Power consumption:Electric current Max.200mA 24V
Certification:
EMC:CE
Warranty:
Quality guarantee period:3 years

Contact:
P/WHATSAPP:+86 13778016510
W: odotautomation.com






Payment Terms:T/T, L/C at sight, western union(30% deposit and 70%T/T or L/C at sight before shipment).

Product Image

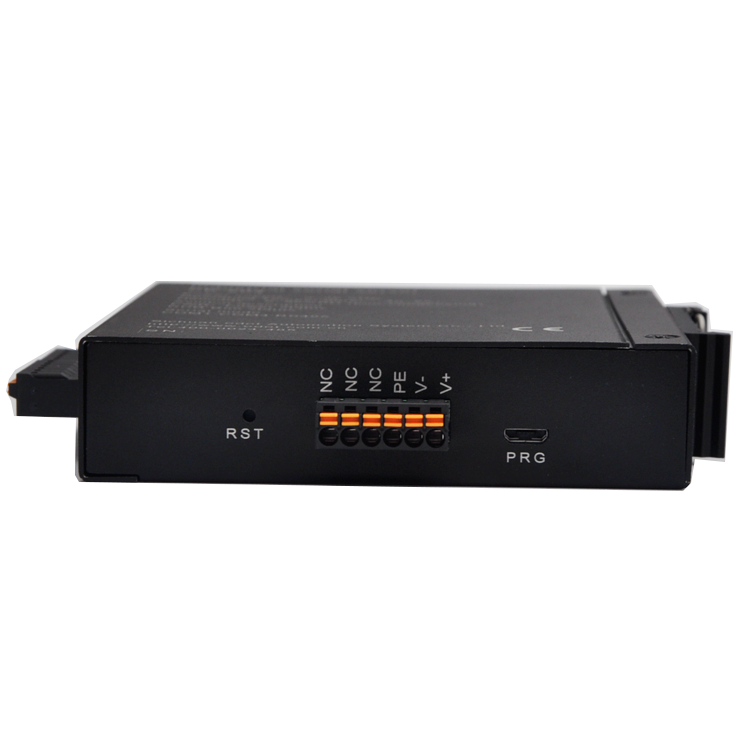

10M/100M Auto-adaptive Serial Device Server RS485 interface to Ethernet 1
Img 1

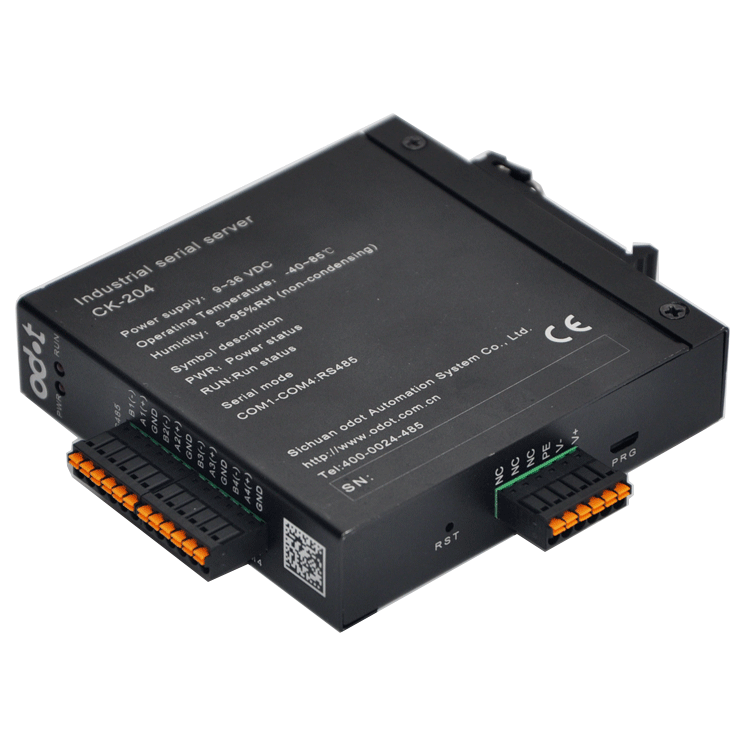

10M/100M Auto-adaptive Serial Device Server RS485 interface to Ethernet 2
