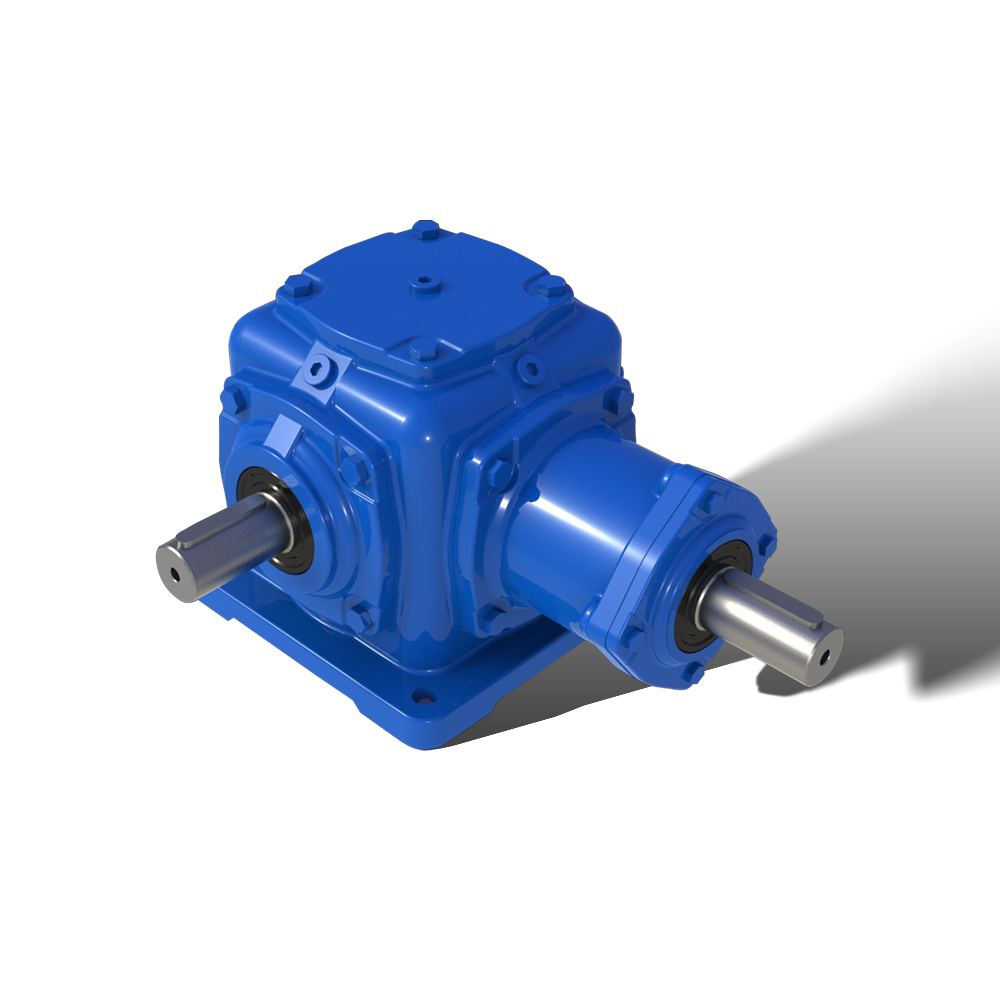

| Model: | 200M |
|---|---|
| Brand: | REDSUN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Transmission |
| Label: | bevel gearbox , STRAIGHT bevel , 200M gearbox |
| Price: |
US $60
/ pc
|
| Min. Order: | 500 pc |
| Last Online:18 Nov, 2024 |
Advantage:
1.Standard and various, ratio 1:1,1.5:1,2:1,3:1, all are exact ratio.
2.When the ratio is not 1:1 and pinion shaft is input, so cross shaft is reduced output.
3. When cross shaft is input, the pinion shaft is increased output.
4.Spiral bevel gear, stable transmission, low noise level, small vibration and strong loading capacity.
5.Double input shaft is available.
6.Multiple output shaft is available.
7.Any mounting position is available.
Main applied for:
1.Agriculture and food
2.Building and construction
3.Forest and paper
4.Metal processing
5.Chemical industry and environmental protection
Technical Data:
|
Cast iron/Ductile iron |
|
| Housing hardness | HBS190-240 | |
| Gear material | 20CrMnTi alloy steel | |
| Surface hardness of gears | HRC58°~62 ° | |
| Gear core hardness | HRC33~40 | |
| Input / Output shaft material | 42CrMo alloy steel | |
| Input / Output shaft hardness | HRC25~30 | |
| Machining precision of gears | Accurate grinding, 6~5 Grade | |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 | |
| Heat treatment | Tempering, cementiting, quenching, etc. | |
| Efficiency | 94%~96% (depends on the transmission stage) | |
| Noise (MAX) | 60~68dB | |
| Temp. Rise (MAX) | 40°C | |
| Temp. Rise (Oil)(MAX) | 50°C | |
| Vibration | ≤20µm | |
| Backlash | ≤20Arcmin | |
| Brand of bearings | China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK. | |
| Brand of oil seal | NAK --- Taiwan or other brands requested
|
Application Examples:
Packing&Shipping:
Our Company:
1.It is a professional company specialized in researching,developing and selling gearboxes which was founded in 2001.
2.Redsun factory occupies 35000 Sqm and 370 staffs.
3.The annual production capacity of speed reducer is around 70000 sets.
Our Workshop:
Our Exhibition:
Our Certification:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.
Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
