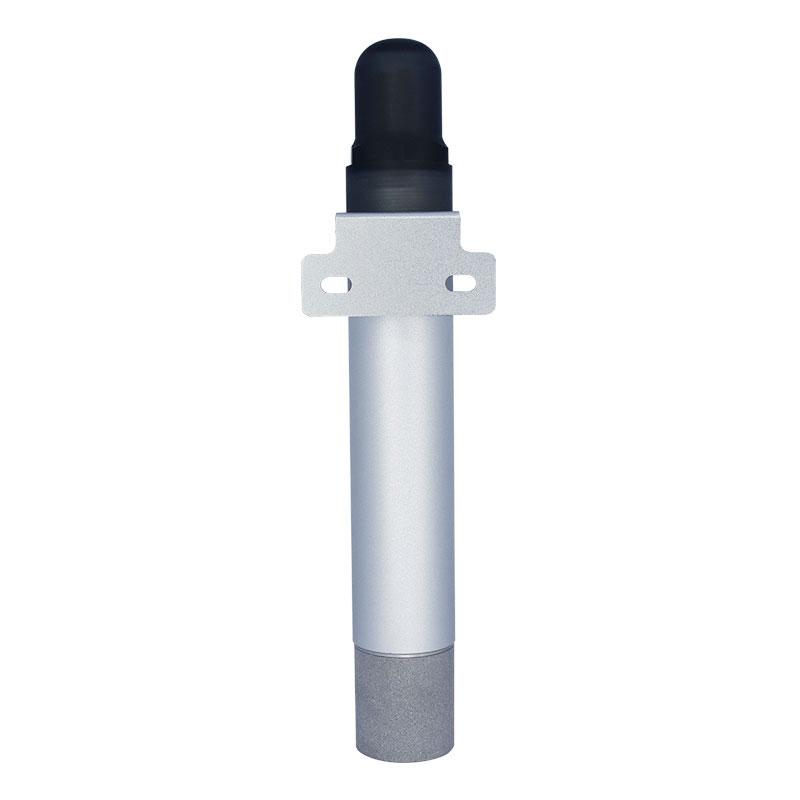

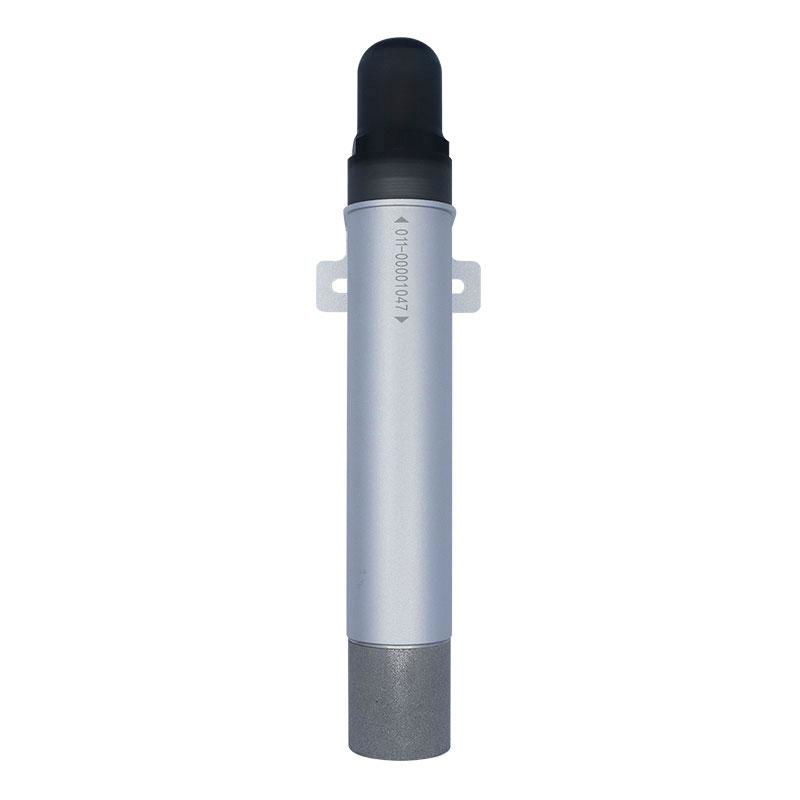

| Model: | XZ-DS01-TH2A |
|---|---|
| Brand: | thingsend |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | lora sensor , wireless sensor , temperature sensor |
| Price: |
US $70
/ pc
|
| Min. Order: | 1 pc |
| Last Online:04 Nov, 2020 |
Product Features:
● Install and work, light sensing triggering;
● Fluorescence-based optical technology
● Periodic inspection, period is settable;
● Automatic registering to fit with concentrator;
●Automatic routing to fit with repeater;
● Built-in Battery with 5-year lifespan;
● Lora wireless transmission can reach 5km;
● Centralized collection, multi-mode output.
Operation process
XZ-DS01-TH2A switch to different modes according to using way：
Sleeping mode：Sensor no work, no transmission, and sleeping with low consumption

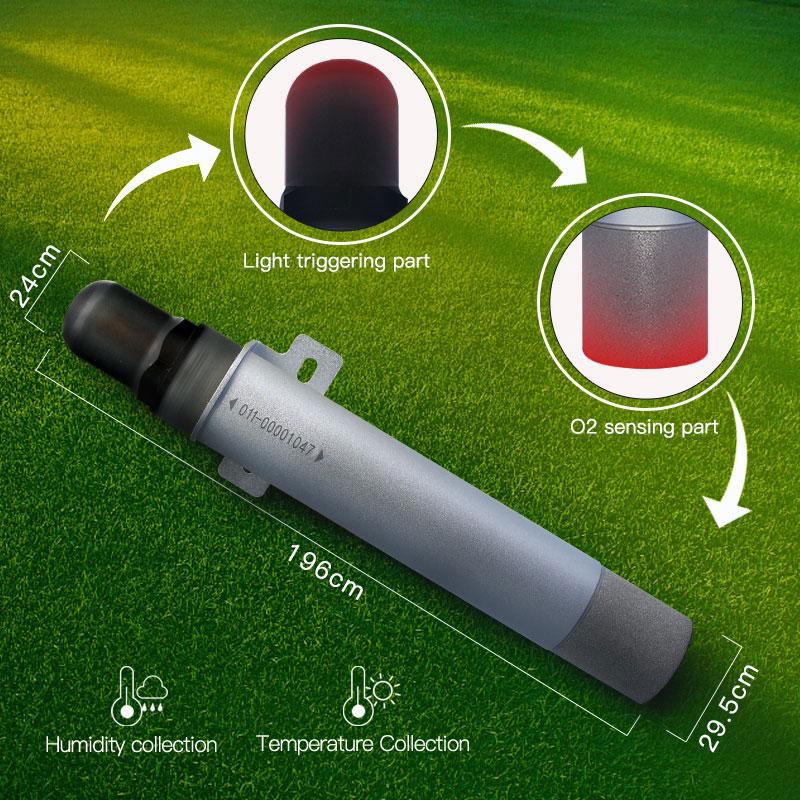

Starting mode：Light sensing triggering，
Trigger 3 times continuously within 10S，after triggering successfully at the 3rd time
Red light fast blinks 3 times, start successfully.

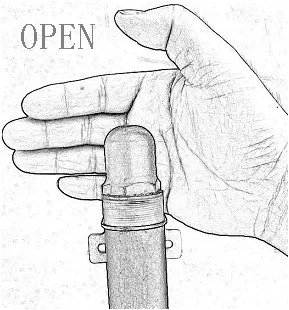

（Triggering way: hand holds light-sensitive part 1～2S，
loosen and red light blinks once）
Notice：Dark light can’t trigger ，pls use lens hood under hard light
Triggering mode：trigger once，detect sensor and send signal,
Detection transmitting cycle of sensor can be set.
Normal Mode：periodically detect sensor and send signal
Data Protocol
Example：GID:12345,TYPE:T&H,ID:1,STAT:11000000,T:14.5℃,H:36.3%, ST:5M,
V:3.66v,SN:2,RSSI:-79dBm,E:160.2020,N:110.2020,Time:2018-2-4 14:20:39
Explanation:
|
GID: Gateway ID （12345） |
TYPE: T&H |
ID: sensor address（1） |
|
STAT: sensor state BIT7=1 trigger and report; BIT6= 0channle,1channel; BIT5=1 repeater; BIT4=1 data null; BIT3= reserve; BIT2=1searching network; BIT1=0, low speed;1 high speed; BIT0=1start |
||
|
T:environmental temperature 14.5℃ |
|
|
|
H: environmental humidity 36.3% |
ST: acquisition time interval 5mins |
V: battery voltage3.66V |
|
SN: serial number2 |
RSSI: wireless signal strength-79dBm |
|
|
East Longitude E: 160.2020, Northern Latitude N:110.2020 |
Time: 2018-2-4 14:20:39 |
|
Technical Parameter
|
Sensor Parameter |
Basic Parameter |
|
Temperature accuracy:<0.5℃（0℃～80℃）& < 2℃（-40℃～0℃） |
Working frequency:476.505 & 488.505MHz（customized） |
|
Humidity accuracy:< ±3% |
Transmitting power:<17dBm |
|
Acquisition cycle:5～240mins |
Transmitting power:<120mA |
|
Working temperature:-40～80℃ |
Transmission distance:>5KM(LOS） |
|
Working life-span:>5 years.Note: Over 80% effective communication distance, working life is related to acquisition period (1 year @ 5 minutes, 5 years @ 30 minutes) |
|
|
Dimension：
Applications Environmental monitoring, medical and health, energy and chemical industry, warehousing and transportation, cold storage chain, constant temperature and humidity workshop, office space and other fields. Company Information: Shenzhen Thingsend Communication Technology Co.,Ltd Email:sales（at）thingsend(dot)com Contact:sarah yuan Skype ID:+86 188 2073 9215 (skype name:wireless solutions-sarah yuan) We're professional manufacturer of wireless sensors,2g 3g 4g lte GSM modem,Lora,wireless data radio modems,OEM/ODM,wireless customized solutions/system/applications. Welcome to contact Sarah for more information about wireless solution. |
