Validator Machine

PRODUCT DESCRIPTION

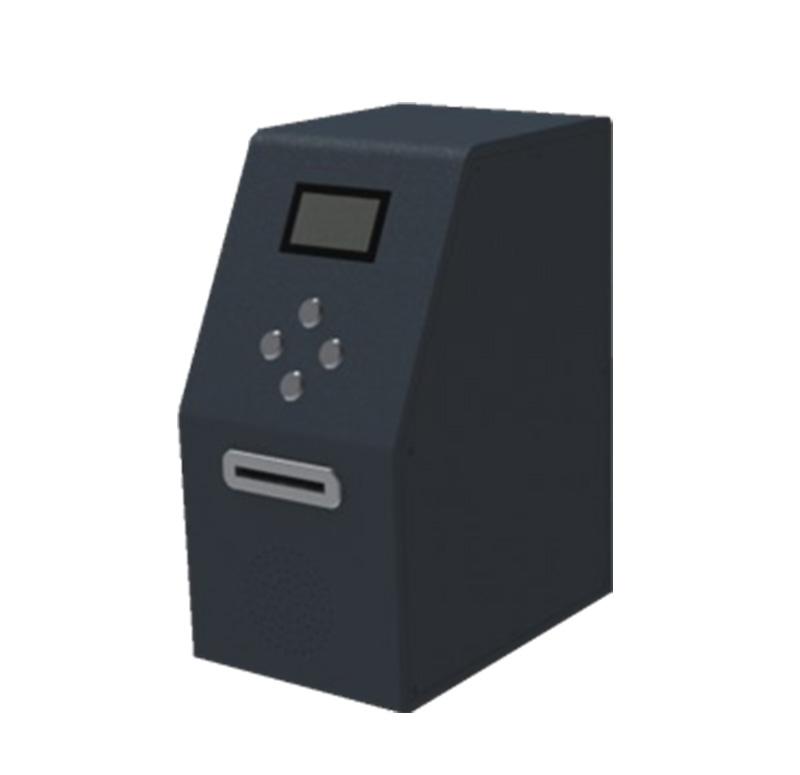

The VPM6 is an intelligent table-top merchant validator that designed to be located in a given store or place of business. The unit is internally coded with a given identification number relating to a given merchant.

Wiicontorl's VPM6 allows you to attract more customers by offering time, fee and/or percentage discounts for parking at your facility and rate-switchover. The VPM6 is also compact, automatic and easy to use.

When the VPM6 install at the exit, it can be also used for the receipt info printing on the patron's entry ticket.

The store attendant or patron simply selects one of the available validation opinion by 'UP', 'DOWN' buttons and inserts the parking ticket into the unit. Admin can program all the validation opinions while installation.

The VPM6 will then automatically transport the ticket into the device, print validation barcode and eject the ticket. The store number is encoded in the barcode to provide a predetermined discount at the parking facility and the validated
ticket is automatically processed.

Features

High quality color TFT display, words are clear and friendly to read

Auditable transactions


Color-coded Condition LEDs for operation and service


User friendly


Lightweight, compact design


Program up to different unique validations
for different customer requirement

Being able to save off-line data, and support sending back data to server if the validation machine be on-line

Receipt content is friendly to be customized

Technical Parameter

Dimension: 180mm(L)×165mm(W)×125mm(H)

Net Weight: 10kg

Power source: AC110V 60HZ/AC220V 50HZ

Power consumption: 10W(normal)；60W(max)

Work temperature: -35℃—+65℃

Validations Program: Support

Ticket type: Barcode ticket, QR Code ticket, receipt

Offline storage capacity: one million information

Communication port:  RJ45 option
