| Model: | TM-I |
|---|---|
| Brand: | Rootier |
| Origin: | Made In China |
| Category: | Industrial Supplies / Rubber & Plastics Machine |
| Label: | mixing nozzle , color mixing nozzle , static mixer |
| Price: |
US $300
/ pc
|
| Min. Order: | 1 pc |
| Last Online:15 Dec, 2021 |
Introduction
Injection machine color mixing nozzle is mainly used in thermoplastic injection field, by adding several static mixer inside nozzle to evenly stir the passing polymer and increase color mixing effect, improve production efficiency & product quality, meanwhile to reduce production cost.
Mechanism
The nozzle is mainly through exponential separation & mixing of inside static mixer to homogenize passing polymer, and evenly mixing the color. The excellent mixing element can also reduce the colorant usage and production cost. Well selected material & treatment is resistant to 40% reinforced fillers.
Assembling & Cleaning
The self-mixing structure requires no auxiliary device, can replace your normal nozzle easily. For cleaning, simply remove front nozzle tip and take out static mixer to clean.

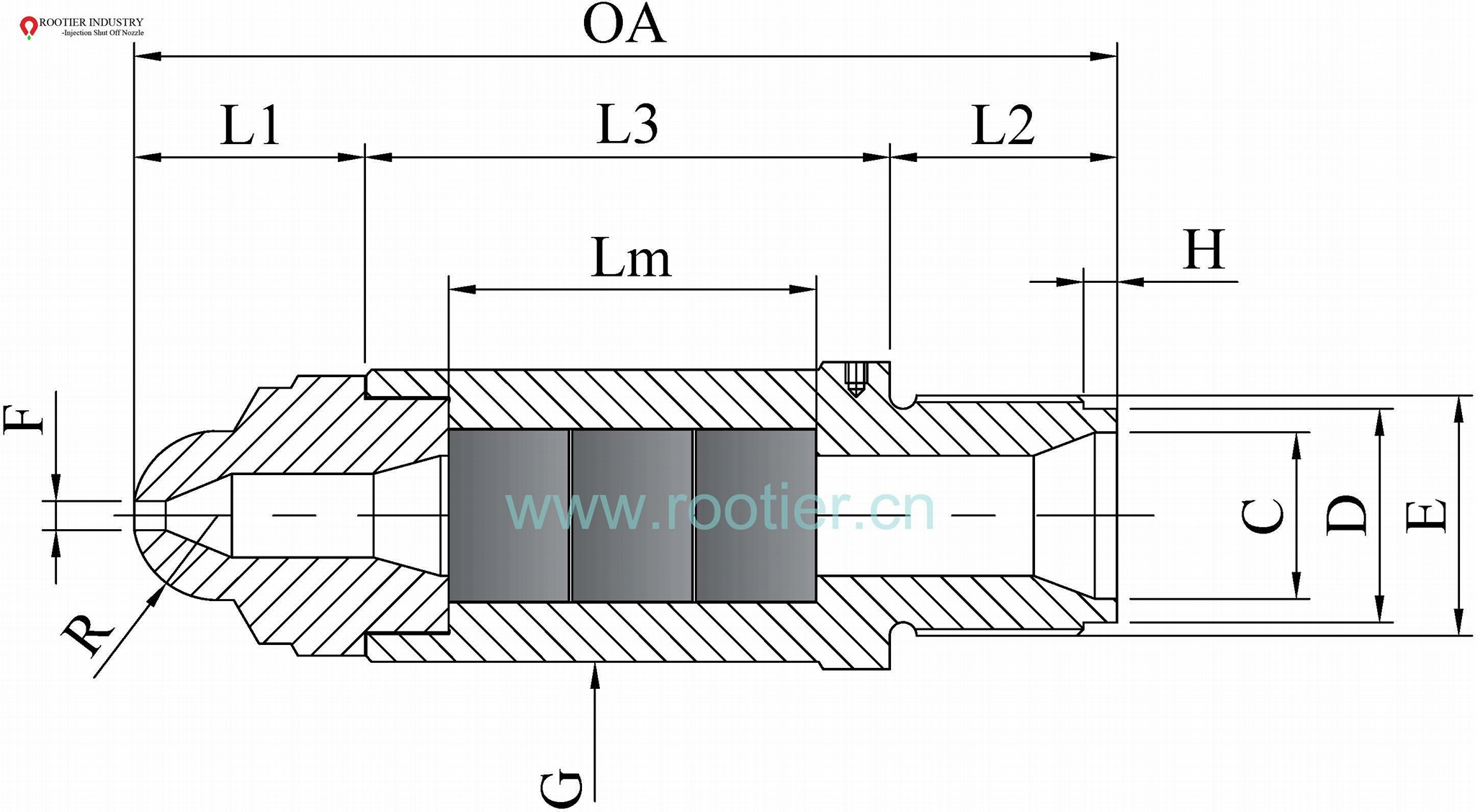

PRODUCT PROPERTY
| PARAMETER | TM-I | TM-II | TM-III | |
| Max. Injection Rate (PS) | cm3/sec | 300 | 600 | 1500 |
| Max. Screw Size (Ref.) | mm | 50 | 80 | 140 |
| Nozzle OD (G) | mm | Φ70 | Φ80 | Φ90 |
| Mixer Length (Lm) | mm | 112.8 | 149.6 | 208.8 |
| Mixer ID | mm | 20 | 30 | 40 |
| Mixer OD | mm | 28 | 40 | 50 |
| Mixer Nos. | Nos. | 3-4 | 3-5 | 4-6 |
| Payment Terms: | TT/Western Union/Paypal |
|---|---|
