CNC Tube Sheet Plate Drilling, Tapping, and Milling Machine

Model: PLD2020/PLD303
Brand:Auten
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:cnc angle machine , plate drilling , cnc drilling machine
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

JINAN AUTEN MACHINERY CO., LTD.

Free MemberShan Dong - China
Last Online:08 Mar, 2022

Product Description

Applicable industry

Used for the drilling processing for tube plate, clapboard and flange, in petrochemical, boiler, and wind power flange industries,also for joint plates in building,bridge,iron tower,etc.

Product feature:

1.Servo slide drilling unit heads,with the fuction of drilling holes,reaming,chamfering angle,milling of groove,can work together,or work separately.

2.Automatically find pot to dill holes in X,Y axis.Spindle rotation speed and feed verlocity are stepless adjustment.

3.T-groove is set on lathe bed,using pressure plate to clamp workpiece.

4.To seek workpiece center in hand-operated wheel,thimble.

5.Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual previewing.

6.Automatic chip removal, coolant circulation cooling.

7.Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad.

8.First choice equipment of tube plate drilling in heat exchange,chemical & mechanical industry.



Product Basic Parameter:

Model

PLD2020

PLD2525

PLD3030

PLD4040

PLD5050

Max size of work piece(mm)

Max.hole distance L×W(mm)

2000×2000

2500×2500

3000×3000

4000×4000

5000×5000

Max.thickness (mm)

200

Worktable

Width/distance of T notch

28/500

28/550

Drilling spindle

Quantity

One or more (By customers’ request)

Max. diameter of drilling

Φ50mm

Morse taper of spindle

#4

Rotating speed(rpm)

120~560(Stepless speed adjustment)

Max.feed stroke(mm)

350

Feeding speed(mm/min)

0~4000(Stepless speed adjustment)

Motor power(kW)

5.5

Positioning precision

XYaxis

0.1 (full length)

Re-positioning precision

XYaxis

0.1

Motor power(kW)

Servo motors

X axis

1.5

2

Y axis

1.5

Z axis

1

Motor for swarf conveyor

0.75

Motor for cooling pump

0.25

Type of chip-conveyor

Chain-plate type

Quantity of chip-conveyor

2

Chip-removal speed(m/min)

1

CNC system

Spain FAGOR8055 or Siemens

Net weight(kg)

≈16000

≈20000

≈24000

30000

40000

Overall dimensions(L×W×H)(m)

4.9×5×3.2

5.5×5.5×3.2

5.9×69×3.2

7.2x7x3.2

8.2x8x3.2

Note:Other models can be made by customers’ request.


Product Image

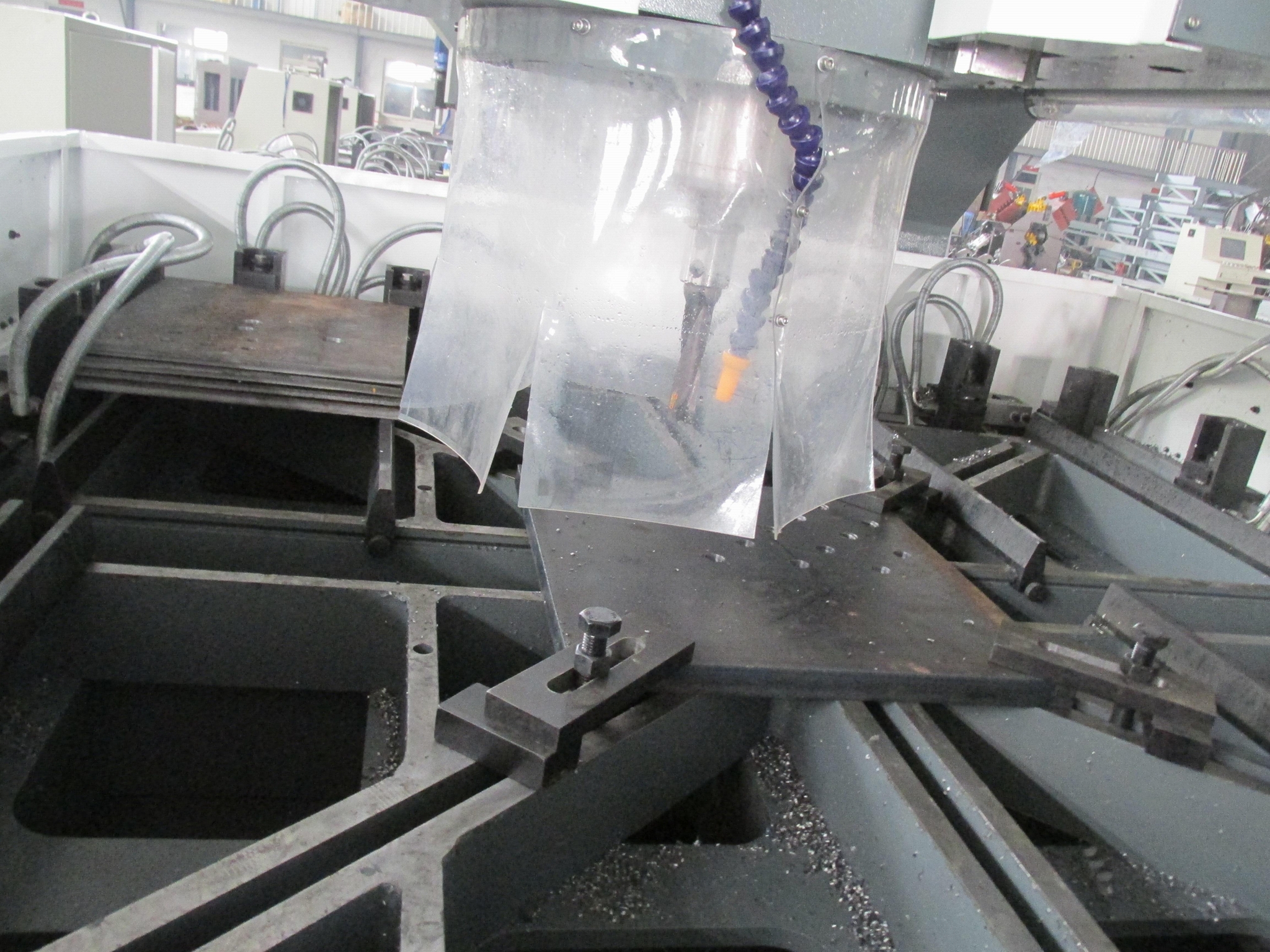

CNC Tube Sheet Plate Drilling, Tapping, and Milling Machine 1
