High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine

Model:DA-1390
Brand:DADI
Origin:Made In China
Category:Industrial Supplies / Machinery / Engraving & Etching Machine
Label:laser engraving , laser machine , laser cutting
Price: US $2300 / set
Min. Order:1 set
Inquire Now

Member Information

Detail

Love Engraving Co., Ltd.

Free MemberShan Dong - China
Last Online:31 May, 2021

Product Description

High Precision CO2 Laser Engraving Machine CO2 Laser Cutting Machine For Non-Metal 1300*900mm DA-1390M



DA-1390M Laser Engraving Cutting Machine

Cutting Engraving Area: 1300*900mm

Machine Dimension: 1860*1450*1140mm

Applicable Materials: Can cut and engrave acrylic , double-color board , pvc ,wood ,MDF ,leather ,paper ,cloth and other non-metal materials ; can engrave on glass ,stone; can also engrave on wine bottles, logs and other column shape non-metallic materials(need to equip with rotary axis and lifting working table).



DA-1390M Laser Cutting Engraving Machine Application

Advertising Industry ,Wood Industry ,Lighting Word Project, LED Advertising Word,Furniture Manufacturing ,Artware Product,Logo Making ,Package ,Building Model,Industrial Mold, Decoration,Clothing ,Textile,Leather ,Industrial fabrics.



Laser Power Optional : 60W/80W/100W/130W



Cutting Ability

Laser Power

Acrylic

Wood

MDF

80 ~ 100w

10mm

10mm

5mm

100 ~ 130w

15mm

13mm

7mm

130 ~ 150w

20mm

18mm

10mm

 (Warm Prompt: If you need the machine for engraving, it is recommended to choose a small power laser tube )



Technical Parameter

Working Voltage:

AC 220V±10%,50HZ

Control System:

DSP control technology,can connect with computer or be offline through USB interface

Driver:

Stepper motor high subdivision drive

Guide Rail:

Linear guide rail

Working Table:

Honey comb table  or Knife Striptable(Optional)

Transmission:

synchronous belt drive



Laser Type:

glass cavity sealed CO2 laser tube,The wavelength is 10.6 microns

Laser Tube Cooling:

Pure circulating water cooling

Capacity Regulator:

0-100% Segmentless control, software internal 0-100% adjustable

PositionaI Accuracy:

≤±0.05mm

Engraving Speed:

0-1200mm/s

Cutting Speed:

0-600mm/s

Minimum formed word:

Chinese characters 1.5mm English letters 1mm

Working Enviroment:

Temperature 0-45℃ Humidity 5%-95%(No condensate)

Total Machine Power:

<3.2KW

Software supported format:

PLT,DXF,AI,BMP,RLD support AutoCAD,CorelDRAW direct output



 DA-1390 Laser Cutting Engraving Machine Feature

1.The machine bed structure by fine processing of CNC machining center

2.Synchronous gear made of pure copper, wear - resistant and corrosion - resistant

3.The machine can pass the material front and back, to solve the problem that the material is big size and the machine is small and can not be processed

4.There are pass material baffles in front and back , enhance the normal processing sealing

5.Double fulcrum transmission, more stable operation

6.Independent fan switch, can be switched at any time, reduce noise

7.The machine is equipped with leakage overload protector

8.Independent installation of laser power source, avoid high voltage interference

9.Special die for laser tube seat, no need for dimming

10.Optical lens frame, more stable optical path





DA-1390M Laser Cutting Engraving Machine Characters :

1. High stability laser tube,high quality lens and mirror,long life-span.

High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine For Non-Metal 1300*900mm DA-1390M

2. Automatic up&down table design satisfies the customers need of engraving thick materials.

3. Adopt advanced Ruida control system and easy to operate, international standard laser power supply,USB interface output can support off-line working.

High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine For Non-Metal 1300*900mm DA-1390M

4. Strong software function,compitable with Coreldraw,Autocad and so on.

5. Auto focus system,water pump,air pump and rotary attachment are optional
6. High accuracy stepper motors and drivers. Belt transmission.

High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine For Non-Metal 1300*900mm DA-1390M
7. Honey comb working table: to engrave materials like acrylic, wood and so on.

High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine For Non-Metal 1300*900mm DA-1390M
8. Tiwan Hiwin Linear square guide rails or PMI, more precision

High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine For Non-Metal 1300*900mm DA-1390M

9. Transmit files directly in CorelDraw, AutoCAD etc.
10. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, CD, U disk, a focal length of stick



DA-1390 Laser Cutting Engraving Machine More Photos

High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine For Non-Metal 1300*900mm DA-1390M




Product Image

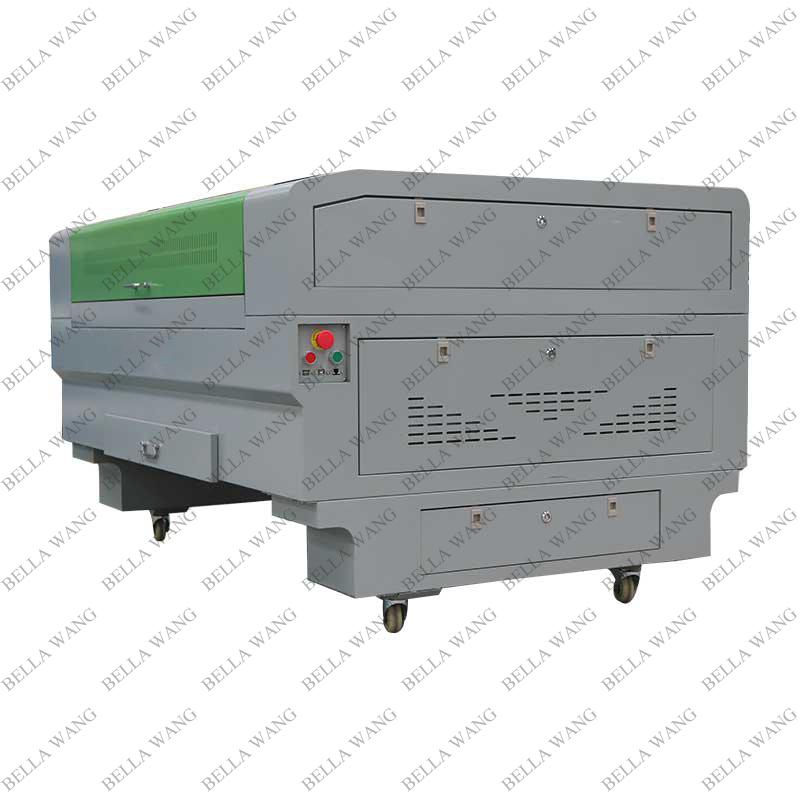

High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine 1
Img 1

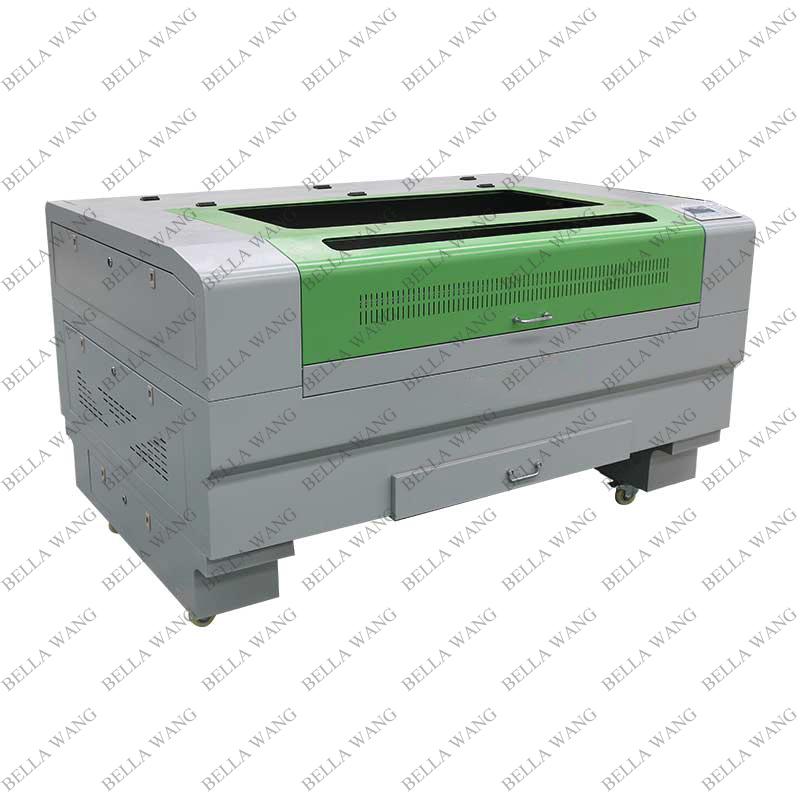

High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine 2
Img 2
High Precision CO2 Laser Engraving Machine co2 Laser Cutting Machine 3
Img 3
