7 Works Combine Woodworking Machine,SHC-400

Model:SHC-400
Brand:SHOOT
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:7 works wood machine , wood cutting machine , woodworking machine
Price: US $4400 / pic
Min. Order:1 pic
Inquire Now

Member Information

Detail

Yantai Shoot Woodworking Machine Co.,Ltd

Biz MemberShan Dong - China
Last Online:16 Jan, 2025

View all products. (841)

Product Description

7 Works Combines Machine
Feature

Surface planer, thichness machine, spindle moulder, mortiser, circular saw, tenoning
carriage, Sharpener.
Pialla A filo Model SHC-400
Piani di lavoro Working tables 400x1750mm
Diametro albero porta-coltelli Cutterblock diameter 70mm
Velocità rotazione albero Cutterblock rotation speed 5700r.p.m
Numero dei coltelli N. of knifes 3°
Dimensioni coltelli Knifes dimensions 400x20x3mm
Registr. max piani Max table adjustement 4mm
Pialla A Spessore Thicknesser
Piano di lavoro Working table 400x760mm
Velocità avanzamento Feed speed 7m/1'
Passaggio legno max Max. working height 220mm
Passaggio legno min. Min. working height 4mm
Rotazione albero Cutterblock rotation speed 5700r.p.m
Spessore max. passata Max. cutting depth 5,5mm
Sega circolare Circular saw
Piano di lavoro Working table 326x1112mm
Velocità di rotazione Shaft rotation speed 4500r.p.m.
Lama Blade diameter 300mm
Foro lama Blade bora diameter 30mm
Altezza max.taglio 90° Cutting height 90° 105mm
Passaggio max. fra lama e guida Max. distance between blade and fence 730mm
Lama inclinabile Blade inclination 45°
Altezza max.taglio 45° Max cutting height  45° 75mm
Velocità di incisore Shaft rotation speed engraver 7000r.p.m.
Incisore Engraver blade diameter 90mm
Foro incisore Engraver blade bora diameter 22mm
Cavatrice  Mortiser
Piano di lavoro Working table 195x400mm
Corsa logitudinale Longitudinal stroke 180mm
Corsa trasversale Trasversal stroke 90mm
Corsa verticale Vertical stroke 80mm
Mandrino Churck  16mm
Rotazione mandrino Churck rotation speed 5700r.p.m
Toupie (Fresatrice verticale) Shaper
Piani di lavoro Working tables 326x1112mm
Velocità di rotazione Shaft rotation speeds 7000/4400/3100/2000r.p.m.
Diametro albero standard Standard shaft diameter 30mm
Lunghezza albero Spindle length 105mm
Corsa verticale albero Shaft vertical stroke 115mm
Diametro max utensile Max. tool diameter 180mm
Profondità tenoni massima Max. tenoning depth 65mm
Carrello Tenoning carriage
Dimesioni carro Carriage dimensions 1800x315mm
Corsa carrello Carriage stroke 2200mm
Dotazioni standard Standard accessories
N°2 pressore a leva N°2 clamp lever *
Cuffia guida toupie Sharper fence *
Chiavi di servizio Service wrenches *
Mandrino cavatrice Mortiser chuck *
Controtelaio con supporto a bandiera Table extensions with swinging arms 800x600mm
Protezioni mandrino cavatrice Guards on mortiseur chuck *
N.3 coltelli per pialla 3 pcs. planing knives *
Guida pialla Planer guide
Guida sega Saw guid
Protezione pialla a filo ponte Bridge sefety hood on planer *
Potenza motori trifase 3-phase motor power 3,0 - 2,2HP - KW
Peso Weight  580kg


Accessori a richiesta Optiona accessories
Motore monofase Single-phase motor 2,7 - 2,0HP-KW
Motore maggiorato trifase Increasing 3-phase motor 4,0 - 3,0HP-KW
Gruppo di aspirazione Extraction 0,5 - 0,36HP-KW

Coppia di ruote più timone

per spostamento

 Set of wheels with feeding steering bar *
Guida a contornare Contouring fence
Dispositivo a copiare Regulating to copy
Corsa carello Carriage stroke 2600

Product Image

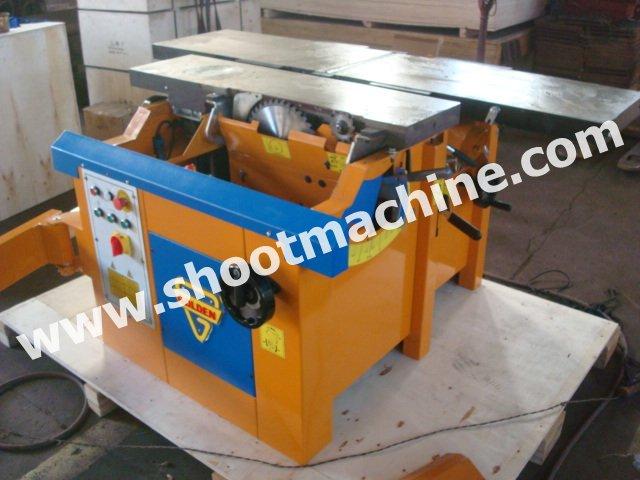

7 Works Combine Woodworking Machine,SHC-400 1
