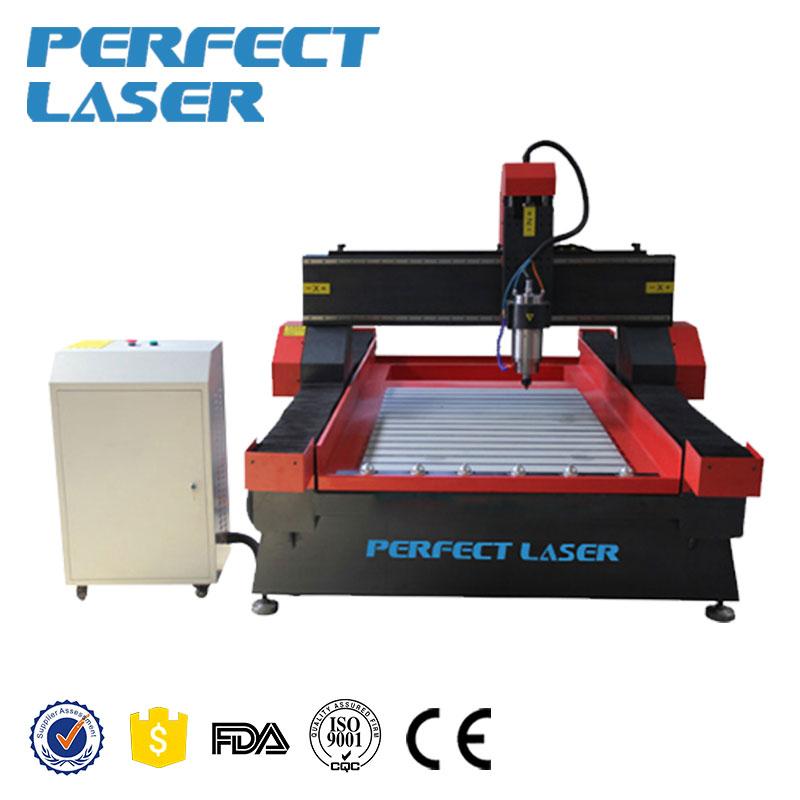

Stone Marble Granite CNC Router engraving and cutting machine

Model:PEM-1325C
Brand:Perfect Laser
Origin:Made In China
Category:Industrial Supplies / Machinery / Engraving & Etching Machine
Label:stone engraving , cnc marble cutting , Stone CNC Router
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

Perfect Laser Co.Ltd

Free MemberHu Bei - China
Last Online:24 Jul, 2019

Product Description

                                        Stone Marble Granite CNC Router Engraving

                                               And Cutting Machine

                                            Model:PEM-1325C



Introduction of Stone  CNC Router

1.The stone engraving machine adopt overall body cast iron beds, and secondary tempering precision machining; widen and thicken beams and columns design,can carve 15mm natural marble with one knife.
2.The marble engraving machine device with automatic water system and tank design, to ensure that longer use of the tools.
3.The granite engraving machine uses water-proof design, to ensure the transmission parts and circuit parts are durable and safe.
4.The stone engraving machine spindle motor frequency spindle high power water-cooled, water-proof design.
5.To work long hours, which can realize power, breakpoints, and the next processing, convenient and save labor. Adopts the break-point memory method, guarantee processing under the condition of accident (cutting knife), or the next day.
6.High speed machining: high kinetic energy, Y axis double motor drive, curve, straight line speed. Unique save way of multiple work-piece machining zero .

Features of Stone  CNC Router

1. Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face,high precise and long life time

2. Germany double nuts automatic ball screw, Excellent two-bolt pole made in

Germany and sideways made in Japan or Korea

3. DSP(Optional digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simple maintenance and more

human nature on the design of the machine

4. No dust oiling structure, guarantee the long term running of the mechanical aspect.

5. Break point and break knife continue engraving function, can engrave at any place as you like

6. The compatibility is high, CAD/CAM software such as Type 3 /Art Arm/Castmate/ Proe /CorelDraw /Art cut

7.High power frequency changing water cooled spindle, can process hard materials efficiently

8.Large internal memory capacity is able to store 30 processing files simultaneously and open and process any of them.

Application of Stone  CNC Router

Suitable industries: billboards, model industry,electronics and electric appliances, decoration industry, toys and gifts, furniture manufacturing, etc.
Available materials: stone, marble, granite, tombstone, acrylic, double color boards, plastic, wood, ABS, PVC, MDF, PCB, copper, aluminum and various non-ferrous metals.

It is also called stone engraving machine,marble engraving machine,granite engraving machine,tombstone engraving machine,engraving stone,3D engraving machine,3D CNC router engraving machine.

Technical Data

Model

PEM-1325C

Working area

1300*2500*200mm

Machine Volume

3200*2020*1250mm

Main axle power rate

2.2/3/4.5/5.5KW(optional)

Main axle rotating speed

6000-24000 rpm/min

Max.Working speed

8000mm/min

Feeding height

200mm

Engraving tools

3.175/4/6/12.7mm

Re-positioning Accuracy

0.02mm

Supported File Format

DXF,PLT,G code,MMG,U00,NC,ENG

Power

AC220V(380V)/50HZ (optional:AC110V/60HZ )

Weight

1600 kgs

The Related Product:

1.CNC Router for Wood and Furniture

2.Etching Tool Cnc Stone Engraving Machine

More details,please click https://www.perfectlaser.net/


Product Image

Stone Marble Granite CNC Router engraving and cutting machine 1
Img 1
Stone Marble Granite CNC Router engraving and cutting machine 2
Img 2
Stone Marble Granite CNC Router engraving and cutting machine 3
Img 3
Stone Marble Granite CNC Router engraving and cutting machine 4
Img 4
Stone Marble Granite CNC Router engraving and cutting machine 5
Img 5
