Kaneko 3-way solenoid valve-M00DU SERIES 1Kaneko 3-way solenoid valve-M00DU SERIES 2Kaneko 3-way solenoid valve-M00DU SERIES 3Kaneko 3-way solenoid valve-M00DU SERIES 4
  • Kaneko 3-way solenoid valve-M00DU SERIES 1
  • Kaneko 3-way solenoid valve-M00DU SERIES 2
  • Kaneko 3-way solenoid valve-M00DU SERIES 3
  • Kaneko 3-way solenoid valve-M00DU SERIES 4

Kaneko 3-way solenoid valve-M00DU SERIES

Model:M00DU SERIES
Brand:Kaneko
Origin:Made In Japan
Category:Industrial Supplies / Machine Hardware / Pneumatic Component
Label:kaneko solenoid valv , solenoid valve , 2-way
Price: US $280 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Contranspower Co, Ltd

Free MemberSi chuan - China
Last Online:02 Mar, 2020

View all products. (20)

Product Description

Kaneko solenoid valve 2 way M22 SERIES

Kaneko solenoid valve 2 way M30 SERIES

Kaneko solenoid valve 2 WAY M20 SERIES

Kaneko solenoid valve 3 way M00DU SERIES

Kaneko solenoid valve 3 way M00U SERIES

Kaneko solenoid valve 3 way M50 SERIES

Kaneko solenoid valve 3 way M55 SERIES

Kaneko Air - operated valve P15G SERIES

Kaneko Air - operated valve BZ11 SERIES

Kaneko Air - operated valve BZ10G SERIES

Kaneko solenoid valve 4 way M65DG SERIES

Kaneko solenoid valve 4 way M15DG SERIES

Kaneko solenoid valve 4 way M65G SERIES single

Kaneko solenoid valve 4 way M80G SERIES single

Kaneko solenoid valve 4 way MB15G SERIES single

Kaneko solenoid valve 4 way MT16G SERIES single

Kaneko solenoid valve 4 way M15G SERIES single

Kaneko solenoid valve 4 way MK15G SERIES single

Kaneko solenoid valve manual reset M31 SERIES

Kaneko solenoid valve manual reset M51 SERIES

Kaneko solenoid valve manual reset M81 SERIES

Kaneko solenoid valves manual reset M55 SERIES

Feature

  • Capable of preventing changes in operation by power failure.
  • Should power failure occur after the start of operation, the valve does not change its operating position. Therefore, accidents due to power failure can be prevented.
  • No loss in electric power.
  • Very economical since the valves are designed to reduce power consumption to about 1/3 that with our former products.
  • Economical and free from anxiety.
  • Quite safe without burnout and insulation degradation as the temperature rise of the coil is very low.

Standard specification

FLUID

CLEAN AIR

FLUID TEMPERATURE

－20～60℃

AMBIENT TEMPERATURE

－20～60℃

DUTY CYCLE

100% CONTINUOUSLY RATED

OPERATING VOLTAGE RANGE

＋10，－15％

WORKING PRESSURE, Cv. FLOW FACTOR

ORIFICE TYPE

ORIFICE SIZE

WORKING PRESSURE

Cv. FLOW FACTOR

BLANK

1.6

0～0.99MPa

0.084

1

3.0

0～0.4MPa

0.22

ELECTRICAL SPECIFICATIONS

AC

DC

V/Hz

A

V

A

100／50

0.052

24

0.260

100／60

0.052

48

0.120

110／60

0.058

100

0.062

200／50

0.040

110

0.067

200／60

0.040

125

0.076

220／60

0.043





M00DU GENERAL PURPOSE TYPE


M00DU-6～10 GENERAL PURPOSE TYPE(MANUAL OPERATION , TERMINAL BOX)

NOMINAL DIAMETER

MOUNTING LENGTH

H

H : Non MANUAL OPERATION

6

55

165

143

8

55

165

143

10

55

165

143

M00DU EXPLOSION-PROOF TYPE


M00DU-6～10 EXPLOSION-PROOF TYPE(MANUAL OPERATION)

NOMINAL DIAMETER

MOUNTING LENGTH

H

H : Non MANUAL OPERATION

6

55

186

164

8

55

186

164

10

55

186

164

M00DU DUST EXPLOSION-PROOF TYPE


M00DU-6～10 DUST EXPLOSION-PROOF TYPE

NOMINAL DIAMETER

MOUNTING LENGTH

H

H : Non MANUAL OPERATION

6

55

231

209

8

55

231

209

10

55

231

209





6. Kaneko 3-way solenoid valve-M50 SERIES

Kaneko solenoid valve 2 way M22 SERIES

Kaneko solenoid valve 2 way M30 SERIES

Kaneko solenoid valve 2 WAY M20 SERIES

Kaneko solenoid valve 3 way M00DU SERIES

Kaneko solenoid valve 3 way M00U SERIES

Kaneko solenoid valve 3 way M50 SERIES

Kaneko solenoid valve 3 way M55 SERIES

Kaneko Air - operated valve P15G SERIES

Kaneko Air - operated valve BZ11 SERIES

Kaneko Air - operated valve BZ10G SERIES

Kaneko solenoid valve 4 way M65DG SERIES

Kaneko solenoid valve 4 way M15DG SERIES

Kaneko solenoid valve 4 way M65G SERIES single

Kaneko solenoid valve 4 way M80G SERIES single

Kaneko solenoid valve 4 way MB15G SERIES single

Kaneko solenoid valve 4 way MT16G SERIES single

Kaneko solenoid valve 4 way M15G SERIES single

Kaneko solenoid valve 4 way MK15G SERIES single

Kaneko solenoid valve manual reset M31 SERIES

Kaneko solenoid valve manual reset M51 SERIES

Kaneko solenoid valve manual reset M81 SERIES

Kaneko solenoid valves manual reset M55 SERIES

Feature

Packed type

Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.

Safe explosion-proof construction

Explosion-proof type valves certified by the Ministry of Labor.

Highly durable

A mechanical life of five million operations or more is expectable.

Manual check is possible

Manual operation is possible. This mode can be used for operation check or switching in case of emergency.

Standard specification

FLUID

CLEAN AIR

FLUID TEMPERATURE

-20 – 60 deg.C

AMBIENT TEMPERATURE

-20 – 60 deg.C

DUTY CYCLE

100% CONTINUOUSLY RATED

OPERATING VOLTAGE RANGE

+10，-15％

WORKING PRESSURE

0 ～ 0.99MPa

Cv. FLOW FACTOR

0.18

ELECTRICAL SPECIFICATIONS

See below

STANDARD VOLTAGE

AC

DC

V/Hz

INRUSH A

HOLDING A

V

A

100/50

2.8

0.50

24

0.91

100/60

3.1

0.56

48

0.53

110/60

2.6

0.46

100

0.24

200/50

1.4

0.25

110

0.26

200/60

1.6

0.28

125

0.20

220/60

1.3

0.23





Product images

M50 AC GENERAL PURPOSE TYPE


M50 – 8–10 AC GENERAL PURPOSE TYPE

NOMINAL DIAMETER

H

8

148

10

148

M50 DC GENERAL PURPOSE TYPE


M50 – 8–10 DC GENERAL PURPOSE TYPE

NOMINAL DIAMETER

H

8

172

10

172

M50 AC EXPLOSION-PROOF TYPE


M50 – 8–10 AC EXPLOSION-PROOF TYPE

NOMINAL DIAMETER

H

8

182

10

182

M50 DC EXPLOSION-PROOF TYPE


M50 – 8–10 DC EXPLOSION-PROOF TYPE

NOMINAL DIAMETER

H

8

186

10

186



7. Kaneko 3-way solenoid valve-M55 SERIES

Kaneko solenoid valve 2 way M22 SERIES

Kaneko solenoid valve 2 way M30 SERIES

Kaneko solenoid valve 2 WAY M20 SERIES

Kaneko solenoid valve 3 way M00DU SERIES

Kaneko solenoid valve 3 way M00U SERIES

Kaneko solenoid valve 3 way M50 SERIES

Kaneko solenoid valve 3 way M55 SERIES

Kaneko Air - operated valve P15G SERIES

Kaneko Air - operated valve BZ11 SERIES

Kaneko Air - operated valve BZ10G SERIES

Kaneko solenoid valve 4 way M65DG SERIES

Kaneko solenoid valve 4 way M15DG SERIES

Kaneko solenoid valve 4 way M65G SERIES single

Kaneko solenoid valve 4 way M80G SERIES single

Kaneko solenoid valve 4 way MB15G SERIES single

Kaneko solenoid valve 4 way MT16G SERIES single

Kaneko solenoid valve 4 way M15G SERIES single

Kaneko solenoid valve 4 way MK15G SERIES single

Kaneko solenoid valve manual reset M31 SERIES

Kaneko solenoid valve manual reset M51 SERIES

Kaneko solenoid valve manual reset M81 SERIES

Kaneko solenoid valves manual reset M55 SERIES

Feature

Packed type

Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.

Safe explosion-proof construction.

Explosion-proof type valves certified by the Ministry of Labor.

Highly durable.

A mechanical life of five million operations or more is expectable.

Manual check is possible.

Manual operation is possible.

This mode can be used for operation check or switching in case of emergency.

Standard specification

FLUID

CLEAN AIR

FLUID TEMPERATURE

－20 ～ 60℃

AMBIENT TEMPERATURE

－20 ～ 60℃

DUTY CYCLE

100% CONTINUOUSLY RATED

OPERATING VOLTAGE RANGE

＋10、－15％

WORKING PRESSURE

0.12 ～ 0.99MPa

Cv. FLOW FACTOR

See below

STANDARD VOLTAGE

See below

Cv. FLOW FACTOR

NOMINAL DIAMETER

8A

10A

15A

20A

25A

32A

Cv. FLOW FACTOR

1.22

3.2

4.3

5.2

14.5

17.3

STANDARD VOLTAGE

AC

DC

V/Hz

INRUSH A

HOLDING A

V

A

100/50

2.8

0.50

24

0.91

100/60

3.1

0.56

48

0.53

110/60

2.6

0.46

100

0.24

200/50

1.4

0.25

110

0.26

200/60

1.5

0.28

125

0.20

220/60

1.3

0.23





Product Images

M55 AC GENERAL PURPOSE TYPE


M55-8～32 AC GENERAL PURPOSE TYPE

NOMINAL DIAMETER

MOUNTING LENGTH

H

8

70

197

10

70

197

15

90

201

20

90

201

25

120

218

32

120

218

M55 DC GENERAL PURPOSE


M55-8～32 DC GENERAL PURPOSE TYPE

NOMINAL DIAMETER

MOUNTING LENGTH

H

8

70

221

10

70

221

15

90

225

20

90

225

25

120

242

32

120

242

M55 AC EXPLOSION-PROOF


M55-8～32 AC EXPLOSION-PROOF TYPE

NOMINAL DIAMETER

MOUNTING LENGTH

H

8

70

231

10

70

231

15

90

235

20

90

235

25

120

252

32

120

252

M55DC EXPLOSION-PROOF TYPE


M55-8～32 DC EXPLOSION-PROOF TYPE

NOMINAL DIAMETER

MOUNTING LENGTH

H

8

70

235

10

70

235

15

90

239

20

90

239

25

120

256

32

120

256

DESCRIPTION OF OPERATION

M55C

M55D






Payment Terms:T/T

Product Image

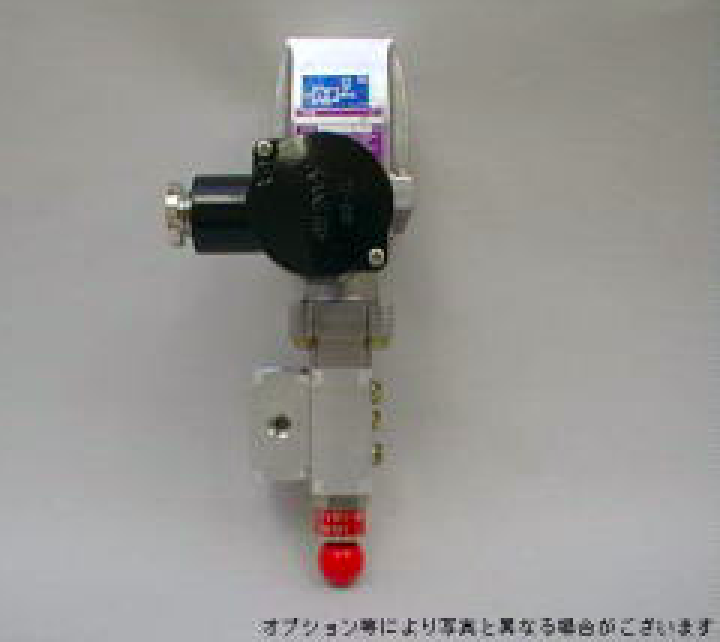

Kaneko 3-way solenoid valve-M00DU SERIES 1
Img 1

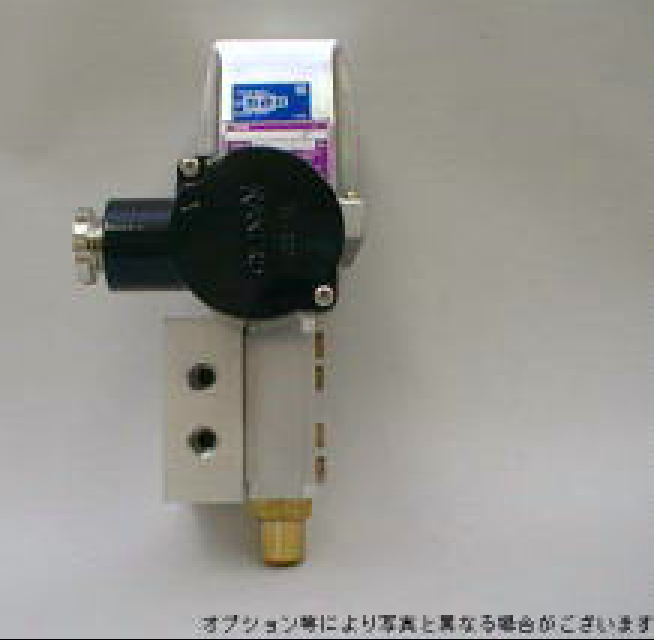

Kaneko 3-way solenoid valve-M00DU SERIES 2
Img 2

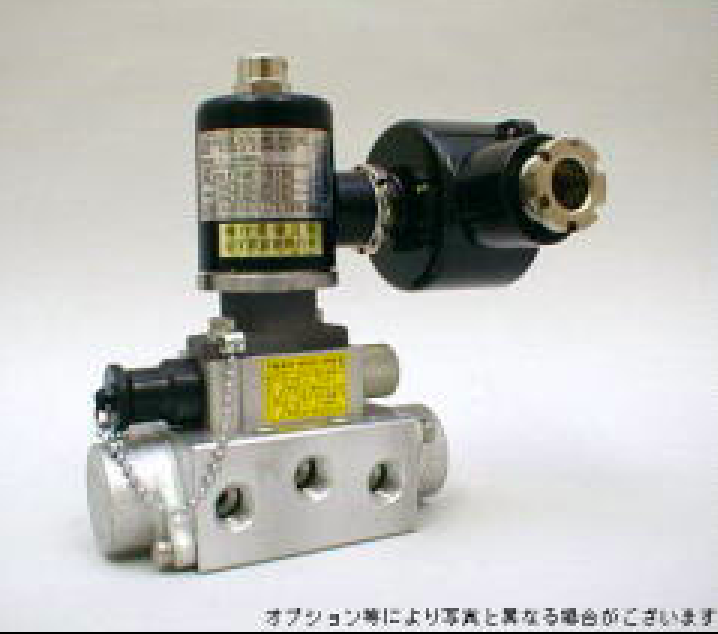

Kaneko 3-way solenoid valve-M00DU SERIES 3
Img 3
Kaneko 3-way solenoid valve-M00DU SERIES 4
Img 4
