Composite Access Control Cable, Riser
Product Description
| Composite Access Control Cable,Riser |
| NEC Type CMR (UL) C(UL) |
| |
|
|
|
|
|
| Product Construction: |
| Conductor: Stranded bare copper |
| Jakcet: PVC |
| Shield: Choice between all 4 elements shielded or just the 3-pair shield |
| Applicatons: |
| Security Systems |
Access Control |
|
|
| Card Reader |
Door Control |
|
|
| REX |
Power-limited Controls |
|
|
| |
|
|
|
|
|
| Shield Type |
| Component NO. |
Component Description |
Conductor color code |
Component nom. O.D.(mm) |
Insulation thickness (mm) |
Overall nom. O.D.(mm) |
| 1 |
4C, 18AWG, Shield |
White,Black,Red,Green |
4.57 |
0.203 |
10.9 |
| 2 |
3P,22AWG, Shield |
White,Green,Orange,Brown,Red,Black |
4.59 |
0.203 |
| 3 |
2C,22AWG, Shield |
Red,Black |
3.18 |
0.203 |
| 4 |
4C,22AWG,Shield |
White,Black,Red,Green |
6.68 |
0.203 |
| |
|
|
|
|
|
| Unshield + Shield Type |
| Component NO. |
Component Description |
Conductor color code |
Component nom. O.D.(mm) |
Insulation thickness (mm) |
Overall nom. O.D.(mm) |
| 1 |
4C, 18AWG, Unshield |
White,Black,Red,Green |
4.57 |
0.203 |
10.7 |
| 2 |
3P,22AWG, Shield |
White,Green,Orange,Brown,Red,Black |
4.59 |
0.203 |
| 3 |
2C,22AWG, Unshield |
Red,Black |
3.18 |
0.203 |
| 4 |
4C,22AWG,Unshield |
White,Black,Red,Green |
6.68 |
0.203 |

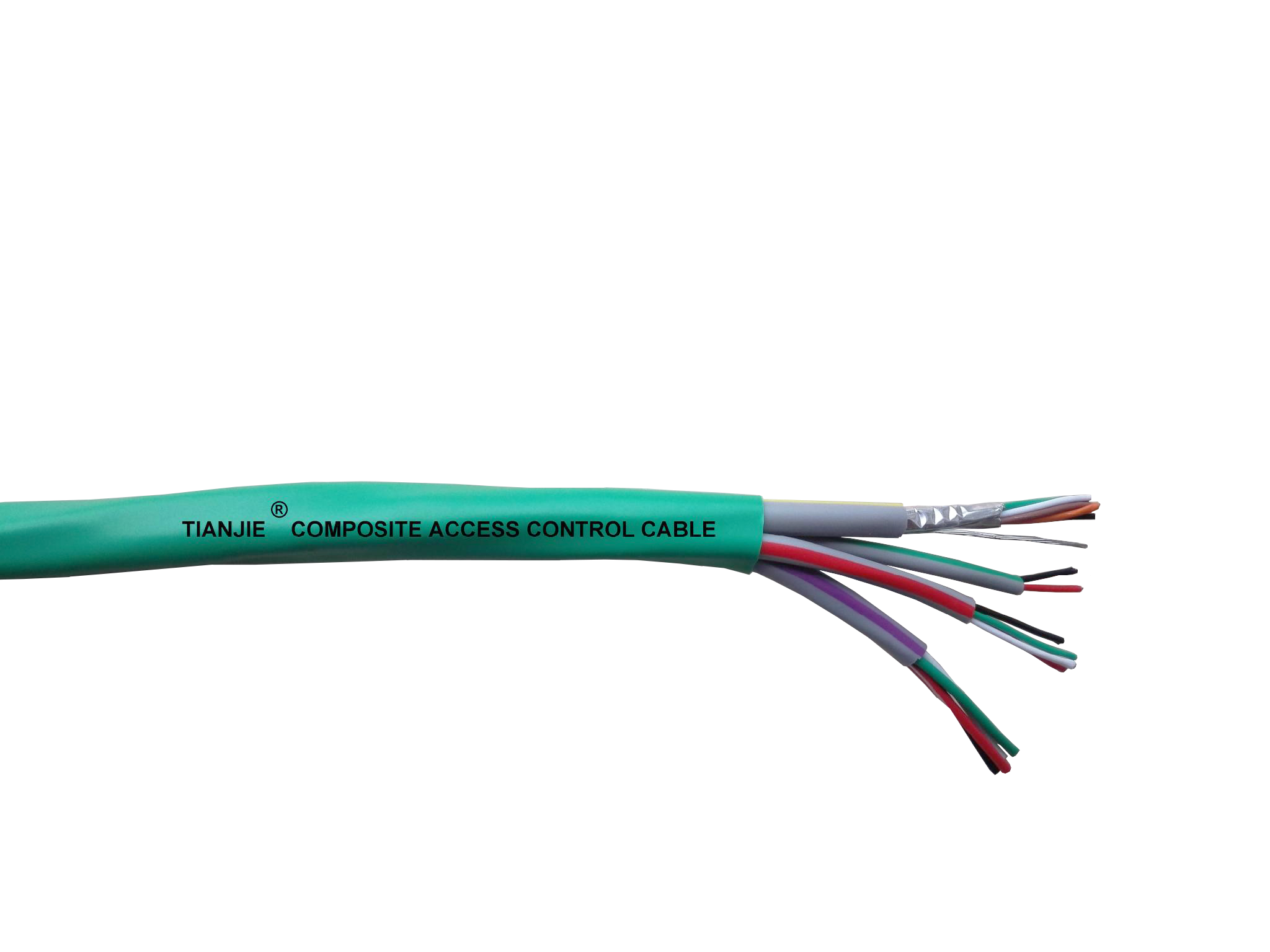

Product Image
Img 1
