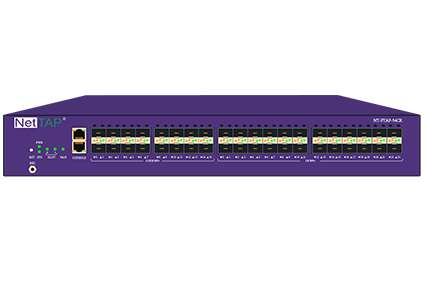

Nt-FTAP-54CX series is a 100G high density network data visualization control equipment, specially designed for the operators mobile Internet Export, IDC Export, Provincial Network, Backbone Distribution dense 10GE link and 100GE link traffic acquisition.

The equipment has the characteristics of small size, high interface density, rich network interface, large capacity exchange bandwidth, ultra-fine particle flow classification, friendly interactive interface and so on.

High Density Integration

- Supported 48 ports of 10G and 6 ports 100G interfaces with high density

- Supported 960Gbps high performance back plate bandwidth

- Supported all port line speed work without packet loss

Rich Traffic Processing Mechanism

- Supported 1->N, m-> N, m-> N channel traffic replication convergence

- Support L2-L7 layer message filtering matching, including SIP, DIP, SP, DP, protocol number, Get, Post arbitrary position feature code recognition, input interface and other elements of flexible combination filtering conditions

- Supported DPI deep message analysis and processing

- Supported GTP, GRE and other tunnel protocol IP identification shunting

- Supported multiple rule combinations

- Supported the number of rules above 10K

- Support filtering rule black and white list

Load Balancing

- Supported dynamic load balancing or customization load balancing

- Supported the hash load balancing calculation of multiple combination conditions

- Supported load balancing arbitrary binding of output port group members

Flexible Port Collocation

- Supported all ports as input, output port by customization

- Supported for members of the same port group not restricted by port types

- Supported arbitrary binding of input and output port groups

Friendly Interactive experience

- Supported unified data collection, classification, distribution, can effectively eliminate the blind spot monitoring, real-time monitoring of the whole network status.

- Provided a completely graphical, multi-dimensional, consistent friendly user interface.

- Provided complete equipment working status monitoring.

- Fully compatible with big data deep mining, cache acceleration system, signal analysis system, national security network security monitoring system, operator intelligent pipeline DPI system, cloud application analysis system, information push system and other application requirements.
