Taiye-370-DTH fifth Generation semi-Hydraulic Downhole DTH-drill
Product Description
Taiye-370 DTH drilling rig is widely used in open-pit mines such as cement,metallurgy,coal mines,quarries,blasting hole drilling in railway,water conservancy,hydrpower and nationl defense construction projects,Its aperture hole size range is 90-178mm,which can be equipped with various types of air compressors to realize high pressure DTH drilling.
| Drill hole |
90-178mm |
| Turning torque |
3280N.m |
| Turning speed |
0-110Rpm |
| Lifting force |
20KN |
| Sliding frame swing |
Left 50°/Right 35° |
| Sliding frame pitching |
135° |
| Drilling boom swing |
Left/Right 45 |
| Drilling boom pitching |
horizontal 60°/19° |
| Grade ability |
35° |
| Engine Manufacturer |
YUCHAI Diesel etc |
| Rated power |
73.5/92 Kw |
| Dimension |
5750*2170*2300mm |
| Weight |
6800kg |
| Payment Terms: | Taiye-370-DTH fifth Generation semi-Hydraulic Downhole DTH-drill |
| |

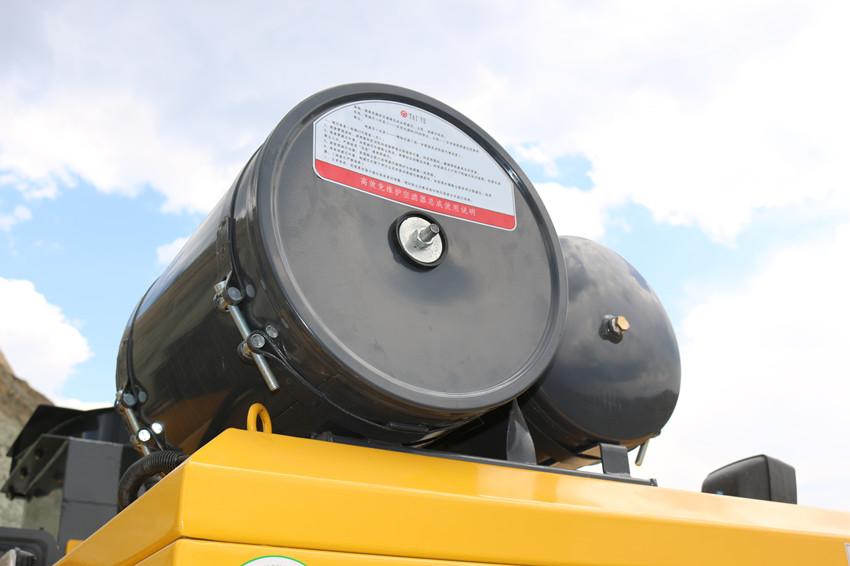

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
