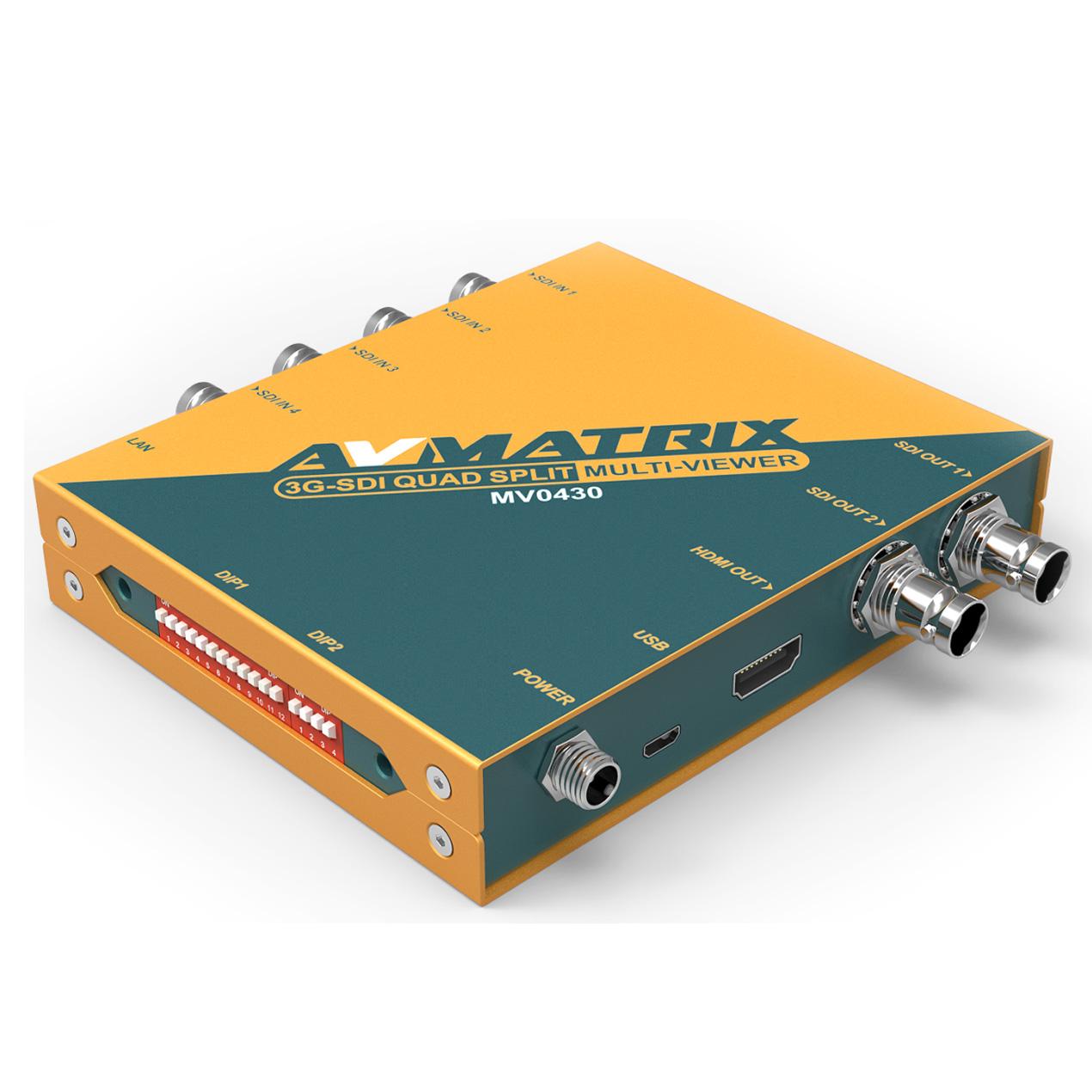

AVMATRIX 3G-SDI QUAD SPLIT MULTI-VIEWER

Model:MV0430
Brand:AVMATRIX
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Radio TV Equipment
Label:4CH SDI Multiviewer , SDI Multiviewer
Price: -
Min. Order:-
Inquire Now

Member Information

Detail

Product Description

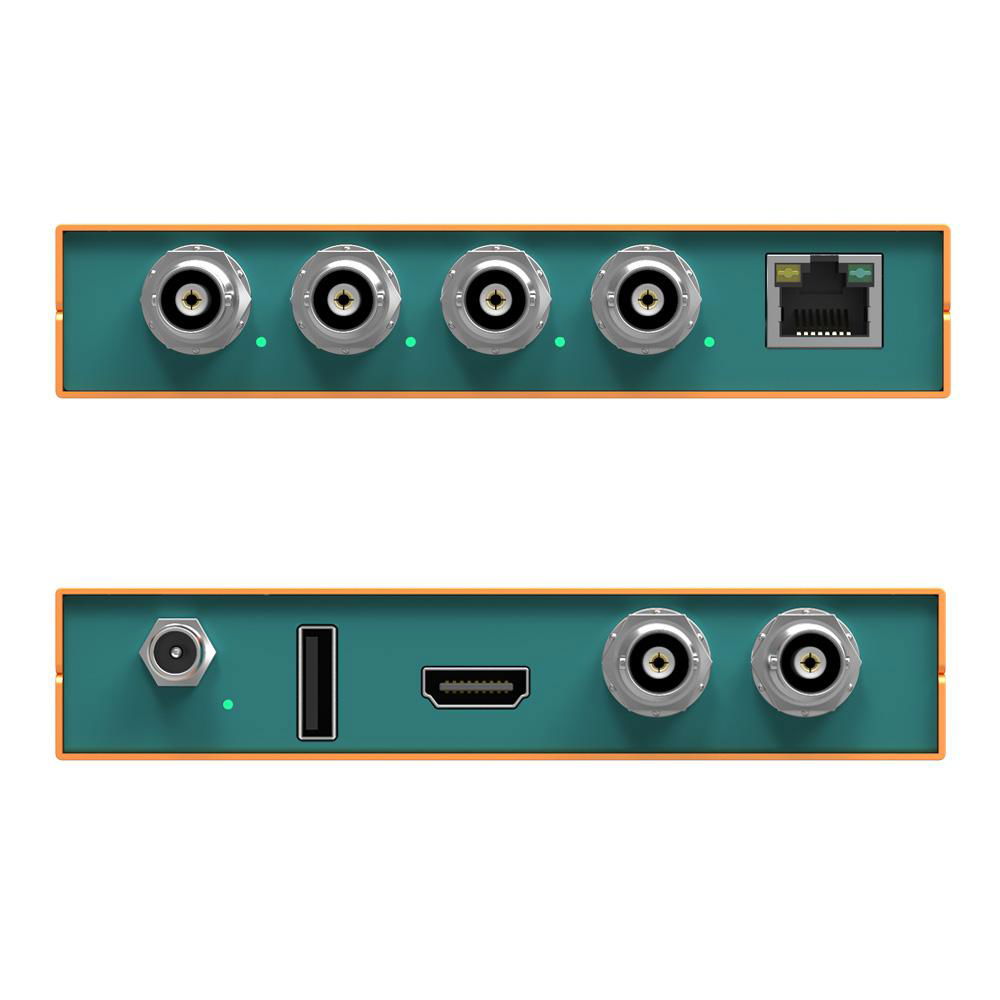

4×SD/HD/3G-SDI inputs with auto detection

2×SD/HD/3G-SDI and 1×HDMI outputs for multi-view

11 selectable SDI & HDMI output formats

16 preset layouts, both full-screen and multi-view mode

11 character UMD overlay, custom position and color

Audio level meter overlay, custom position

Control easily via the DIP switches

USB port for keyboard control

LAN port for control and firmware update

Threaded locking power connector

Detachable bracket design for wall mounting



1. 11 Output Formats Selectable

The MV0430 features in 4-channel 3G/HD/SD auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. 4 inputs can be shown simultaneously on the same display. From 720p25 to 1080p60, 11 signal output formats can be selected by users.



2. 16 Group Preset Layouts

The MV0430 provides 16 group preset layouts, including frequently-used modes like quad split, full screen, triple windows, PiP and PoP mode.



3. User-defined UMD and Audio Meter Overlay

Another nice feature of MV0430 is the user-friendly design,, for example, in each individual window, users can set 13 characters UMD overlay separately and adjust it's size and position freely. Similarly, the size and position of the 2–channel audio metering can also be user-defined.

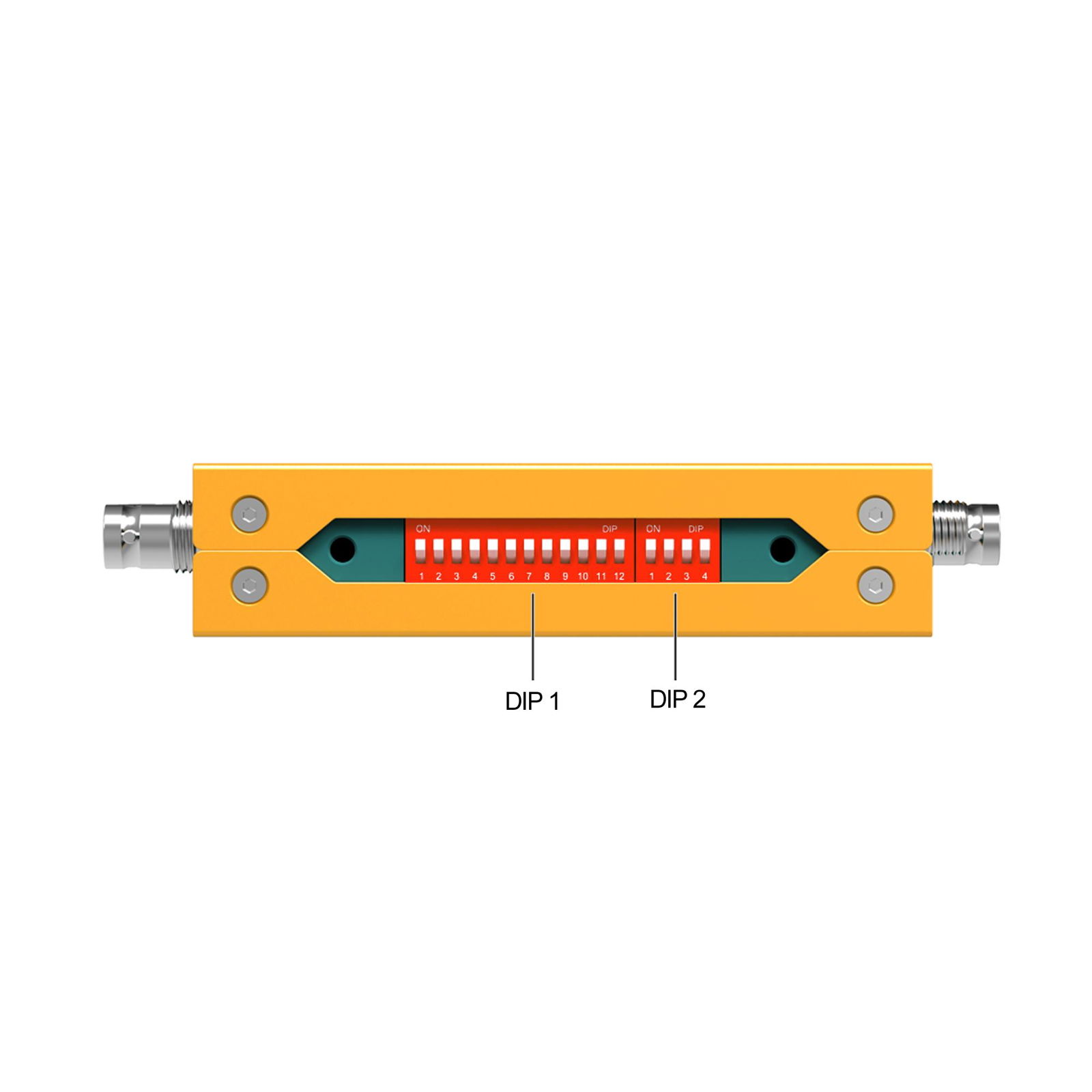

4. Easy Control over DIP Switches

Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via LAN. Besides, the latest firmware can be upgraded via LAN port.


Product Image

AVMATRIX 3G-SDI QUAD SPLIT MULTI-VIEWER 1
Img 1
AVMATRIX 3G-SDI QUAD SPLIT MULTI-VIEWER 2
Img 2
AVMATRIX 3G-SDI QUAD SPLIT MULTI-VIEWER 3
Img 3
AVMATRIX 3G-SDI QUAD SPLIT MULTI-VIEWER 4
Img 4
AVMATRIX 3G-SDI QUAD SPLIT MULTI-VIEWER 5
Img 5
AVMATRIX 3G-SDI QUAD SPLIT MULTI-VIEWER 6
Img 6
