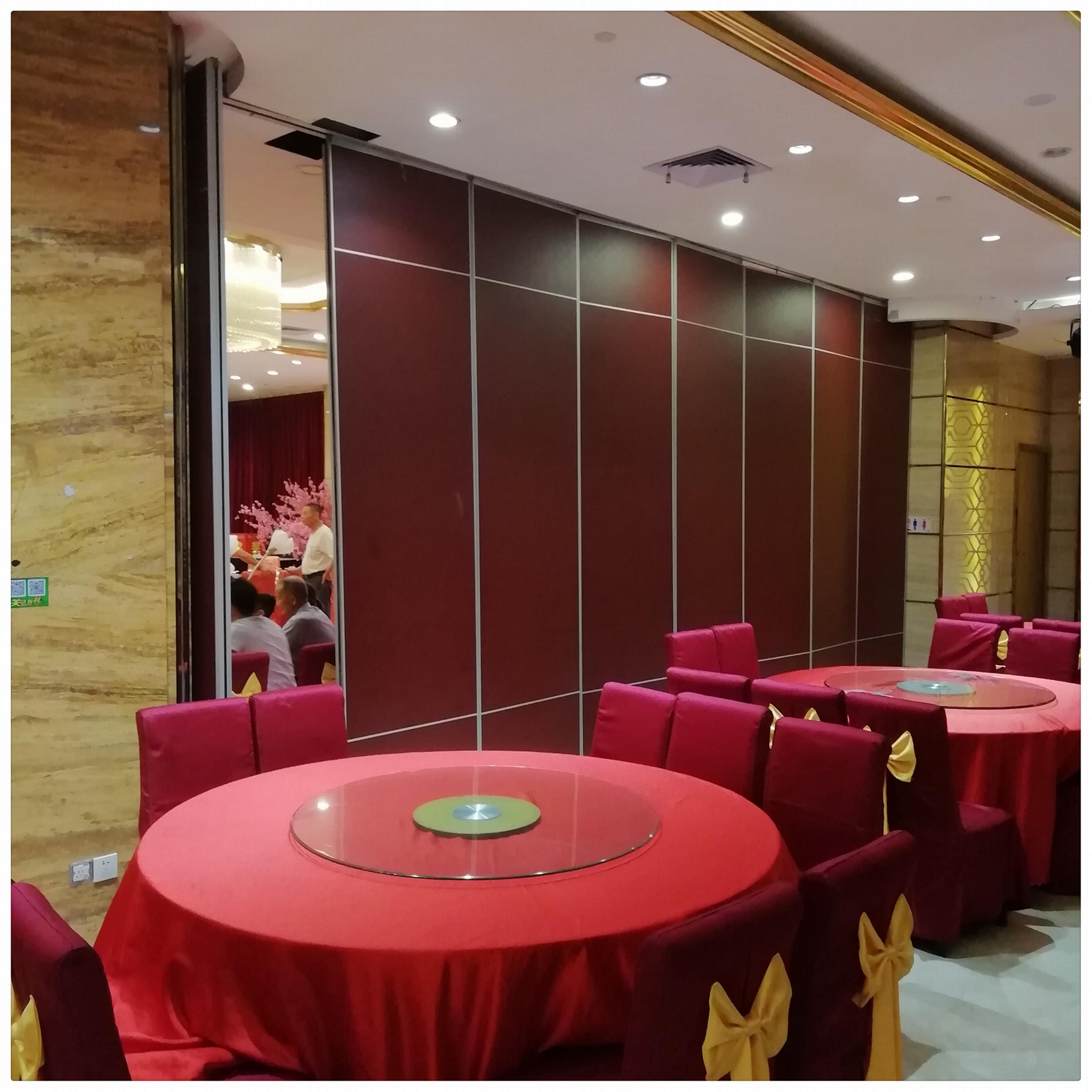

Painting Finishing 53dB Soundproof Movable Partition Wall For Hotel
Movable Partition Wall’ solution is to keep efficient open spaces by the use of movable walls. Let us help you find the best flexible solution for your environment and turn the room you have into the space you need.
Application
· Executive boardrooms
· Employee workspaces
· Reception areas
· Other interior locations
· Hotel
· Executive offices
· Managerial offices
· Administrative areas
· Conference rooms
· Training rooms
· Call Center
Features&Benefit
· Strong aluminium frame construction for demanding condition.
· Hinged panels or single panel for quick and easy operation.
· Wide range of surface finishes.
· Passdoor insert in panel enabling access to adjoining rooms.
· Parking one or both ends.
· Top hung and floor with Rubber seals achieving excellent soundproof effect.
We offer:
1. A full professional design service
2. Using top quality materials and components
3. Survey and installation guide and assistance
4. A fully experienced work team
5. Maintenance contracts- to ensure your valuable asset remains in full work order
General Description
|
Panel Width: |
Each panel 600mm-1200mm. |
|
Track: |
Aluminum Track |
|
Roller on panel: |
Single or double roller. |
|
Panel Frames: |
Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
|
Top&bottm seals: |
Top and bottom pressure retractable seals ensure effortless moved and locked. |
|
Module: |
700mm - 1200mm maximum. |
|
Panel stacking: |
Numerous panel stacking options for complete flexibility. |
|
Panel face: |
MDF,Plywood, woven fabric, Leather,Faux wood veneer, Melamine,, etc. |
|
Finishes: |
Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. |
Product Selector
|
TYPE |
865 |
880 |
8100 |
|
Panel suspension |
Top hung only |
Top hung only |
Top hung only |
|
Track system |
Single or twin point |
Single or twin point |
Single or twin point |
|
Panel thickness |
65mm |
88mm |
100mm |
|
Panel height |
Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept |
Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional |
|
|
Max height |
4000mm with heavy duty track |
6000mm with heavy duty track |
18000mm with heavy duty track or steel track |
|
Panel width |
600-1200mm |
600-1200mm |
600-1200mm |
|
Frame construction |
Aluminium/steel |
Aluminium/steel |
Aluminium/steel |
|
Face material |
12mm |
12/15/18mm |
12/15/18mm |
|
Fire safety |
optional Class I or O |
optional Class I or O |
optional Class I or O |
|
Vertical profiles |
Aluminium,anodised with sealing profiles,painted-optional |
Aluminium,anodised with sealing profiles,painted-optional |
Aluminium,anodised with sealing profiles,painted-optional |
|
Retractable seals |
Aluminium,black with double rubber seals |
Aluminium,black with double rubber seals |
Aluminium,black with double rubber seals |
|
Operation of seals |
Manual,with supplied operating handle |
Manual,with supplied operating handle |
Manual,with supplied operating handle |
|
Locking |
Optional lock to pass doors |
Optional lock to pass doors |
Optional lock to pass doors |
|
Pass Doors |
Single open in oanel or double open in two panel |
Single open in oanel or double open in two panel |
Single open in oanel or double open in two panel |
|
Sound insulation |
40,44,47,50dB Rw |
40,44,47,50,53dB Rw |
40,44,47,50,53,58dB Rw |
|
Weight |
Approx 33-40kg/sq M |
Approx 43-50kg/sq M |
Approx 63-70kg/sq M |
