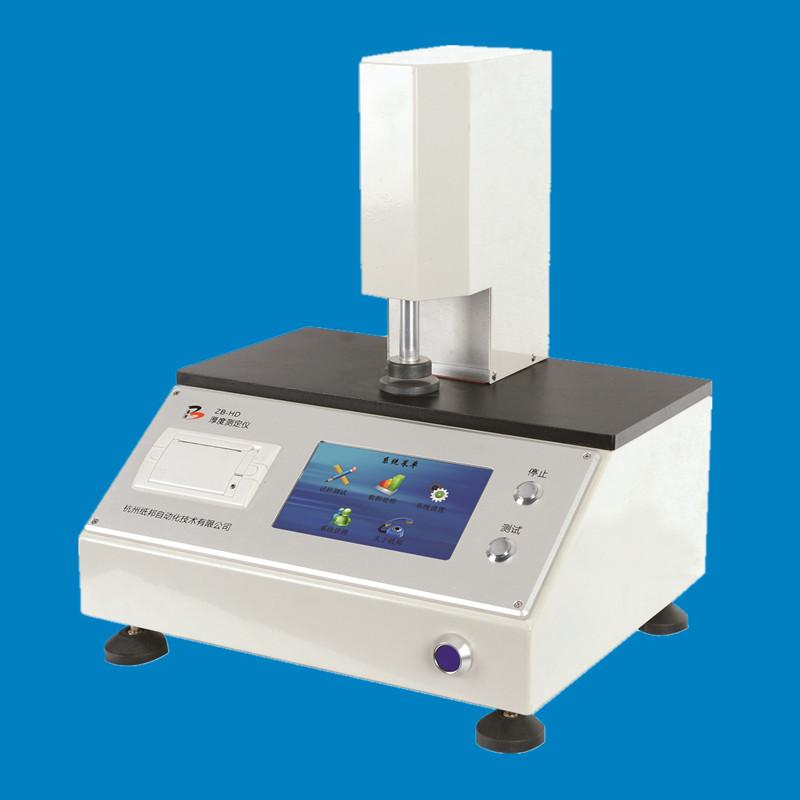

ZB-HD Digital paper thickness tester
Introduction
ZB-HD Digital paper thickness tester is a special instrument for measuring the thickness of paper and paperboard. It adopts high-precision displacement sensor and has the unique tightness calculation function. It has the advantages of advanced technology, complete functions, reliable performance, simple operation and so on.
Main features
1. High precision
Use high - precision sensor to make the resolution up to 0.001mm.
2. Good stability
3. Easy to use and operate
Large-screen color touch screen display, user-friendly man-machine interface operation, fully automatic test, with test data statistics processing function, micro printer output.
4. Convenient measurement
The calculation function of compactness can be realized by placing quantification in parameter setting.
Main technical parameters
|
Measuring range |
（0~4）mm |
|
Division value |
0.001mm |
|
Indication error |
±0.0025mm or ±0.5％ |
|
Indication variability |
≤0.0025mm or ≤0.5％ |
|
Measuring parallelism |
≤0.002mm |
|
Touching area |
（200±5）mm2 Touching diameter(φ16±0.5) mm |
|
Touching pressure |
（100±10）kPa |
|
Down speed |
≤3mm/s |
|
Dimension（length * width * height） |
400*360*520 mm |
|
Weight |
About 25kg |
Standards
ISO 534 paper and board - a method for the determination of thickness and lamination tightness or single layer tightness
GB/T 451.3 Measurement of paper and board thickness
