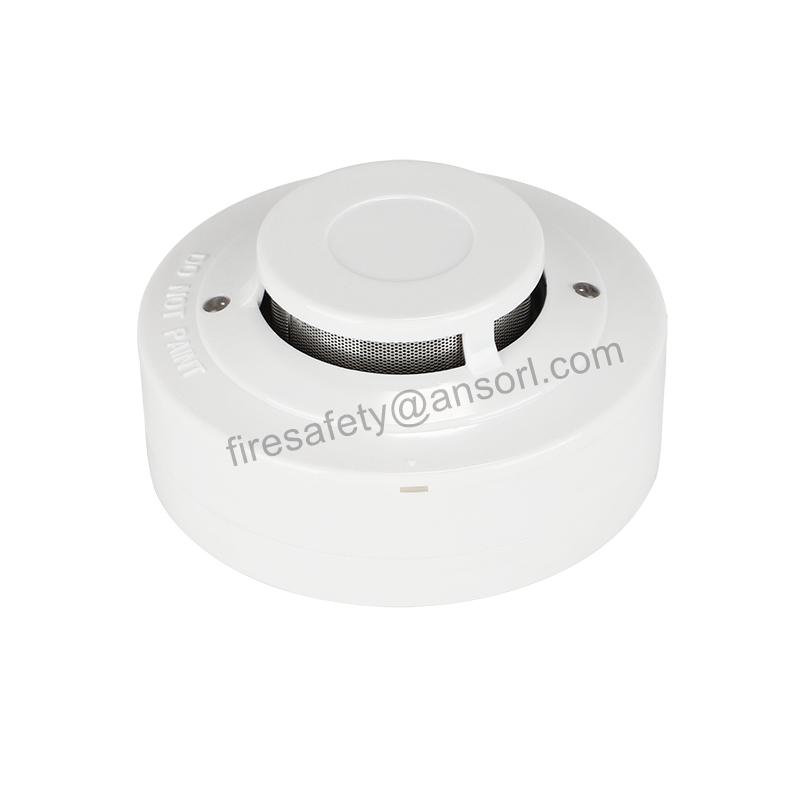

9 to 28v optical smoke sensor detector

Model:AS-SD102
Brand:Ansorl
Origin:Made In China
Category:Security & Protection / Alarm
Label:smoke sensor detecto , smoke detector senso , smoke sensor
Price: -
Min. Order:10 pc
Inquire Now

Member Information

Detail

Ansorl Technology Ltd.

Free MemberGuang Dong - China
Last Online:19 Dec, 2019

Product Description



9 to 28v optical smoke sensor detector



Description:

The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber.

This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

Two LEDs on each detector provide local 360° visible alarm indication.

They flash every six seconds indicating that power is applied and the detector is working properly.

The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit.

The alarm can be reset only by a momentary power interruption.

The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.



Parameters:

Product Name

9 to 28v optical smoke sensor detector

Model No.

AS-SD102

Type

Conventional optical

Operating Voltage

9-28VDC

Standby Current

≤60uA

Alarm Current

≤30mA

Indicator

Yes

Wiring

2 wires

Standard

EN54-7

Matched Host

AS-BFP, AS-AFP series panel

Application

Office, factory, warehouse, apartment, hotel, bank, supermarket, shopping mall, school, hospital etc.



Related Models:

* AS-SHD109: Smoke and heat multi detector

* AS-SD202: Conventional smoke detector with relay output

* AS-HD105: Conventional heat detector

* AS-CGD501: Conventional Combusible gas detector

* AS-IRBD: Infrared reflective beam smoke detector

* AS-E301-UV: Explosion proof ultrovialet flame detector

* AS-SSD101: 9V Battery operated smoke detector
