Drip Tape with Continuous Labyrinth t tape drip irrigation

Model:-
Brand:PLENTIRAIN
Origin:Made In China
Category:Agriculture & Foods / Gardening / Garden Tools & Equipment
Label: -
Price: -
Min. Order:-
Inquire Now

Product Description

Drip Tape with Continuous Labyrinth  t tape drip irrigation  t tape drip tape manufacturer

Product Description

Dripline Features:

1, Lower production cost provides higher cost effectiveness.

2, Emission Uniformity(EU)0.42-0.44 and CV≤5%.

3, High tensile strength and anti-ultraviolet.

4, Highly resistant to pl ing.



t tape drip irrigation Applications:

1, Greenhouse: Cucumber, Strawberry, Tomato, Watermelon.

2, Land Cultivation: Tobacco,Potato,Pepper,Onion.



Specifications:

Product   Code

Diameter

Wall Thickness

 Spacing

Flow Rate (L/H)

Working   Pressure
    (Bar)

Roll Length

PRDT0216015100

16mm

0.15mm

10cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216015150

16mm

0.15mm

15cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216015200

16mm

0.15mm

20cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216015300

16mm

0.15mm

30cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216018100

16mm

0.18mm

10cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216018150

16mm

0.18mm

15cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216018200

16mm

0.18mm

20cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216018300

16mm

0.18mm

30cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216020100

16mm

0.20mm

10cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216020150

16mm

0.20mm

15cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216020200

16mm

0.20mm

20cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216020300

16mm

0.20mm

30cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216025100

16mm

0.25mm

10cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216025200

16mm

0.25mm

20cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216025300

16mm

0.25mm

30cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m/2000m

PRDT0216030100

16mm

0.30mm

10cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1500m

PRDT0216030200

16mm

0.30mm

20cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1500m

PRDT0216030300

16mm

0.30mm

30cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1500m

PRDT0216040100

16mm

0.40mm

10cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m

PRDT0216040200

16mm

0.40mm

20cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m

PRDT0216040300

16mm

0.40mm

30cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m

PRDT0216050100

16mm

0.50mm

10cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m

PRDT0216050200

16mm

0.50mm

20cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m

PRDT0216050300

16mm

0.50mm

30cm

0.85,1.2,   1.5, 2.0, 2.5, 3.0

1

1000m



Remarks:

l  Production standard: ISO 9261:2004 (equal to Chinese standard GB/T19812.3-2017)

l  Other specification can be customized.



The main products of PLENTIRAIN is drip irrigation system products, such as drip tape with continuous labyrinth(A-TAPE), dripline with flat dripper(I-DROP), dripline with cylindrical dripper(D-LINE), dripline with flat pressure compensating dripper(I-DROP PC), online dripper, arrow dripper, drip irrigation accessories, main line, screen & disc filter, venturi fertilizer injector, and electric valve. We also supply mini sprinkler irrigation, such as micro spray tape, standing-up type micro sprinkler and hang-down type micro sprinkler.

Plentirain irrigation products are suitable for vegetable farm, row crop farm, vineyard, orchard, and greenhouse etc.

If you want to know more, please click here.

https://www.plentirain.com/

More information:

https://www.moreinformationblog.com

https://www.package-machines.com

https://www.bestabmachine.us

https://www.hetelectronics.in

https://www.esielectronics.com

https://www.bachematz.com

https://www.llivepc.com

https://www.minixz.com

https://www.jsmindgo.com

https://www.b2blinkedinbootcamp.com


Product Image

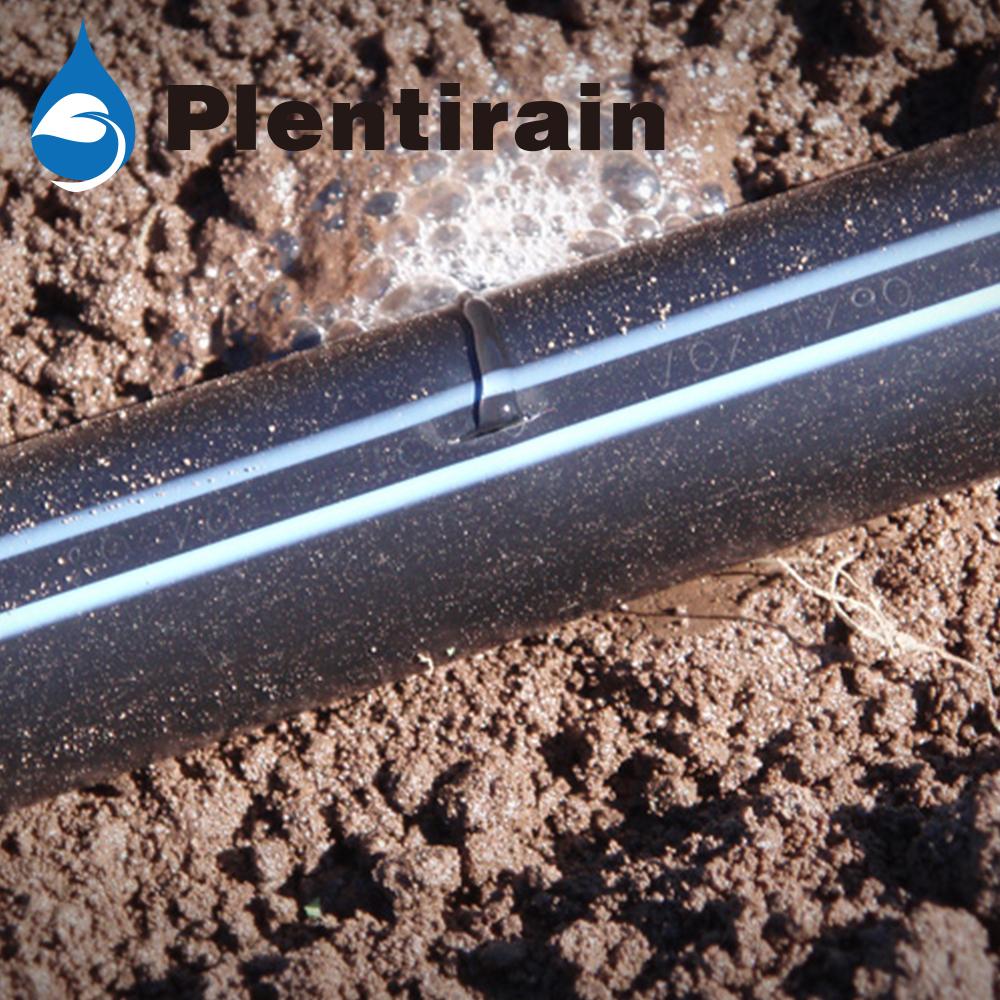

Drip Tape with Continuous Labyrinth  t tape drip irrigation  1
Img 1

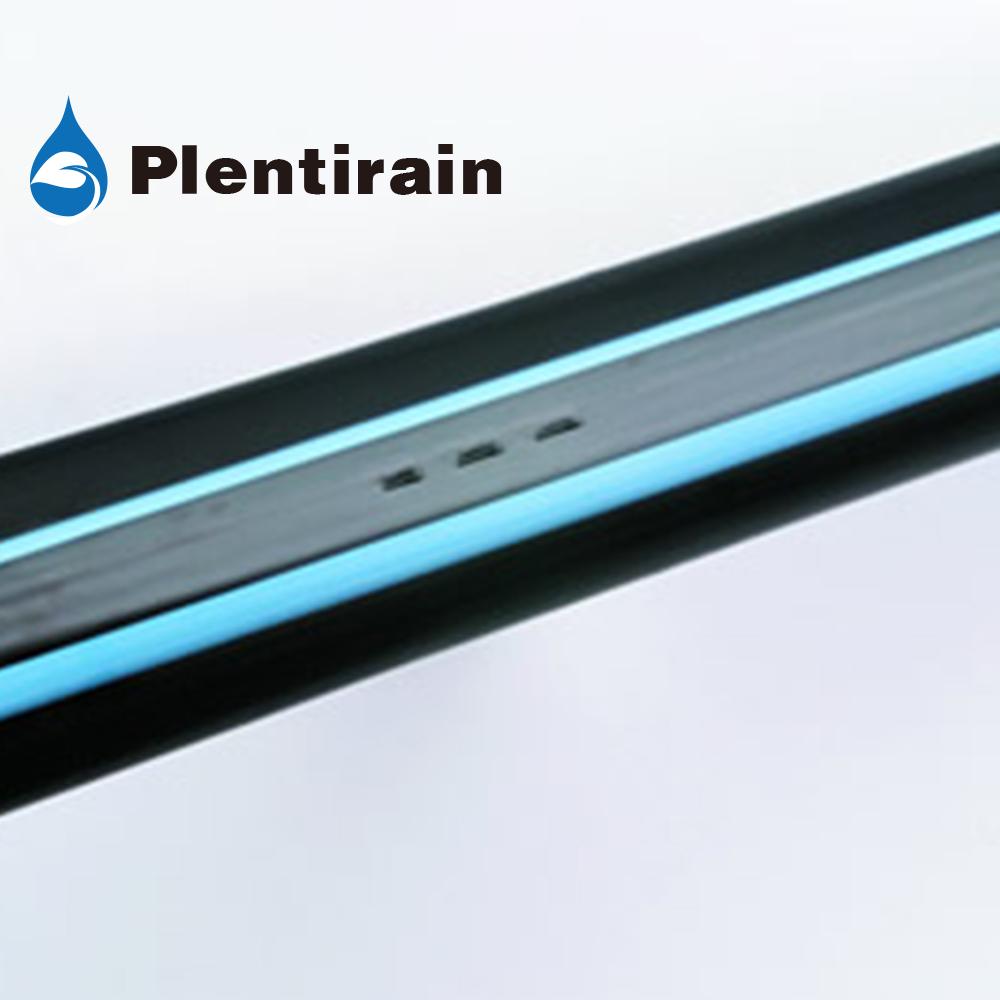

Drip Tape with Continuous Labyrinth  t tape drip irrigation  2
Img 2

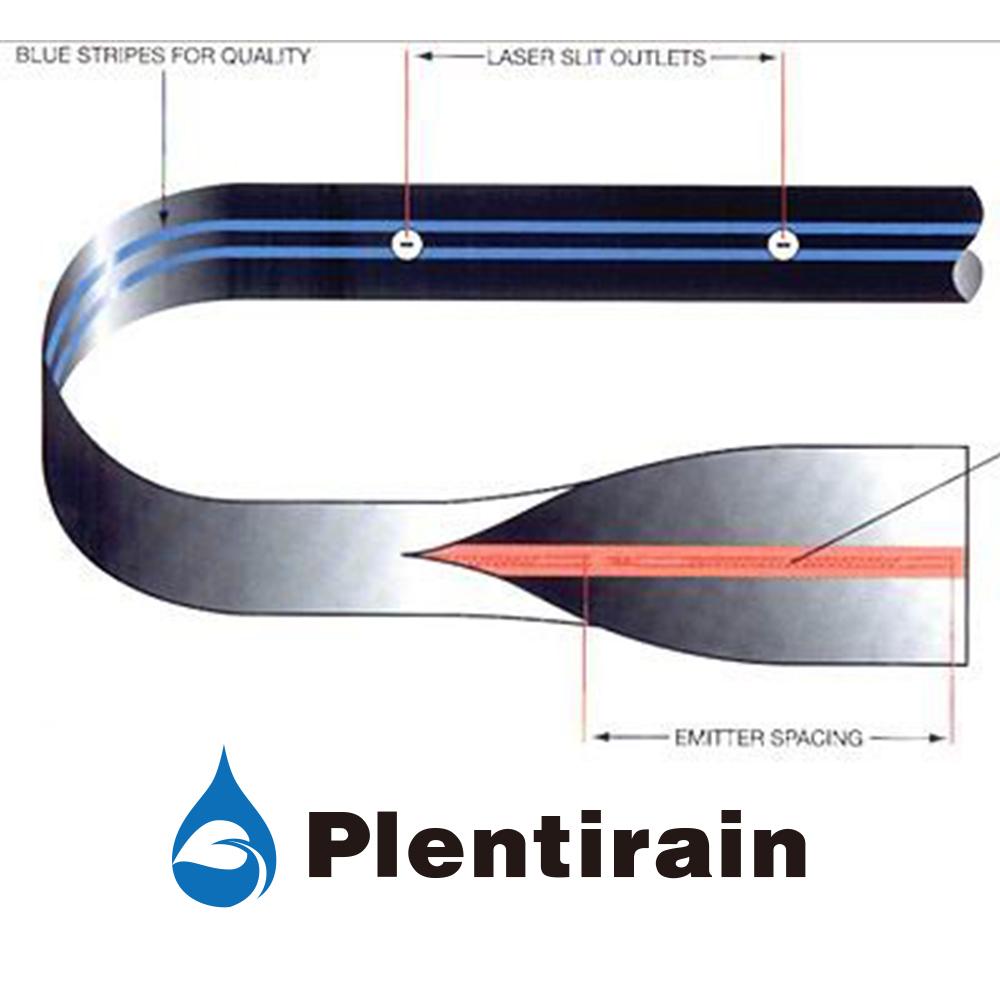

Drip Tape with Continuous Labyrinth  t tape drip irrigation  3
