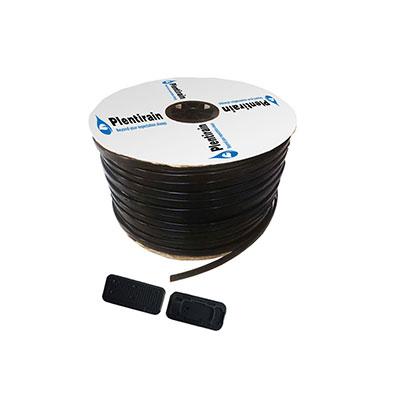

Dripline with flat pressure compensating dripper Farm drip irrigation Drip irrigation system agriculture
Advantage:

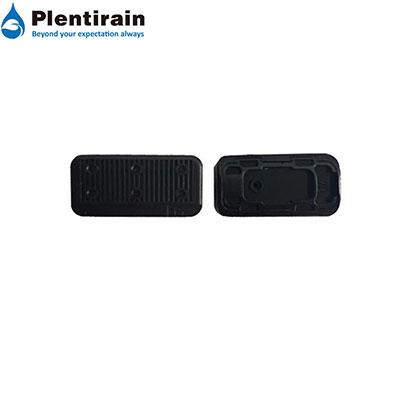

● PC100 Dripline produced by extrusion with PC emitter inside directly which save the time for installation
● With new type of labyrinth passages,scientific structure, and good quality of silicon diaphragm for high efficient pressure compensatting.
● Self-flushing system with wide filtration area of inlet improves resistance to clogging for long life.
● Emitter has the function of Anti-siphpon which can prevent the small varia into the channel of emitter,so this PC driptape can be used for SDI.
● With superior CV and excellent uniformity for long length of laying run.
● Produced by high quality material and advanced technology,better for anti-corrosion and anti-ageing.
labyrinth passages Dripline Application:
● Working pressure:0.5-3.5Bar.
● Filtration Required:Above 120 mesh.
● Lay in line and levelly,all the holes of emitter must be upward.
● Suitable for the plaing on hills and mountains,or Sub-surface multi seasonal row crop.
Specification for PC100 Dripline:
|
Product Code |
.
Diameter |
Wall Thickness |
Emitter Spacing |
Flow Rate (L/H) |
Working Pressure (Bar) |
Roll Length |
Measurement per roll (cm) |
Gross weight/roll (kg) |
Rolls qty for 1x20feet container |
Rolls qty for 1x40HQ container |
|
|
PRDT0416040200 |
16mm |
0.4mm |
15mil |
20cm |
1.6L/H or 2.0L/H |
0.5-3.0 |
500m |
45*45*30 |
11.32 |
455 |
1040 |
|
PRDT0416040300 |
30cm |
0.5-3.0 |
10.68 |
||||||||
|
PRDT0416040400 |
40cm |
0.5-3.0 |
10.38 |
||||||||
|
PRDT0116040500 |
50cm |
0.5-3.0 |
10.2 |
||||||||
|
PRDT0416060300 |
16mm |
0.6mm |
24mil |
30cm |
0.5-3.0 |
500m |
80*80*32 |
15.4 |
150 |
341 |
|
|
PRDT0416060400 |
40cm |
0.5-3.0 |
15.1 |
||||||||
|
PRDT0416060500 |
50cm |
0.5-3.0 |
14.9 |
||||||||
|
PRDT04160601000 |
100cm |
0.5-3.0 |
14.5 |
||||||||
|
PRDT0416080200 |
16mm |
0.8mm |
32mil |
20cm |
0.5-3.5 |
500m |
88*88*32 |
20.7 |
121 |
302 |
|
|
PRDT0416080300 |
30cm |
0.5-3.5 |
20.1 |
||||||||
|
PRDT0416080400 |
40cm |
0.5-3.5 |
19.8 |
||||||||
|
PRDT0416080500 |
50cm |
0.5-3.5 |
19.6 |
||||||||
|
PRDT0416100200 |
16mm |
1.0mm |
39mil |
20cm |
0.5-3.5 |
400m |
93*93*32 |
20.4 |
108 |
270 |
|
|
PRDT0416100300 |
30cm |
0.5-3.5 |
19.8 |
||||||||
|
PRDT0416100400 |
40cm |
0.5-3.5 |
19.6 |
||||||||
|
PRDT0416100500 |
50cm |
0.5-3.5 |
19.1 |
||||||||
Production standard: ISO 9261:2004 (equal to Chinese standard GB/T19812.2-2017)
China drip irrigation Maximum Length of Run:
|
Flow Rate:1.6L/H Flat Terrain Flowing Variation 10% |
|||||
|
Inlet Pressure(Bar) |
Spacing Between Emitters(cm)VS Length Run(m) |
||||
|
20 |
30 |
40 |
50 |
100 |
|
|
1.0 |
60 |
90 |
120 |
140 |
240 |
|
1.5 |
80 |
110 |
140 |
170 |
300 |
|
2.0 |
90 |
130 |
160 |
195 |
330 |
|
2.5 |
100 |
140 |
175 |
215 |
375 |
|
3.0 |
110 |
150 |
190 |
230 |
410 |
|
Flow Rate:2.0L/H Flat Terrain Flowing Variation 10% |
|||||
|
Inlet Pressure(Bar) |
Spacing Between Emitters(cm)VSLength Run(m) |
||||
|
20 |
30 |
40 |
50 |
100 |
|
|
1.0 |
55 |
80 |
100 |
120 |
200 |
|
1.5 |
70 |
95 |
125 |
150 |
250 |
|
2.0 |
80 |
110 |
140 |
170 |
285 |
|
2.5 |
85 |
120 |
155 |
185 |
320 |
|
3.0 |
90 |
130 |
165 |
200 |
345 |
The main products of PLENTIRAIN is drip irrigation system products, such as drip tape with continuous labyrinth(A-TAPE), dripline with flat dripper(I-DROP), dripline with cylindrical dripper(D-LINE), dripline with flat pressure compensating dripper(I-DROP PC), online dripper, arrow dripper, drip irrigation accessories, main line, screen & disc filter, venturi fertilizer injector, and electric valve. We also supply mini sprinkler irrigation, such as micro spray tape, standing-up type micro sprinkler and hang-down type micro sprinkler.
Plentirain irrigation products are suitable for vegetable farm, row crop farm, vineyard, orchard, and greenhouse etc.
