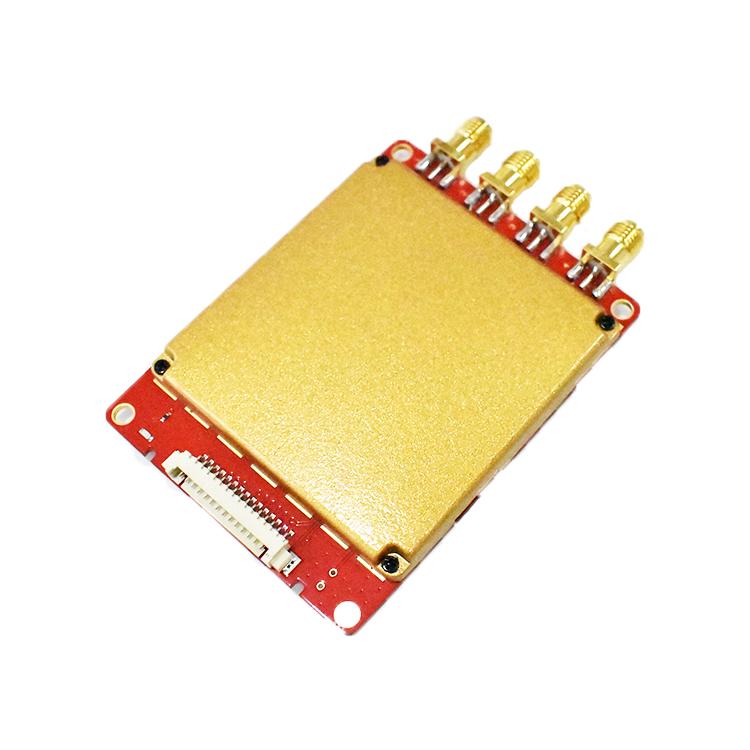

| Model: | RL-RM64 |
|---|---|
| Brand: | Reliablerfid |
| Origin: | Made In China |
| Category: | Security & Protection / Access Control System |
| Label: | UHF RFID Module , rfid reader module , UHF R2000 reader |
| Price: |
US $145
/ pc
|
| Min. Order: | 1 pc |
| Last Online:16 Feb, 2020 |
*Size:77(L)*51(W)*8(H)mm
*Weight:0.05kg
*Protocol:ISO18000-6C(EPC Class1 Gen2)/ISO18000-6B
*Communication port:TTL Uart
*Frequency:840-960MHz(Can be customized)
*Max Read Speed:>700 tags/Second
*1.With Impinj R2000 chip and ARM embedded processing chip to achieve high speed reading ;
*2.Support 4 SMA Port;
*3.Max Power 33dbm,Can be adjustable;
*4.Stable, External radiator, support firmware upgrade;
*5.Rapid read and write processing rate;
*6.Application: Logistic, personal identification, access control, security system
|
Model Number |
RM-64 |
||
|
Performance Index |
|||
|
Frequency |
840-960MHz(Can be adjustable) |
||
|
Frequency Modulation |
FHSS or Fixed Frequency, can be adjust by software |
||
|
RF Output Power |
0-33dBm 50ohm load |
||
|
Output power accuracy |
+/- 1dB |
||
|
Output power flatness |
+/- 0.2dB |
||
|
Antenna Port |
4SMA Port |
||
|
Communication interface |
TTL Uart Port |
||
|
Communication rate |
Serial port 9600～115200bps |
||
|
Firmware upgrade |
Can be update online |
||
|
Input/output (GPIO) |
4 GPIO（2input 2output） |
||
|
Tag RSSI |
Support |
||
|
Antenna connect protection |
Support |
||
|
Temperature Monitor |
Support |
||
|
Tag Operation performance |
|||
|
Read distance |
With 8dbi Antenna,15-30m(depend on tag) |
||
|
Protocol |
ISO18000-6C(EPC Class1 Gen2)/ ISO18000-6B |
||
|
Max Receive sensitivity |
-85dBm; Max return loss 10dBm |
||
|
Read Tag Peak Speed |
>700pcs/second |
||
|
Tag Cache |
1000pcs Tag, @ 96 bit EPC |
||
|
Electrical and Mechanical Performance |
|||
|
Working Voltage |
3.7V-5 V |
||
|
Standby Current |
<50mA (EN Feet High Level) |
||
|
Sleep State Current |
<100uA (EN Feet Low level) |
||
|
Work Current |
1.2A +/-10% |
||
|
Weight |
0.05KG |
||
|
Humidity |
5% to 95%, Non-condensation |
||
|
Cooling |
External radiator, Air Cooling |
||
|
Work Temperature |
-20ºC to 55ºC |
||
|
Storage Temperature |
-20°C to 85°C |
||
|
General I/O Interface |
|||
|
No. |
symbol |
description |
|
|
1 |
GND |
Grounding at the same time |
|
|
2 |
GND |
Grounding at the same time |
|
|
3 |
3.7V – 5V DC |
Connect power at the same time |
|
|
4 |
3.7V – 5V DC |
Connect power at the same time |
|
|
5 |
GPIO 3 |
Output |
|
|
6 |
GPIO 4 |
Output |
|
|
7 |
GPIO 1 |
Input |
|
|
8 |
Buzzer |
Driven ,can output current > 50mA |
|
|
9 |
UART_RXD |
TTL Level |
|
|
10 |
UART_TXD |
TTL Level |
|
|
11 |
USB_DM |
Only for test |
|
|
12 |
USB_DP |
Only for test |
|
|
13 |
GPIO 2 |
Input |
|
|
14 |
EN |
High Level enable |
|
|
15 |
GPIO 5 |
RS-485 Direction control |
|
|
Antenna Port (SMA Male) |
|||
|
No. |
symbol |
description |
|
|
1 |
ANT1 |
Antenna1 |
|
|
2 |
ANT2 |
Antenna2 |
|
|
3 |
ANT3 |
Antenna3 |
|
|
4 |
ANT4 |
Antenna4 |
|
