| Model: | - |
|---|---|
| Brand: | bosj |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Other Machine Hardware |
| Label: | slip roll former , slip roll forming ma |
| Price: |
US $10000
/ Set
|
| Min. Order: | 1 Set |
| Last Online:12 Mar, 2020 |
Width of material sheet:≤200 mm
Thickness of material sheet: 2.0~2.5 mm
Power: 380V, 50Hz, 3 phase
Forming Speed with punching holes: 18m/min
Forming speed without punching holes: 30m/min
Tolerance of length: ±1.5mm/10m
Total Power:41KW
Production Process
De-coiler---Leveler---Servo-fedder---Punching---Forming---Collection
Technical parameter
|
De-coiler |
Width of material sheet |
≤250 mm |
|
Thickness of material sheet |
≤2.5mm |
|
|
Parameter |
ID: 508mm OD: ф480-520 mm |
|
|
Loading |
5T |
|
|
Leveler |
Working roller |
Five rollers type |
|
Motor |
380V 5.5KW 4 grade |
|
|
NCF300 Servo feeder |
Function |
Material feeding |
|
Motor |
380V 3KW 4grade |
|
|
Punching press |
Structure |
JF21-80 |
|
Punching die |
1set |
|
|
Motor |
380V 2.5KW 4grade |
|
|
Forming machine |
Forming station |
24station |
|
Forming frame |
Driving by chain
|
|
|
Chain wheel |
45# steel, black coating, 18 gears, 24A double rows chain |
|
|
Material of the roller |
GCr15, quenching treatment HRC58-62, prolonging the usage |
|
|
Cutting machine |
Structure |
Hydraulic cutting |
|
Cutting blade |
SKD 11 |

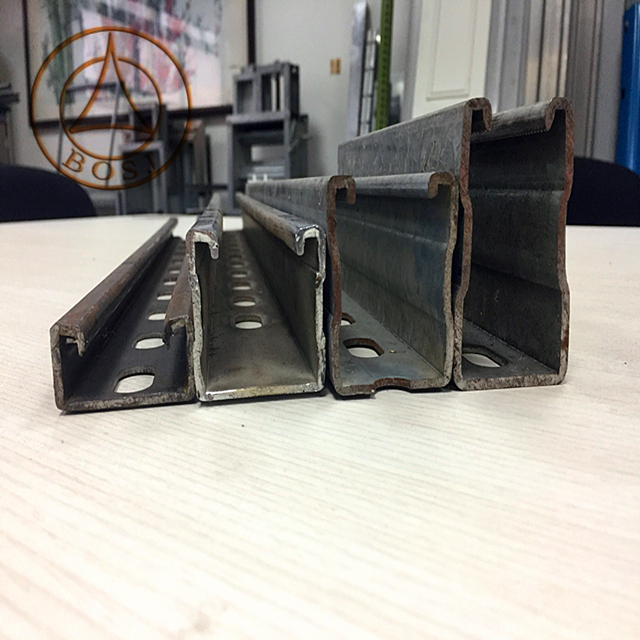

Profile drawings
BOSJ established in 2004, As a leading producer of many types of roll forming machines in China, BOSJ has won a worldwide reputation in this field. Our china roll forming machine have broad markets in Southeast Asia, India, North and South America, Western Asia, Russia, and Australia.
| Payment Terms: | T/T, L/C |
|---|---|
